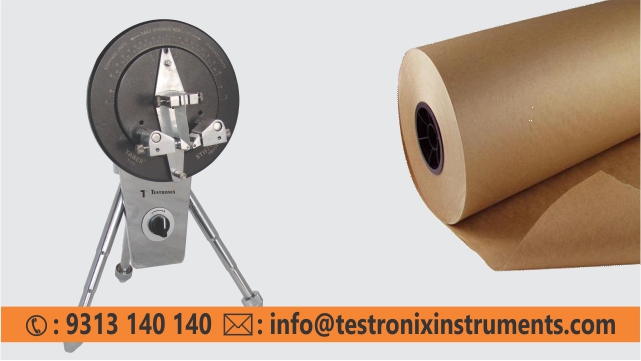

    Stiffness Tester for Paper

    Responsive image

    Stiffness Tester for Paper

    Stiffness Tester is a consistent tool useful to measure stiffness or flexural rigidity of paper and paper board.

    Stiffness Tester is used to determine the resistance of paper and paper board to bending.

    Stiffness tester is a two directional pendulum type system. Force is applied to the lower end of the specimen by a pair of rollers attached to the driving disc.

    The resulting torque tilts the pendulum from its vertical position and the reading is shown by the pendulum.

    The economic value of paperboard highly depends upon its bending resistance or stiffness.This is a Taber Type Instrument.The specimen is moved in left and right direction as per Taber guideline.

    Stiffness Tester is designed as per standards TAPPI –T489 OM-08.

    • High Quality rugged structure with corrosion resistant main body
    • Taber Unit scale to measure the Stiffness
    • Light weight and resilient
    • Pendulum system for frictionless movement
    • Fast Guiding Mechanism with pendulum system
    • Single handed hassle free operation
    • Highly accurate test results
    • Ratchet and Fat clamping fixtures for test Specimen

    Key Specifications:-

    • Weights for Pendulum: 500, 1000, 2000, 3000, 5000 SU
    • Weight of Stud: 10 ±0.001 gm
    • Sample Size: 70 ±1 mm x 38.1 ±0.3 mm
    • Unit Scale range: 0 -100
    • Angle: 7.5º, 15º
    • Motor: 2 RPM
    • Power: 220V, 50Hz, Single Phase

    HIGHLIGHTS:-

    • Friction of Pandulam: High procession Bearing
    • Clamps: 2 (Ratchet type and Flat type)
    • Legs Telescopic: legs
    • Material of Main Body: Mild Steel / Aluminum
    • Dimensions: 300x320x440mm
    • Finish: Combination finish & Bright Chrome-palting

    Stiffness Tester is a two directional pendulum type system. Force is applied to the lower end of the specimen by a pair of rollers attached to the driving disc. The resulting torque tilts the pendulum from its vertical position and the reading is shown by the pendulum. Friction of Pandulam High procession Bearing Finish Combination finish & Bright Chrome-plating


    High Quality rugged structure with corrosion resistant main body

    Highly accurate test results with consistent tools & technology.
