Bursting Strength Tester Digital




Availability - In Stock (Quick Delivery)

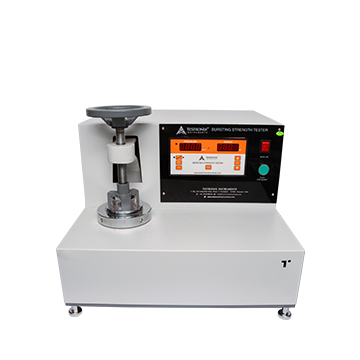

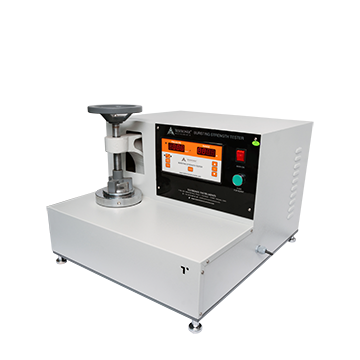

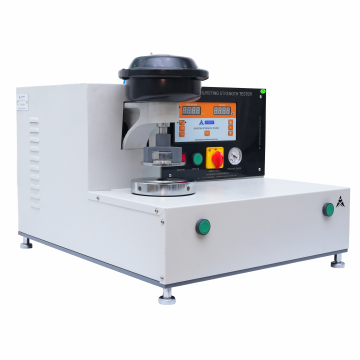

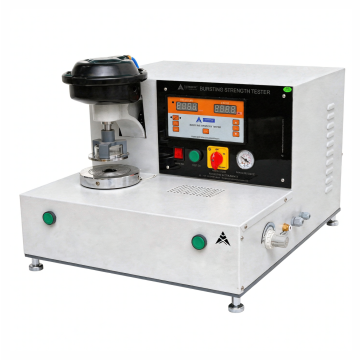

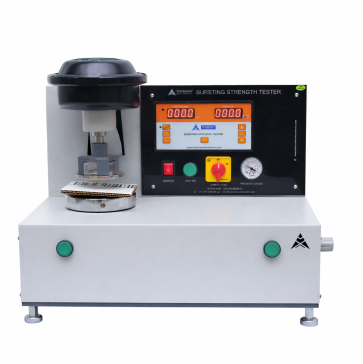

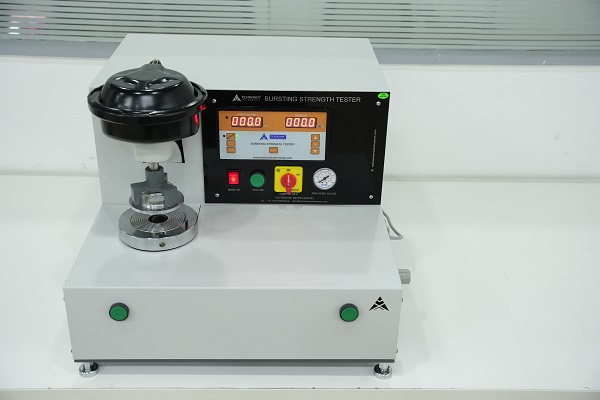

Bursting Strength Tester Digital

4.7 of 5

Model No: TX-BST 200

Bursting Strength Tester digital model is a very accurate instrument for the measurement of bursting strength of corrugated boxes and paper by manufacturers and suppliers. It has a two in one feature of calculating bursting factor of both paper and corrugated boxes under one single head. This instrument provides the user with accurate values and is very successful in terms of precision and qual


Need more information or have a question?

Contact Us

Bursting Strength Tester digital model is a very accurate instrument for the measurement of bursting strength of corrugated boxes and paper by manufacturers and suppliers. It has a two in one feature of calculating bursting factor of both paper and corrugated boxes under one single head. This instrument provides the user with accurate values and is very successful in terms of precision and quality.



This instrument adheres to all industry standards and has a digital LED display. It has a special feature of rapid result transmission. The diagram of this instrument is lab grade which further enhances the precision. Bursting strength of test specimen is expressed in terms of Kg/cm².



The bursting factor can be calculated by the following formula



Bursting factor = bursting strength / Grammage

Working Principle of Bursting Strength Tester

The working principle of the Bursting Strength Tester Digital is based on the hydrostatic pressure mechanism. The instrument consists of two clamps for the positioning of the specimen. The sample is placed between the clamps and firmly clamped to ensure accurate results. Now, the machine forces pressure onto the specimen with the help of the neoprene rubber situated where the specimen is placed. The neoprene rubber exerts pressure in a diaphragm motion due to the presence of glycerine beneath the rubber acting as a medium. Once the specimen bursts, the highest bursting value is recorded and indicated on the digital meter attached to the machinery.

Applications:

•    Paper boards
•    Corrugated boards and boxes
•    Industrial fabric and solid fiber boards
•    Filter cloth plastic films
•    Foils
•    Sheets



Test Standards: ASTM D 3786-01, ASTM D 3786 – 80A, ISO 1060 PART-1 1987.



Available models: Bursting strength tester Analogue , Bursting strength tester Pneumatic model, Bursting strength tester computerized model with thermal printer connectivity



Testronix Instruments is a leading manufacturer and supplier of Bursting Strength Testers in India. For the best price, contact us for a quote or call now!


    • Push Button Operation
    • Microprocessor based display for accurate test results
    • Peak Hold facility for keeping maximum value of test result in memory
    • Memory to hold up to 9 test reading
    • Highly accurate test results under multidirectional Force
    • Digital screen for accurate results
    • Strong Gripping clamps
    • Grooved structure of Test Specimen Holder to provide firm grip
    • Firm grip of specimen if the operating wheel is tightened uniformly
    • Available in 0 – 60 kg/cm² on request
    • Available in computerized model with thermal print facility
    • Pressure transducer model for accurate results

  • Capacity

    0 – 40 kg/cm²

    Display

    digital

    Accuracy

    ± 1% within 10% to 90% of entire range as per IS:1828 with master gauge.

    Least Count/Resolution

    0.1 Kg/cm2

    Power

    220V, Single phase, 50 Hz

    Test fluid

    Glycerin about 98% purified

    Rate of fluid displacement

    95 cc/minute

    Motor

    1/4 HP Single Phase , 1440 rpm

    Material

    Mild steel, powder coated

    Dimensions

    540x 600x 450 mm

Awesome quality and precision, testronix bursting strength tester is very accurate

Amit

Awesome quality and built of the machine

Rajesh

Highly recommended, very good accuracy and quality, service is also good

Brijesh

Highly recommended instrument with a super accuracy , being used in my corrugated factory since 6 years .

Vijay

Perfect instrument for checking the bursting factor of my corrugated box material . Loved the way it eased my work.

Ashok Bansal

The Testronix Bursting Strength Tester is a very reliable equipment. Would highly recommend this machine for checking quality of all kinds of paper, corrugated cardboard, carton box, card board, leather, cloth or synthetic leathers. We are happy that we chose Testronix because the quality is excellent and the pricing is very reasonable.

Raj Kumar

I purchased this accurate instrument for testing the measurement as well as the performance of materials for my packaging company. This is the best product at a reliable price.

Rajesh Saha

Bursting Strength Tester digital was an easy-to-use device for me. Even though it comes in both analogue and digital models, I went for the digi-device, which gave very accurate results. This testing instrument works on the principle of hydrostatic pressure - that's a 95% success rate! Its premium quality is a value for money. Better still! are the multiple usages on paper boards, corrugated boards and boxes, solid fibre boards, filter cloth, industrial fabric, leather etc that lends it versatility.

Ishaan Dubey

How Bursting Strength Tester Digital Works?

View this video to learn how this product works

Have a Question?

Connect with our customer support manager to get the product details & Quote.

Please fill this form to request a call-back from our
customer support manager with pricing and details.

We will also send you our product PDF for your reference.

Call our Experts for the Best Offer
+91 9313140140

Word of Testimony

What our customer says about us is important to us.

Testronix has set up our new lab in all our plants throughout india. They provide value for money and very affordable testing instruments. Their team is highly trained and has good technical knowledge about the products.

Karan Singh

The entire team at Testronix is highly professional. They provide timely delivery with world class features in all their instruments. They also provide customised instruments as per the needs of the user which no other dealer/trader can provide. We are very much satisfied with their products

Maneesh Bhatnagar

Trusted by market leaders —

FAQ's

Q. What is the use of a digital bursting strength tester?

A bursting strength tester helps corrugated box manufacturers and paper producers identify and calculate the Bursting factor. The instrument helps in determining the quality and durability of paper and packaging material. The instrument displays the Bursting strength reading and results on the digital display. The user can easily record the results and take positive measures to improve the quality

Q. How does a burst tester work?

Once the user places the sample of paper or corrugated box on the rotatory head of the machine. They can start conducting the test with a single push-button operation. Once the bursting of the sample takes place the results are automatically displayed on the digital LED indicator. The Peak value showcases the Bursting strength / Bursting factor of the sample. It is simple and easy to operate the machine without any complications.

Q. What is the price of a digital bursting strength tester in India?

There are many bursting strength tester suppliers in India who are not able to meet international standards in terms of the quality and accuracy of the instruments. It is very important for corrugated box manufacturers to purchase the instrument on the basis of quality, performance and precision of results and not the price. Generally, the price of a bursting strength tester begins from INR 50,000 and extends to as much as INR 10 lakhs for high-end machines

Q. From where to buy a genuine digital bursting strength tester?

To find Bursting Strength Tester; you need to select the authentic manufacturers first. Check if the vendor has their own manufacturing unit with the service team. Always visit the manufacturing unit and take a demo for all instruments you wish to purchase so that you can ensure that the manufacturer is able to meet ASTM, ISO and other international test standards.

Q. How to get a free quotation for a digital bursting strength tester?

To get a free price quotation for bursting strength tester you can contact the company with your requirement, details from their mail id and phone number. To get a quotation from Testronix Instruments fill the form with requirements and you will get an instant call-back from the sales for the techno-commercial offer. You can connect with us anytime at +91 9313 140 140 or info@testronixinstruments.com

Q. What is the price of bursting strength tester price in India?

The price of bursting strength tester begins from INR 150,000 and extends as much as INR 20 lakhs for high end machines.
