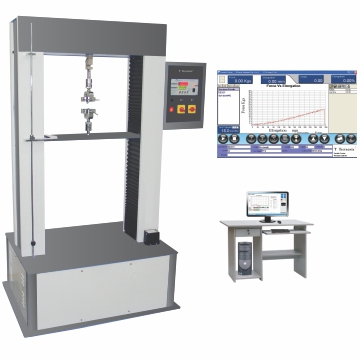

Universal Tensile Testing Machine

Universal Tensile Testing Machine



Universal Tensile Testing Machine

4.7 of 5

Model No: Model No: TX- TSTP

Universal Testing Machine (UTM) also known as a universal tensile tesing  machine/tester is one of the high-quality lab testing instruments that is used to measure the force required to break or deform a material. This can be used to test the strength of materials used in products and components. UTM Machine/Tester is important for quality control and assurance in many ind.. Read more


Need more information or have a question?

Contact Us

Universal Testing Machine (UTM) also known as a universal tensile tesing  machine/tester is one of the high-quality lab testing instruments that is used to measure the force required to break or deform a material. This can be used to test the strength of materials used in products and components. UTM Machine/Tester is important for quality control and assurance in many industries, as it can help to test the durability of the materials against Universal forces.


Testronix universal tensile tester or UTM tester (Universal Testing Machine) is one of the high-quality lab testing instruments which helps the user in calculating the breaking load capacity and the elongation in the case of a stretchable sample. It is the most widely used instrument in the destructive sample testing domain. The instrument calculates the force which acts on the specimen. During the test, the specimen is placed between the clamps/grips. This quality lab testing instrument can be used in different industries like plastics, packaging, flexible films, and many more.


This highly versatile Universal tensile strength tester comes with an advanced load sensor through advanced electronics and comes with a highly sensitive load sensor. It comes with a rugged and robust body with a twin-column structure for extended protection and precision. This quality testing instrument has been designed as per industrial standards that include ASTM D412, ASTM D429-73, ASTM D624, ASTM D638-01, ASTM D76, IS 13360-5-7, and IS-3400. Users will get a pass/fail report generation as well with the use of this quality testing equipment.

Working Principle of universal tensile tester:

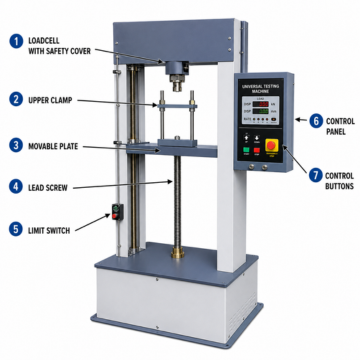

It is a testing machine that consists of applying a controlled mechanical force on different samples so as to get the mechanical properties of the given materials. Its working mechanism is composed of the frame with load, specimen holding grips or fixtures, load cell that is used to measure applied forces and the displacement sensor that is required to measure deformation. Specimens are placed in a vise that holds them firmly while applying loads with a carefully controlled speed. The tensile load that will be applied on the sample is measured by the load cell constantly, and the distance of elongation of the testing unit or the specimen by that displacement sensor. Depending on the specific applied force which is then being converted into the deformation, the UTM  (Universal Testing Machine) creates priceless data on material behavior, such as the tensile strength, the yield strength, the modulus of elasticity and elongation.

Applications of universal tensile machine:

  • To measure the tensile strength of metals, alloys, plastics and rubber.
  • Test reliability of fasteners, columns etc.
  • Evaluate the mechanical properties metal implants, medical devices etc.
  • Testing Structural Integrity of metals.

Advantages of universal tensile testing machine:

The universal tensile testing machine has been designed to provide various advantages that will help the manufacturers in ensuring accurate product quality. One of the biggest advantages one can get with the use of tensile strength tester is that one can get reliable product measurements of material properties that will help manufacturers to ensure product quality and also optimize designs, and meet regulatory product requirements.



By enhancing the quality control with the help of this testing instrument, manufacturers can get versatility in their product designs.

    • Advanced load sensor sensing through advanced electronics.
    • The highly sensitive load sensor
    • Rugged and robust body
    • Twin column Structure for Extended protection and precision
    • Safety limit switches for over-travel safety
    • Highly accurate micro-controller based system controls
    • Peak Hold facility available
    • Microprocessor-based easy operation
    • Programmable control system
    • Lead screw mechanism
    • Overload safety mechanism for Protection of load cell
    • Load v/s elongation ( stress v/s strain) report generation
    • Precise elongation feature
    • Powder-coated corrosion-resistant structure
    • Ergonomically designed structure
    • Computerized software inbuilt
    • Pass/fail test report generation

    • Accuracy – ±2% of Load Cell Capacity
    • Travel length of the grips – 25mm – 700mm.
    • Motor – 1/5 HP, – 1440 rpm, 1 phase power supply.
    • Grip-to-grip separation: Min 25mm and max 700mm
    • Capacities available

Impressive durability and accuracy! The universal testing machine surpassed my expectations. Its robust design ensures precise measurements every time, enhancing our product quality control processes.

Tushar tyagi

Efficient and accurate! This UTM ( Universal Testing machine) has revolutionized our quality assurance process. It has become an indispensable tool in our manufacturing facility.

Shivam Chauhan

Unbeatable performance! This Universal testing machine has become the gold standard in our industry. Its accuracy and reliability make it stand out from the competition.

Aniket yadav

Outstanding value! Investing in this Universal testing machine equipment was one of our best decisions. It delivers consistent results, improving our product development cycle significantly.

Mukul Sharma

Excellent customer support! The team behind the universal testing machine has been incredibly helpful throughout our purchase and setup process. Kudos to their professionalism.

Yuvi Sharma

How Universal Tensile Testing Machine Works?

View this video to learn how this product works

Have a Question?

Connect with our customer support manager to get the product details & Quote.

Please fill this form to request a call-back from our
customer support manager with pricing and details.

We will also send you our product PDF for your reference.

Call our Experts for the Best Offer
+91 9313140140

Word of Testimony

What our customer says about us is important to us.

We want to thank your team for such prompt support. Your instruments are very durable. We are impressed with the design engineering. All the products are very easy to operate. The guidance provided by your team is highly appreciated. We look forward to working with an organisation like yours

Manish Aggarwal

Testronix has set up our new lab in all our plants throughout india. They provide value for money and very affordable testing instruments. Their team is highly trained and has good technical knowledge about the products.

Karan Singh

Trusted by market leaders —

FAQ's

Q. What is the use of a universal testing machine?

The Universal Testing Machine is used to measure the force required to break and deform the material. Universal testing machine is used the check the elongation and compression strength of rubber, plastic and flexible films sample. UTM Machine is important for quality control and assurance in many industries, as it can help to test the durability of the materials against Universal forces.

Q. Why universal testing machine is important?

UTM machine is an essential tool for determining the mechanical properties of materials. Its working procedure involves subjecting a specimen to a controlled load and measuring its response, which provides valuable information for material design and quality control. The instrument calculates the force which acts on the specimen. During the test, the specimen is placed between the clamps/grips. This quality lab testing instrument can be used in different industries like plastics, packaging, flexible films, and many more. This highly versatile Universal strength tester comes with an advanced load sensor through advanced electronics and comes with a highly sensitive load sensor.

Q. What is the price of universal testing machine in India?

In India there are so many suppliers of Universal Testing Machine, but they are not able to provide you the quality and accuracy with international standards. So it is essential for a manufacturer that find out an accurate bottle burst tester with all ASTM and ISO standards. Basically the price for Universal testing machine start from INR 1.2Lakh rs to 5 lakhs.

Q. From where to buy genuine universal testing machine?

A Customer need to find a renowned manufacturer to buy genuine universal testing machine, there are So Many traders in market, but not everyone is a genuine manufacturer and can provide you with authentic and high-quality products. That is why Customer should check if they have their own manufacturing unit and dedicated service set up. Customers must check that the manufacturer should have the proper service support so that in future you don’t have to take tension of service. And customer should visit the manufacturing plant before confirming the order. Should Purchase from the reputed manufacturer who comply all the international standards.

Q. How to get a free quotation for universal testing machine?

To get a free price quotation for universal testing machine customer can contact the company who’s manufacturing the universal testing machine or can contact the vendor of that. With your requirement, details from their mail id and phone number. To get a quotation from Testronix Instruments fill the form with requirements and you will get an instant call-back from the sales for the techno-commercial offer. You can connect with us anytime at +91 9313 140 140 or info@testronixinstruments.com
