    Heat Deformation Tester
    Responsive image

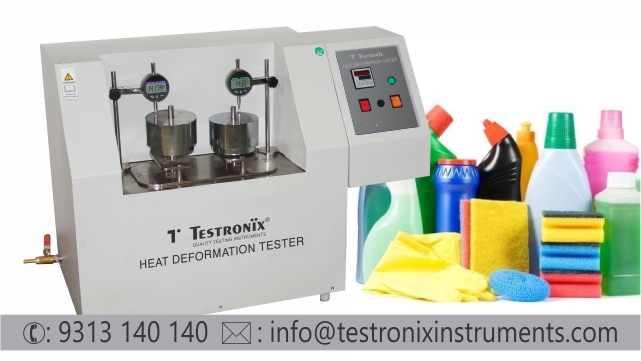

    Heat Deformation Tester

    Heat Deformation - HDT/VSP Tester is a consistent tool useful for determining the ability of a given polymer to bear load at elevated temperatures.

    Accurate and reliable deflection or deformation is an important component in the plastics industry.

    The deflection on the gauge is the measure of deformation of the test specimen.

    TESTRONIX Heat Deformation HDT/VSP tester is equipped with indenter which indents the sample under specific load and offers heat deformation and Vicat Softening temperature of plastic or polymer materials.



    SPECIFICATIONS:-



    • Temperature Controller range: Up to 250ºC
    • 120±10ºC/hr.
    • 50±5ºC/hr.
    • Dial Gauge Range: up to 10 mm
    • Resolution/Least Count: 0.001 mm
    • Power: 220V, 50Hz, Single Phase
    • Dial Gauge: 2
    • Diameter of Indenter tip: 1mm circular (Flat ended needle)
    • No. of test stations: 2
    • Weights: 5 Kg
    • Heater: 1 KW x 2
    • Rate of Heating
    • Testing Medium: Water or Silicone Oil

    Effective Standards:-



    • ASTM D1525-00
    • ASTM D648-01
    • IS 2530-1963
    • ISO 75-1(2004)-E

    Optional:-



    • Other Specific Dead weight is also available on request.

    Silicon Oil is not a Part of supply:-



    Testronix Heat Deformation HDT/VSP tester is equipped with indenter which indents the sample under specific load and offers heat deformation and Vicat Softening temperature of plastic or polymer materials. The deflection on the gauge is the measure of deformation of test specimen.

    Highlights:-



    Digital Dial Gauge:  2

    No. of test stations: 2 (HDT/USP)

    Testing Medium: Water or Silicone Oil

    Material: Mild Steel (Outer Body) & Stainless Steel (Inner Body)

    Finish: Powder coated Havel Gray & Dark Gray combination finished bright chrome / zinc plating for corrosion resistant finish

    Dial gauge stand: 2 – Inbuilt

    Model No.

                                           HDT/VSP-500





    Heat Deformation – HDT/VSP Tester is the significant tool that’s useful to measure deflection temperature through dial gauge with advanced, inbuilt & faster auto tuning function & fast guiding mechanism with plunger rod for best quality service.
