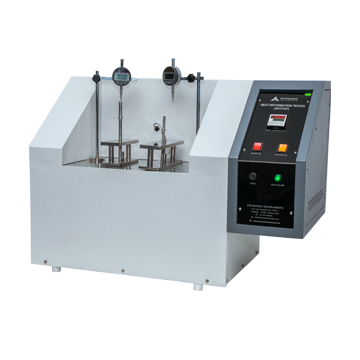

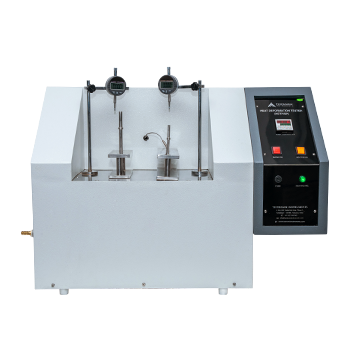

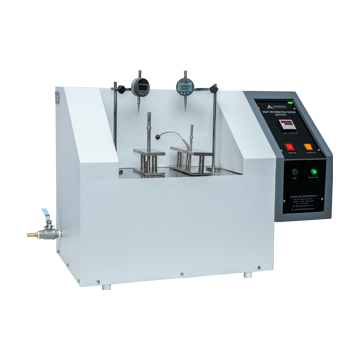

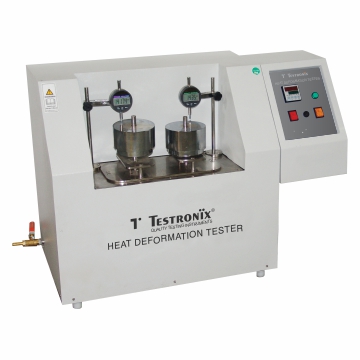

Model No: TX-HDT 120

Heat Deformation – HDT/VSP Tester is a consistent tool useful for determining the ability of a given polymer to bear load at elevated temperatures. Accurate and reliable deflection or deformation is important component in plastics industry. Heat Deformation
HDT/VSP Tester is designed as per standards IS 2530-1963,
ISO 75-1(2004)-E, ASTM D648-01, ASTM D1525-00.
• Equipped wit.. Read more


Need more information or have a question?

Contact Us

Heat Deformation – HDT/VSP Tester is a consistent tool useful for determining the ability of a given polymer to bear load at elevated temperatures. Accurate and reliable deflection or deformation is important component in plastics industry. Heat Deformation
HDT/VSP Tester is designed as per standards IS 2530-1963,
ISO 75-1(2004)-E, ASTM D648-01, ASTM D1525-00.
• Equipped with 2 stations to measure Deflection temperature and
Vicat Softening temperature
• Precise measurement through Digital Dial Gauge
• Used for testing with both water and silicone oil
• Advanced Digital Microprocessor PID based temperature
controller
• Inbuilt Auto tuning function
• Highly accurate test results under uniform temperatures in the
chamber
• Setting to RTD PT-100 sensor through advanced PID controller
• High Quality rugged structure with corrosion resistant main body
• Digital Dial gauge to measure the deflection in test samples
• Fast Guiding Mechanism with plunger rod
• Single handed hassle free operation with test start operation
• Stirrer Motor for Precise stirring of sample inside the tank &
for Uniformity of Temperature

    • Diameter of Indenter t ip (VSP) --1mm circ ular (Flat ended needle)
    • Temperature Controller range-- Upto 250ºC
    • Rate of Heating --120±10ºC/hr .
    • 50±5ºC/hr.
    • Weights-- 5 Kg (2 nos)
    • Dial Gauge Range-- upto 10 mm
    • Resolution/Least Count-- 0.001 mm
    • Wet Heater --1 Kw X 2
    • Power -- 220V, 50Hz, Single Phase
    • Diameter of indenter tip (
      HDT)  --13 MM (
      Approx)
    • Temp. Range with Silicon Oil -- Ambient to 250 C
    • Temp. Range with water --Ambient to 90 C
    • Motor Capacity --1/70HP 1350rpm
    • Motor Type -- Stirrer Motor

    Highlights :
    Digital Dia l Gauge -- 2
    No. of test stations -- 2 (HDT/USP)
    T esting Medium -- Water or Silicone O il
    Material --Mild Steel(Outer Body)
    Stainless Steel(Inner Body)
    Dial gauge stand  --2 - Inbuilt
