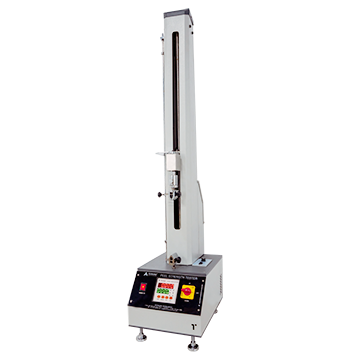

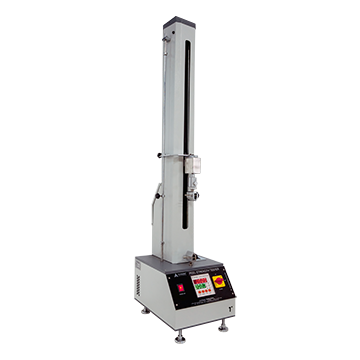

The Medical Cannula Pull-Out Tester is a high-precision instrument designed to measure the axial pull-out force required to separate the needle (cannula) from its hub. This test is essential to ensure the mechanical integrity, bonding quality, and safety of hypodermic needles, IV cannulae, syringe needles, pen needles and other medical sharps.
Testronix Instruments is leading manufacturer and supplier of Medical Cannula Pull-Out Tester in India. To get the best price, request a quote or call us now!
Equipped with a high-accuracy load cell, a controlled-speed motorized drive, and dedicated cannula holding fixtures, the instrument applies a uniform axial tensile force while recording the exact load at detachment.
The tester complies with major international medical device testing standards and is ideal for medical device manufacturers, QC labs, research centers, and regulatory validation teams.
Highly accurate load cell for micro-force detection
Smooth motorized drive for uniform tensile loading
Specialized cannula and hub holding fixtures for secure, slip-free grip
Peak Hold, Tare, and Auto Zero functionality
Microprocessor-based control for stable test conditions
Overload protection and emergency stop
Real-time display of Pull-Out Force and Peak Detachment Force
Low-noise gear motor for quiet lab operation
Robust body suitable for medical device QC environments
Optional Accessories
Computerized testing software
Variable Frequency Drive (10–300 mm/min)
Custom fixtures for pen needles, insulin needles, IV cannulae, catheter hubs, etc.
ISO 17025 traceable calibration kit
Extended stroke for long components
Computerized Model (Optional)
Real-time Force–Displacement graph
User-defined limit settings with Pass/Fail results
Exportable PDF/Excel reporting
|
Parameter |
Specification |
|
Load Cell Capacity |
20kgf |
|
Accuracy |
±0.5% of full scale |
|
Resolution / Least Count |
10gm |
|
Test Speed |
variable 10–300 mm/min |
|
Travel Range (Crosshead Movement) |
300 mm |
|
Test Mode |
Axial Tensile Pull-Out Test |
|
Grips/Fixtures |
Dedicated Cannula Clamp, Universal Hub Holding Fixture |
|
Display |
Digital LED Display |
|
Power Supply |
220 V AC, Single Phase, 50 Hz |
|
Machine Frame |
Powder-coated mild steel, rigid base |
