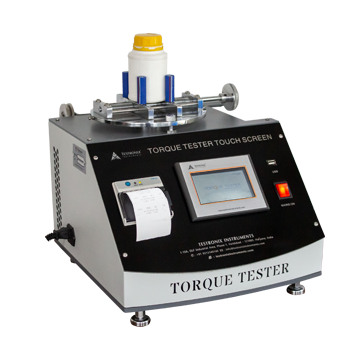

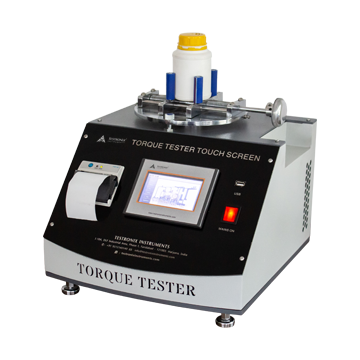

The Torque Tester 21CFR is a highly accurate instrument that is manufactured by Testronix Instruments. This equipment helps in calculating the opening and closing torque of bottles and caps with closures. The motorized torque tester provides accurate test results to the user.
The bottle is placed near the fixture of the instrument and with the help of an automatic rotating mechanism the machine opens and checks the torque value of the bottle cap.
The accurate torque value which was required to open the bottle cap is then displayed on the touch screen display. This is a highly accurate instrument and very user-friendly and complies with all international test standards.
The Torque Tester Touch Screen 21CFR makes checking the tightness and consistency of caps, closures and other fasteners much easier and more reliable, helping ensure products are safe and meet strict quality standards. With this tool, it is easy to find out exactly how much force will be needed to open or close a product to understand how much energy the actuator(s) need. As a result, it reduces the risk of making mistakes and damaging the product or packaging while saving both time and effort with accurate, repeatable data allowing you to continue to produce products consistently without having to guess.
Through this tool, companies in industries requiring extremely accurate measurements such as the pharmaceutical industry and food & cosmetics, benefit from improved operational efficiency as well as lower levels of wasted product while ensuring compliance with government regulations. With its easy operation, it supports both small-scale checks and large production lines, making quality control simpler, faster and more trustworthy while giving peace of mind that products are handled correctly.
Applications
Measuring the torque of bottle caps in pharmaceutical packaging.
Testing the consistency of closures in food and beverage containers.
Checking tamper-evident caps in cosmetic products for safety compliance.
Verifying screw and fastener tightness in medical devices.
Ensuring compliance with regulatory standards in pharmaceutical manufacturing.
Monitoring torque levels in production lines to reduce product damage.
Conducting quality control checks in laboratories and R&D departments.
Strong clamping pegs/holders for zero slip gripping support
Height adjustable clamping mechanism to hold different size of bottles
Automatic restoration to initial position after test completion
In-house calibration facility
Precise measurement of torque
Touch screen?Display for accuracy and repeatability
Max. Torque Range 80 lb-inch
Accuracy ± 0.5 lb-Inch (with master weight)
Least Count/Resolution 0.1 lb-inch
Power 220V, Single phase, 50 Hz
Display Touch screen
Torque Monitoring Peak Load indicator with HMI readout and peak hold feature
Minimum Diameter for specimen holding 20 mm
Maximum Diameter for specimen holding 130 mm
Max. size of test bottles to be tested 2.5 litres
Sample Size Min. height 25 mm & Max. height 400 mm
Auto stop at an angle of 90º Automatic restoration to initial position
Dimensions: 432x400x1265 mm
Auto Stop Function enabled
Motorised feature for high repeatability
Data output in Touch screen display form
Machine to stop at an angle of 90º to avoid load on torque sensor
Adjustable fixture to test different size test bottles
Part Compliance to 21CFR Part 11?
1. Access Control & User Management
Role-based user accounts (Operator, Supervisor, Administrator).
Unique user ID and password required for login.
Automatic logout after inactivity.
Password policies configurable as per organizational SOPs.
2. Audit Trail (Non-erasable, Computer-Generated)
Every action (test start, test stop, parameter editing, report generation, data export, login/logout) is automatically logged.
Audit trail includes:
User name
Action performed
Old value vs new value
Date and time
Audit trail cannot be modified or deleted.
3. Electronic Signatures
Supports multi-level electronic signatures as per Part 11 Subpart C:
Test Performed By
Reviewed By
Approved By
Each signature includes:
Printed name
Date & time executed
Meaning of signature (Approval / Review / Creation)
4. Data Integrity & Security
Encrypted data storage.
Protection against unauthorized data modification.
Automatic backup and database protection available.
Test results cannot be overwritten; new entries are created for every run.
Software ensures ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate).
5. Report Generation & Export Controls
Reports can be generated in PDF, Excel, or secure proprietary formats.
Export rights are controlled by admin privilege.
Each report contains unique identification and time stamps.
Computerised test reports?
Inbuilt Software?
Graphical report of Force Vs Time?
Pass/ Fail report for ease in data interpretation?
Compliance to international Test standards?
