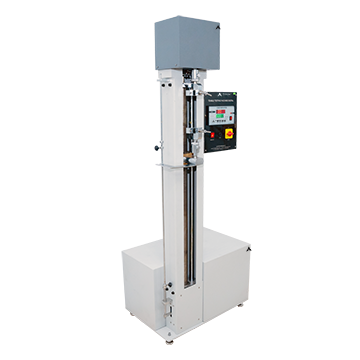

Peel cum tensile strength tester, also known as the Peel-o-Master, is a laboratory instrument designed to measure the peel strength and tensile strength of materials, especially adhesives, tapes, laminates, films, and packaging materials. Frequently used in the testing industry for packaging and plastics, it has various applications in industries such as plastics, packaging, flexible films, automotive, rubber, etc.
Testronix Instruments is leading manufacturer and supplier of Peel Cum Tensile Strength Tester in India. To Get the best price, request a quote or call us now!
The Peel-o-master is one of the most accurate instruments which helps the user in calculating the breaking load capacity and the elongation in the case of a stretchable sample. It is the most widely used instrument in the destructive sample testing domain. The peel cum tensile strength tester calculates the tensile and peel?force which acts on the specimen. During the test the specimen is placed between the clamps/grips. The clamps are then separated automatically with the help of a switch. Due to the separation, force applied on the specimen leads to destruction. This destructive force is calculated in kgf units and displayed on the digital display of the machine.?
The Peel cum tensile strength tester also has an inbuilt feature to store the peak value at which the destruction took place and display it on the LED screen. It tests how strong a material or adhesive bond is under peeling or pulling forces. Peel-o-Master is a dual-purpose tester widely used in industrial quality control to ensure materials and adhesives meet performance requirements. The tensile strength tester panorama has a twin column rugged structure and has an accurate grip separation operation.
The instrument provides the user with highly accurate and precise test results. The instrument adheres to the following test standards: ASTM D412, ASTM D429-73, ASTM D624, ASTM D638-01, ASTM D76, IS 13360-5-7, IS-3400
7 Types of Tests
Elongation?
Tensile Strength Test
Adhesion Strength Test
Peel Strength Test
Seal Strength Test
Bond Test
Breaking Load
Advanced load sensor sensing through advanced electronics.
Highly sensitive load sensor
Rugged and robust body
Safety limit switches for over travel safety
Highly accurate micro-controller based system controls
Peak Hold facility available
Over load safety mechanism for Protection of load cell
Precise elongation feature
Powder coated corrosion resistant structure
Powder coated corrosion resistant structure
Ergonomically designed structure
Optional features available-
Customised grips as per sample
Speed drive/ speed controller
Accuracy – ±0.5% of Load Cell Capacity
Travel length of the grips – 25mm – 700mm.
Motor – 1/5 HP, – 1440 rpm, 1 phase power supply.
Grip to grip separation: Min 25mm and max 700mm
Capacities available- 20kgf or?50kgf
