Description

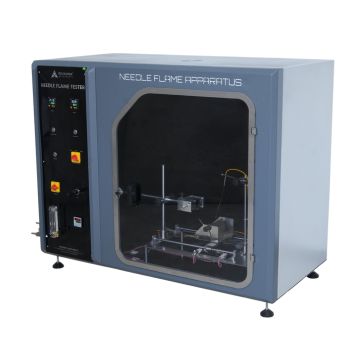

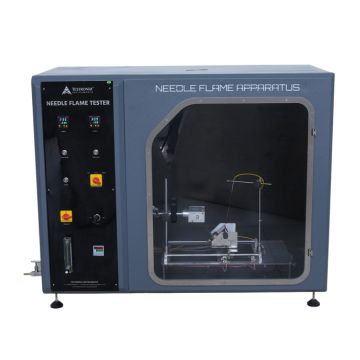

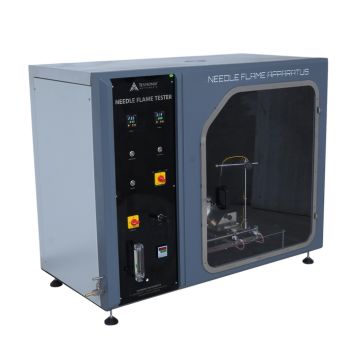

The Testronix Needle Flame Test Apparatus is a precision-engineered testing instrument designed to assess the flame resistance of insulating materials, electronic components, and plastic parts used in consumer and industrial electrical equipment. It simulates the effect of small flames caused by fault conditions and is essential for pre-compliance and quality testing as per international fire safety standards.

Features

Complies with IEC 60695-2-2:2021, IEC 60695-11-5:2016, and IEC 62368-1:2023
Touch screen control with programmable test cycles
Precision flame height adjustment with 12 mm ±1 mm accuracy
Temperature rise validation from 100°C to 700°C in specified time
Remote control functionality for safer operation
Auto recording of flame duration and after-flame time
Option for single or multiple burn settings
Integrated thermocouple for real-time flame temperature monitoring

Specifications

Burner Specification

Tube Length: Minimum 35 mm
Bore Diameter (Internal): 0.5 mm ± 0.1 mm
Outer Diameter: Not exceeding 0.9 mm

Flame Characteristics

Flame Height: 12 mm ± 1 mm
Orientation: Burner axis vertical (for setting) and inclined 45° ± 5° for testing
Stabilization Time: Wait ≥ 5 minutes before testing
No Air Supply: Burner should not admit air
Used to precisely adjust gas flow rate to achieve correct flame height

Distance to Specimen

Vertical Position: 8 mm ± 1 mm from burner tip
Horizontal Position: 5 mm ± 1 mm from burner tip

Cabinet Size (Minimum Internal Volume)

0.71 m³ (719 Liters)
Dimensions: L-870 mm × W-870 mm × H-950 mm

Other Specifications

Internal Surface Colour: Dark-coloured walls (to see flame clearly)
Ventilation (Exhaust): Optional, with fan, but should be OFF during test and ON after
Observation Window: Transparent glass/acrylic panel for visual monitoring
Suggested Add-on: Rear view mirror for observing specimen back side
Safety Note: Chamber should be flameproof and ventilated, with extraction duct if possible
Wood Board: 10 mm plywood sheet – 30 cm × 30 cm
Sample should be fixed 200 mm above the board
