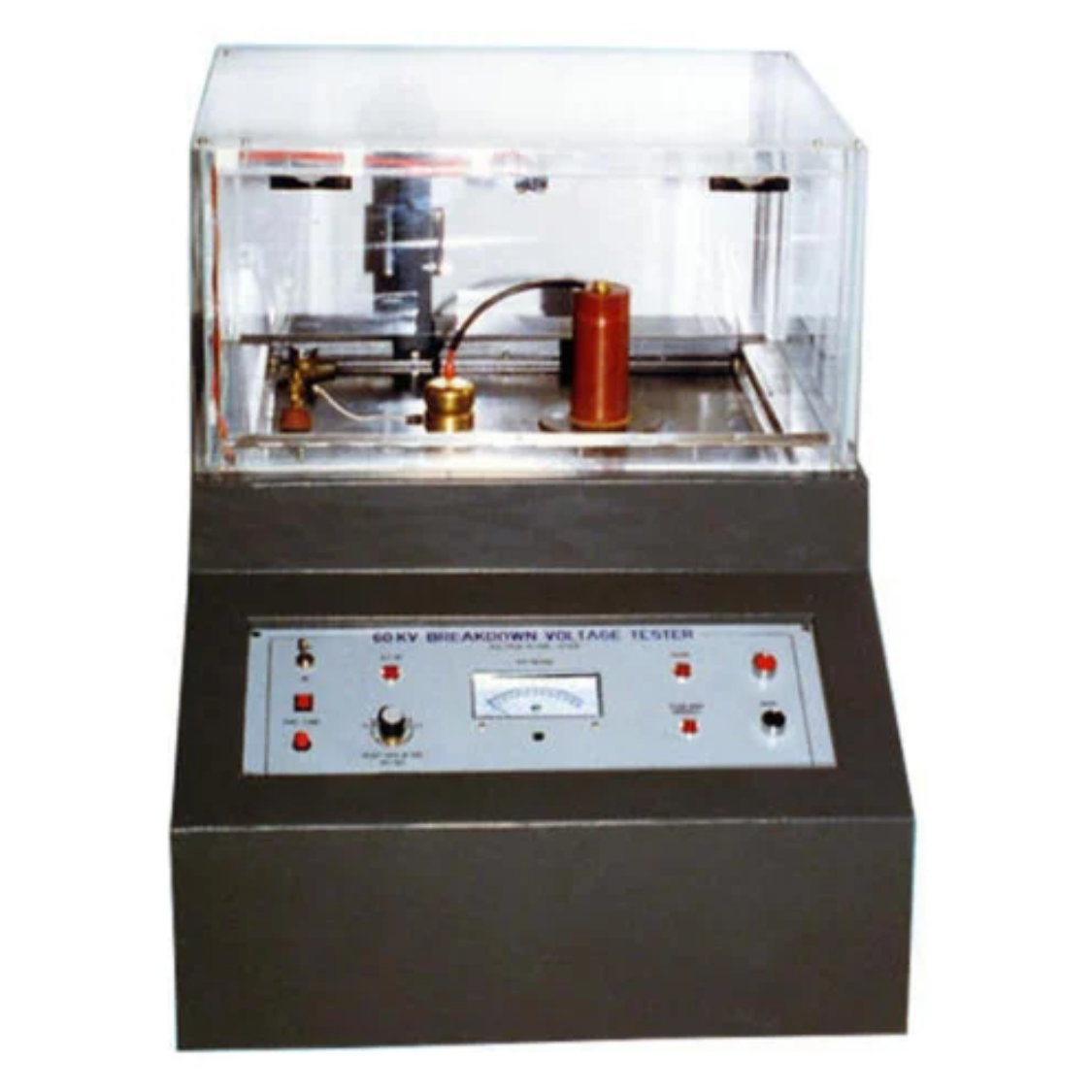

HMI-Based High Voltage Breakdown Tester Price and Manufacturer in India

Description

The High Voltage Breakdown Tester is used to evaluate the dielectric strength of insulation in electrical appliances by applying high AC voltage across critical points. It ensures that the equipment can withstand over-voltage conditions without breakdown or arcing. This model comes with an HMI interface for easy control and real-time monitoring.

Features

Conforms to IS and IEC standards for dielectric strength
Programmable via HMI for automated test sequences
Fail/pass indicators with memory for up to 999 test records
Provides insulation quality verification under stress
Built-in protection ensures safe operator handling

Specifications

Parameter	Specification
Output Voltage	0–5 kV AC
Output Current	Max. 250 mA
Control Interface	HMI touchscreen
Output Regulation	Manual or programmable (via HMI)
Safety Features	Emergency stop, over-current trip
Output Display	Digital volt and current meters
Test Mode	Ramp, hold, and trip
Output Probe	Safety probe with shielded cable
