HMI-Based Endurance Test Apparatus for Fan Price and Manufacturer in India

Description

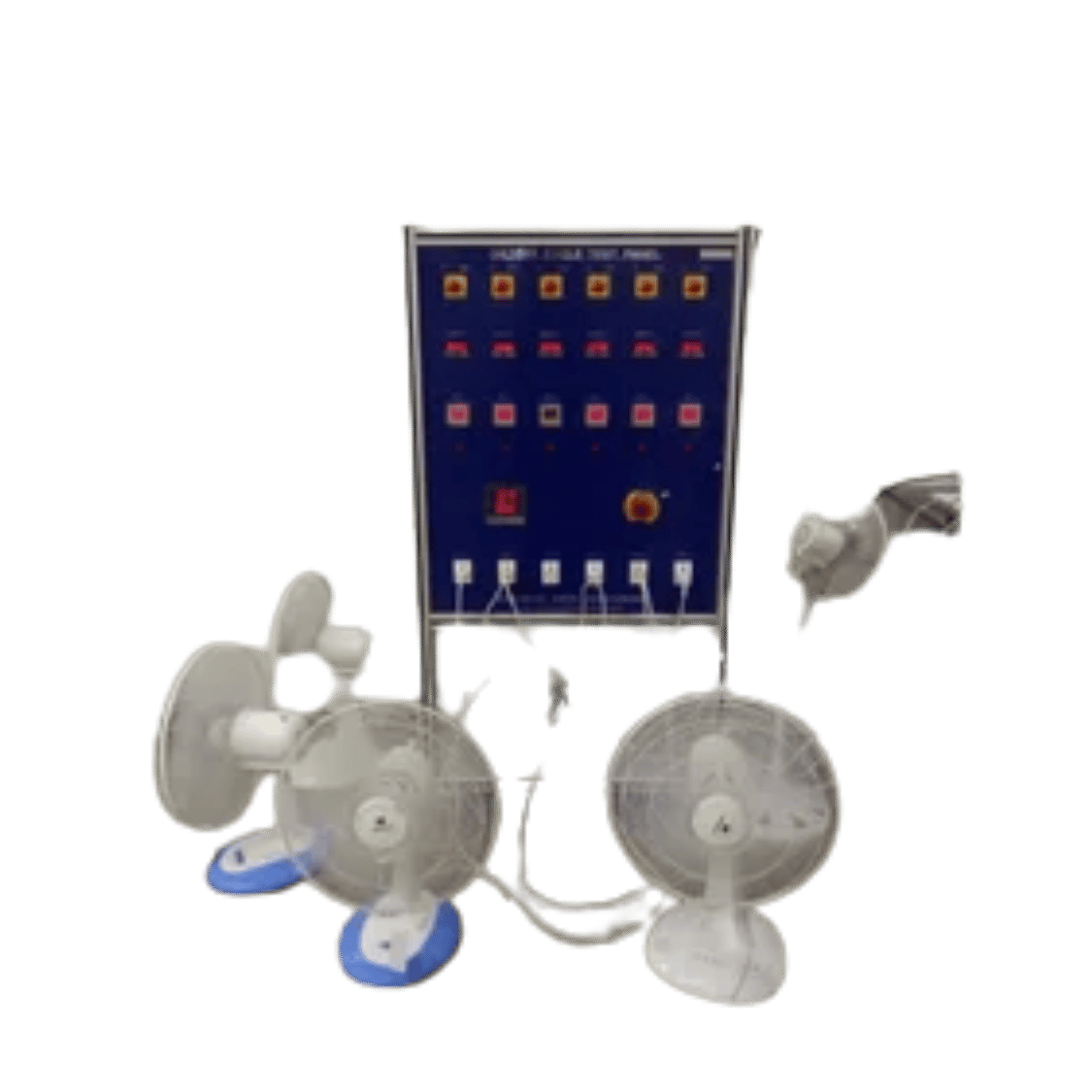

This apparatus is designed to assess the mechanical and electrical durability of ceiling and pedestal fans under repetitive on/off cycles. It simulates continuous operation over defined hours while monitoring key electrical parameters. The HMI interface provides user-friendly control and automation of endurance cycles.

Features

HMI-based interface for automated test execution
Simulates real-world power cycles with high repeatability
Integrated counter and hour meter for duration tracking
Designed for continuous fan performance testing per BIS
Overload and thermal protection for safe operation

Specifications

Parameter	Specification
Voltage Range	0–300 V AC
Wattage Range	0–4000 W
Control System	HMI with programmable ON/OFF cycles
On/Off Timer	Digital timer (0–99 hours)
Digital Counter	0–999999 counts
Hour Meter	Real-time hour tracking
Variac Rating	15 Amp for voltage adjustment
