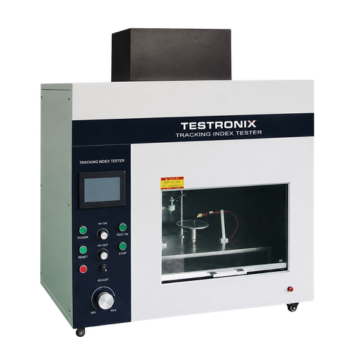

HMI-Based Tracking Index Test Apparatus Price and Manufacturer in India

Description

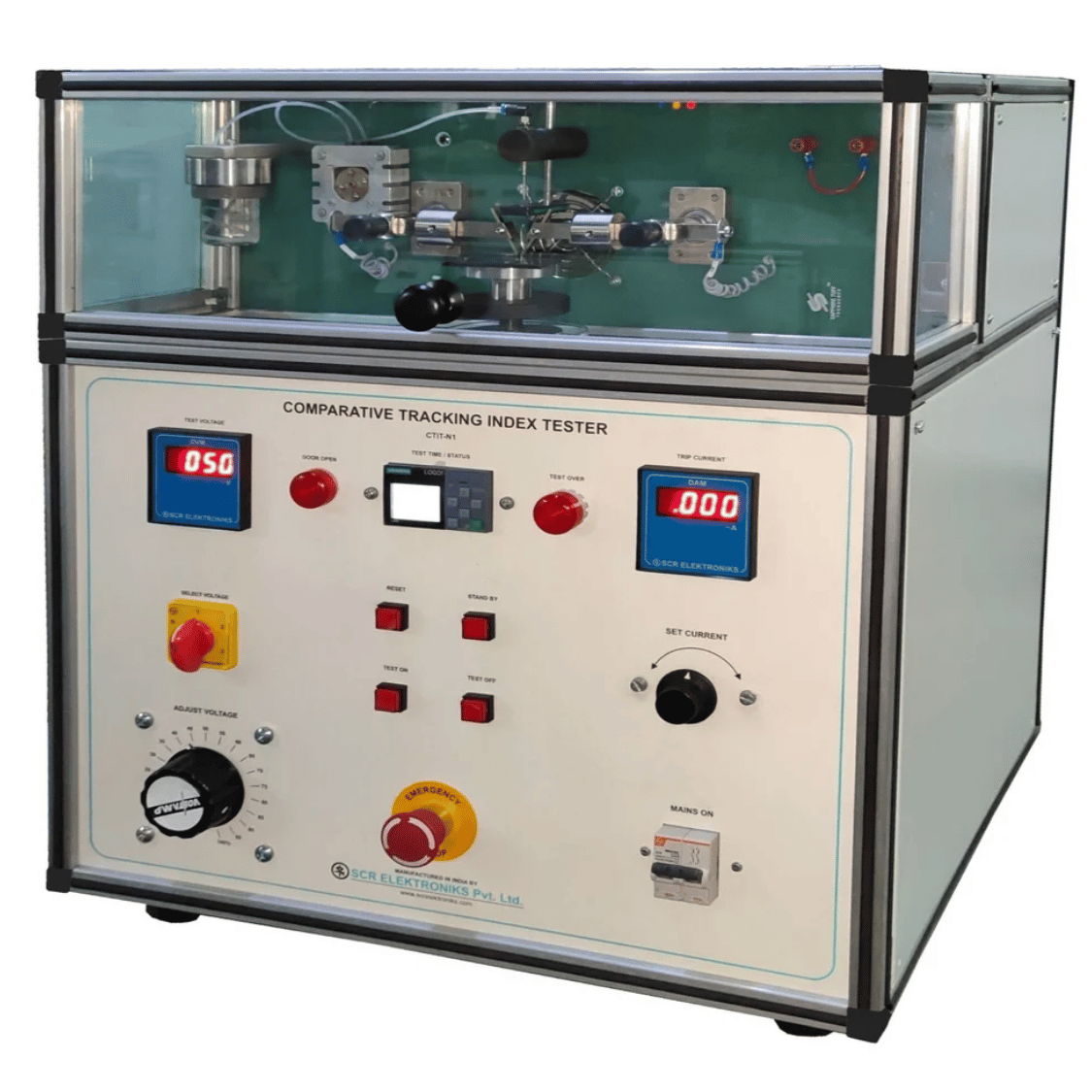

The Tracking Index Test Apparatus is used to evaluate the resistance of insulating materials to tracking — a type of electrical degradation caused by moisture and contaminants. It applies high voltage between two electrodes placed on the test surface, and the current flow is observed for insulation breakdown.

Features

Accurately determines Comparative Tracking Index (CTI)
Platinum-plated electrodes ensure reliable and repeatable testing
Programmable test parameters through HMI
Built-in safety features and automatic tripping
Conforms to IS and IEC test procedures for insulating materials

Specifications

Parameter	Specification
Output Voltage	0–200 V adjustable
Output Current	2 A max
Tripping Current Setting	0.5 A
Running Current Setting	1 A
Electrode Material	Titanium base with platinum-plated tips
Timer	Digital countdown with preset test duration
Control Interface	HMI-based touchscreen
Safety Interlocks	Overcurrent protection, test enclosure
