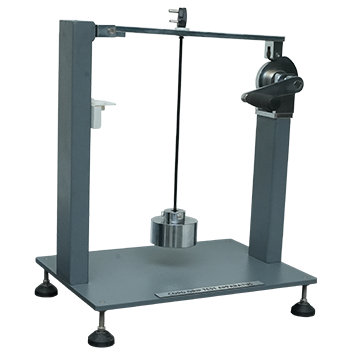

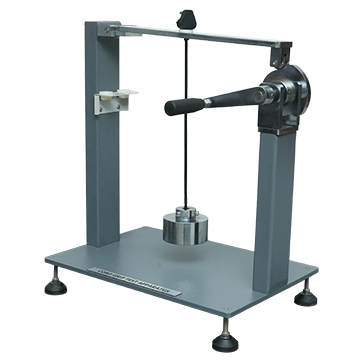

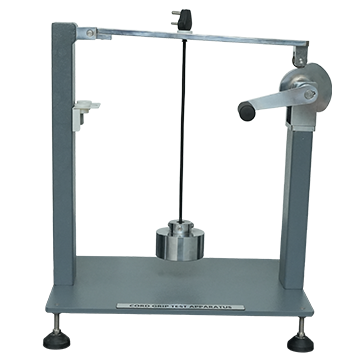

The Cord Grip Tester is designed to evaluate the holding strength of cord grips used in household and commercial appliances as specified in IS 302-1 Clause 25.15. It applies a controlled tensile load on the cord to ensure that the grip securely holds the cable without slippage or damage during normal operation.
Cord Grip Tester at best price in India. Get quotation from a top manufacturer and supplier of cord grip testing machine.
The tester uses a manual cam-type mechanism, adjustable fixtures, and precision weight loading. Its rigid, powder-coated MS frame ensures stability, repeatability, and long-term durability in appliance testing laboratories.
Tension load capacity options: 30 N, 60 N, 100 N
Manual cam-type operation
Suitable for Ø4 mm to Ø16 mm cords
Weight-based hanging load arrangement
Heavy-duty MS fabricated frame, powder-coated
Horizontal arm length 410 mm
Vertical column height 515 mm
Base plate size 500 × 350 mm
|
Parameter |
Specification |
|
Tension Load Capacity |
30 N / 60 N / 100 N |
|
Operation |
Manually operated cam-type |
|
Grip Range |
Ø4 mm to Ø16 mm cord |
|
Fixtures |
Weight with hanging arrangement |
|
Frame Construction |
Heavy-duty MS structure, powder-coated |
|
Horizontal Arm Length |
410 mm (for torque operation) |
|
Vertical Column Height |
515 mm |
|
Base Plate Size |
500 × 350 mm |
|
Standard |
IS 302-1, Clause 25.15 |
