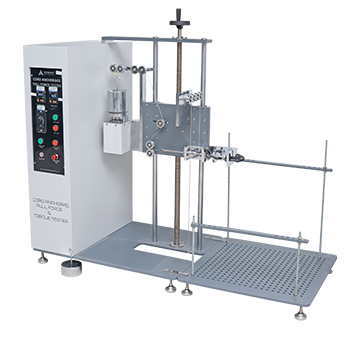

The Cord Anchorage Tester is designed to verify the anchorage strength and strain-relief performance of flexible cords at the appliance entry point as required by IS 302-1 Clause 25.16. It applies controlled pull force and torque to ensure the cord does not slip, twist, or get damaged during normal use.
Testronix Instruments is leading manufacturer and supplier of Cord Anchorage Tester in India. To get the best price, request a quote or call us now!
The tester offers manual or motorized load application, adjustable fixtures, and precise timing controls. It ensures appliance manufacturers validate cord safety, durability, and compliance with national safety standards.
Pull force range 30 N to 100 N
Torque application using T1/T2/T3 weights
Manual or motorized load application
500 × 500 mm multi-hole platform for easy clamping
Lead screw assembly with 500 mm adjustable stroke
Clamping range Ø3 mm to Ø12 mm
Adjustable steel anchorage fixtures
Digital timer with sec/min settings
Geared motor for smooth load application
|
Parameter |
Specification |
|
Pull Force |
30 N to 100 N |
|
Torque |
3 weights – T1 / T2 / T3 |
|
Load Application |
Manual / Motorized |
|
Test Platform |
500 × 500 mm with multiple clamping holes |
|
Main Assembly |
Lead screw, adjustable stroke up to 500 mm |
|
Clamping Range |
Ø3 mm to Ø12 mm |
|
Fixtures |
Adjustable steel anchorage fixture |
|
Digital Timer |
Selectable seconds & minutes |
|
Motor |
Geared motor |
|
Standard |
IS 302-1, Clause 25.16 |
