Automatic Glow Wire Test Apparatus Price and Manufacturer in India

Description

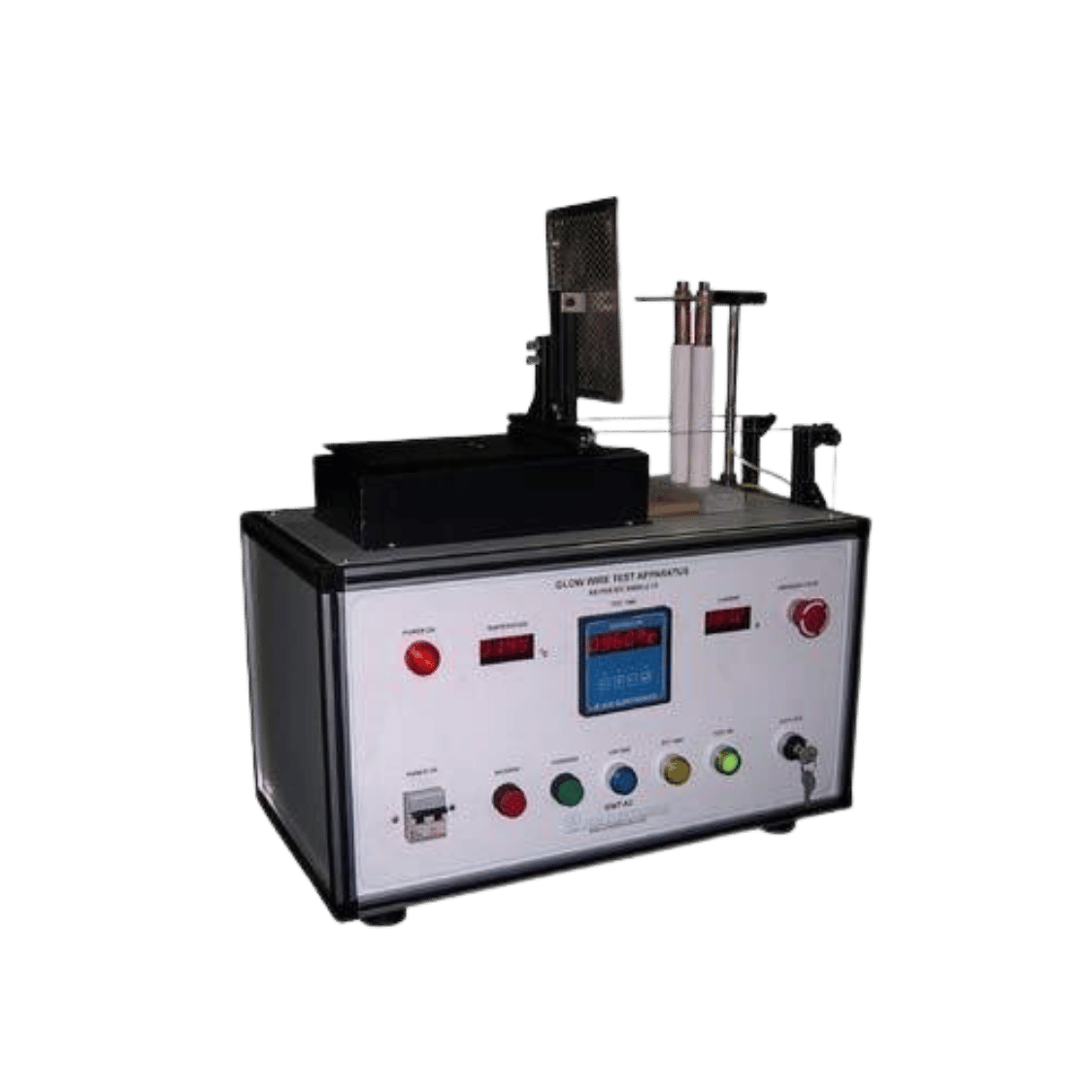

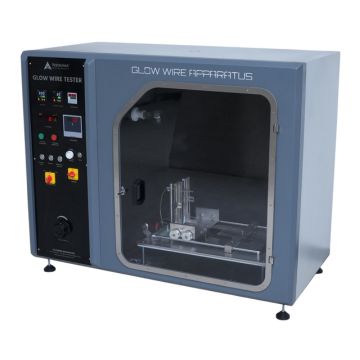

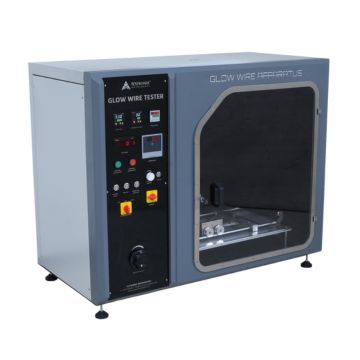

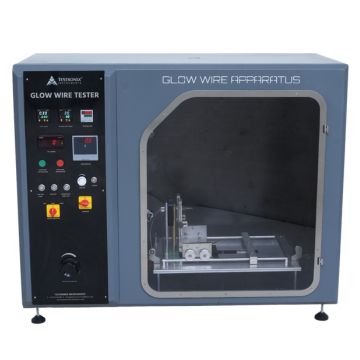

The Glow Wire Test Apparatus simulates thermal stress on materials due to glowing elements (like heating filaments or short circuits). It measures ignition resistance by applying a heated wire at 960°C to the test sample. This version includes full automation with speed-controlled trolley, force loading, and programmable time display.

Features

Fully automatic flame application with linear trolley
Digital temperature control and timer with high precision
Complies with fire hazard and thermal resistance testing standards
Visual observation possible through safe transparent enclosure
Accurate measurement of ignition, flame persistence, and glow time
Internal Surface has dark coloured walls for clear detection

Specifications

Parameter	Specification
Enclosure Size	870 mm × 870 mm × 950 mm
Diameter	4.0mm (Tolerance 0.04mm)
Temperature Range	Ambient to 960°C
Thermocouple Type	NiCrNi Type K, Ø1.0 mm
Temperature feedback	Embedded Thermocouple (0.5mm,type K)
Sensor	0.5 mm high-sensitivity
Testing Setup	Sample Pressed against the wire; tissue paper underneath to detect drips/ignition
Applied Force	1.0N (Tolerance 0.2N)
Trolley Speed	25 mm/sec (programmable)
Tissue Paper Tray	Positioned 200mm below sample to detect flaming droplets (as per IEC Standards)
Holding Duration	30seconds
Display Time	Digital (0–99.9 seconds)
Current Source	Up to 230 V AC, 50 Hz
Load Weight	1 Newton (maintaining contact pressure)
Cabinet Finish	Mild Steel Powder Coated
