Air Delivery Test Setup For Table Fan

4.7 of 5 In Stock
Model No: TX - ADTSFTF100
Brand: Testronix Instruments

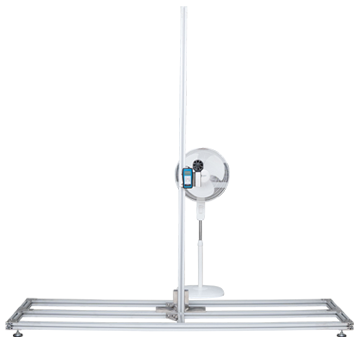

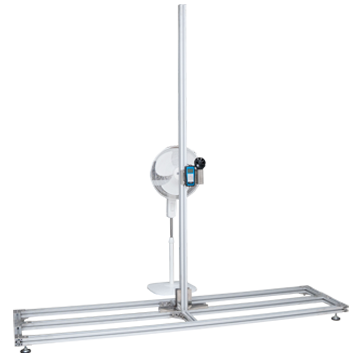

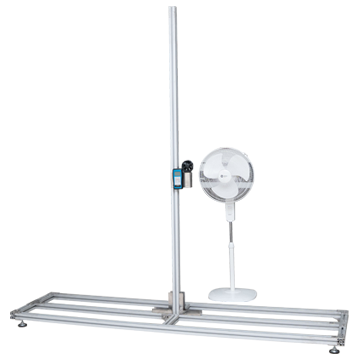

The Air Delivery Test Setup is designed to measure airflow output and delivery characteristics of table fans and pedestal fans in accordance with IS standards IS 555:1979 & IS 1169:1967.

Testronix Instruments is leading manufacturer and supplier of Air Delivery Test Setup for Table Fan in India. To get the best price, request a quote or call us now!

Description

It uses a traverse-based vane anemometer system and an airflow collection box with calibrated nozzles to accurately determine air delivery and performance.

Features

  • Test chamber size 4 m × 4 m × 3 m minimum
  • Traverse mechanism with 800 mm movement on left and right sides
  • Vane anemometers (0–10 m/s) for velocity measurement
  • Airflow collection box with calibrated nozzle
  • Automated velocity integration software for data acquisition
  • Adjustable tripod for sensor positioning
  • Laser alignment system with 3 m distance coverage
  • Adjustable-height fan mounting fixture
  • Accuracy ±1% of reading

Specification

Parameter

Specification

Test Chamber Size

4 m × 4 m × 3 m (minimum, customer scope)

Air Delivery Apparatus

Traverse setup with 800 mm left & right movement

Velocity Sensor

Vane anemometers (0–10 m/s)

Balance System

Airflow collection box with calibrated nozzle

Data Acquisition

Automated velocity integration software

Tripod Height

1 meter

Laser Light Distance

3 meters

Fan Mounting Fixture

Adjustable height

Accuracy

±1% of reading

Applicable Standards

IS 555:1979 & IS 1169:1967
