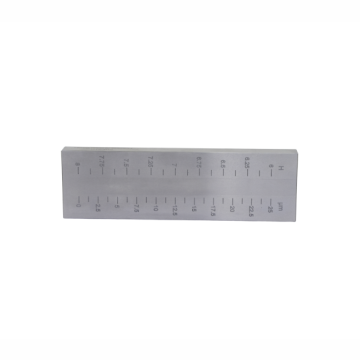

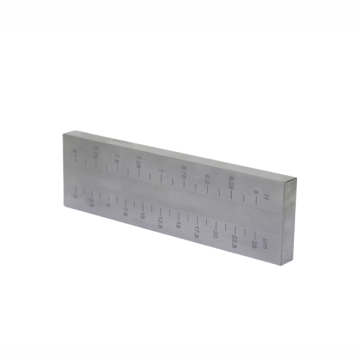

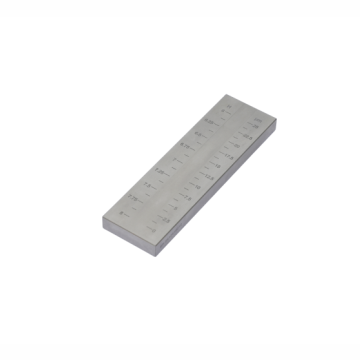

Multi Hatch Gauge

When drawn across a coated surface, the gauge produces a clean grid of intersecting cuts. This grid reveals how firmly the coating adheres to the substrate after the tape is applied and removed. Quality labs and production units rely on it for routine inspection and consistent coating performance across every batch.

Overview of the Multi-Hatch Gauge

The Multi-Hatch Gauge is a handheld inspection tool designed specifically for cross-cut adhesion testing. By making a series of parallel cuts in two directions, it forms a small, even lattice of squares. This pattern helps technicians determine how well a coating layer is bonded to its base material. The tool is ideal for quick and on-site assessment in paint shops and is widely used across metal finishing, furniture production, plastics manufacturing and general coating applications.

Applications

• Enables paint manufacturers to verify coating adhesion during batch quality checks.

• Assists automotive and metal finishing plants in testing the adhesion of painted body components.

• Supports appliance manufacturers in evaluating the durability of surface coatings on panels and enclosures.

• Helps wood and furniture producers examine how well lacquers, varnishes, and finishes adhere.

• Useful in plastic molding units to inspect coating behavior on formed parts.Allows coating suppliers to assess customer samples before releasing materials for use.

Standards & Compliance

The Multi Hatch Gauge is designed to meet international standards for cross-cut adhesion testing that include ISO 2409, ASTM D3359 and DIN EN 1062-11. Its precise spacing, cut depth and grid layout ensure consistent and reliable evaluation of coating adhesion.
