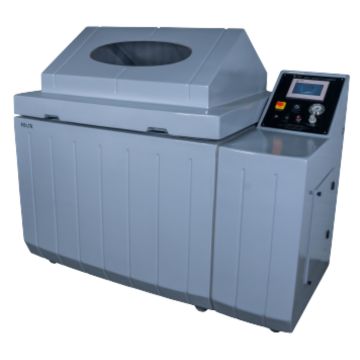

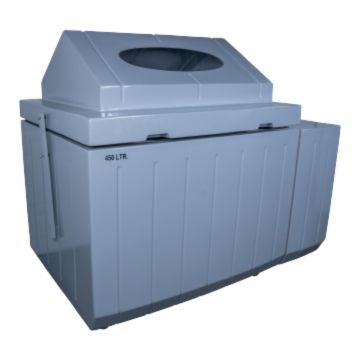

Cyclic Salt Spray Chamber

Description

The Cyclic chamber consists of an in built special reservoir (with float valve) which helps the user in identifying the fluctuation in water level.

Cyclic chamber plays a pivotal role to test the specimen and analyse the quality of material being used by manufacturers. The touch screen model of the Testronix cyclic corrosion test chamber further provides the user with accurate reports and data test results. These test results are attained in the form of a graphical report. The HMI touch screen model also enhances the user experience and make the instrument easy to operate. The chamber body is highly insulated so as to protect the sample from unwanted dust particles and air.

The instrument is also complaint to IP65 which further enhances the life of the chamber body. Testronix also offers various unique features with its instrument. These are best in class top notch features which enhance the user experience and make the instrument easy to operate.

Construction: FRP (Fibre Reinforced Plastic) Body

Features of Touch screen controller:

Microprocessor based model with auto tuning feature
Run time vs temperature graph on screen
Data recording with temperature data reading
USB and pen drive option available to extra data easily
Option available to set PV and SV value
Knox system integrated for data security
User settings can be locked by admin panel protected by password
User can control PID settings through Advanced setting

Testronix Instruments is a leading manufacturer and supplier of Cyclic Salt Spray Chamber in India. For the best price, contact us for a quote or call now!

Features

Inbuilt temperature settings
Air Purge and Auto Tuning Facility
Air Saturator Alarm and Auto Refill facility for safety
Overshoot temperature Alarm Warning System
Construction: FRP Material
Latest Technology Atomiser Timer
Chamber Canopy/ Hood Angle as per ASTM B117
Sample viewing window
Salt Spray Test feature to enable parameters according to test sample
Temperature and timer functions inbuilt to set all test parameters accurately
Robust Construction with FRP Body to withstand extreme temperatures and extreme corrosive environment
Inbuilt Temperature exceed alarm Facility to ensure machine safety
Water low level indicator and in built alarm to guide the user
Less maintenance and easy to operate model
FRP Corrosion resistant body as per ASTM B117
Simple placement of samples
User can control PID settings through Advanced Hysteresis setting
Angle of Canopy maintained in order to restrict flow of droplets directly on the test sample as per ASTM B117 standards
Leak proof Hood and 100% insulation to provide accurate results
Pneumatic Hood (Optional Feature to provide user ease)
Inbuilt Air saturator and Fog Collection unit

Specifications

Parameter	Specification
Display	HMI Based touchscreen 7" TFT LCD Color screen
Compressed Air Requirement	Approx. 7 cfm (Air Compressor not part of supply)
Humidity (RH Range)	30%RH to 95% RH (±5%)
Humidity Temperature Range	40 to 50 ºC ±3ºC (90% above relative humidity)
Dry Cycle Temperature Range	Ambient to 70 ºC ±3ºC at 30% RH
Salt Cycle Temperature Range	5 ºC above Ambient to 35 ºC ±2ºC
Chamber Temperature Least Count	0.1 ºC
Air Saturator Temperature Least Count	0.1 ºC
Air Saturator Temp. Repeatability	±2 ºC
Power	220V, Single phase, 50 Hz, 15 A
pH Value of Salt Solution	6.5 to 7.2 pH
Temperature Control	Inbuilt PID Temperature Controller
Timer (Hour Meter)	6 digits
Test Air Pressure	0.7 Kg/cm² - 1.2 Kg/cm²
Air Regulator	0 to 30 psi
NaCl Solution Tank Capacity	100 Litre.
Note	Main airline pressure regulator with filter in customer scope

Test Capabilities (Standards Compliant):

Salt Spray Test (IEC 60068-2-11 / ASTM B117)
Cyclic Corrosion Test (IEC 60068-2-52)
Humidity Test (ISO 554, ISO 6270-2 CH)
Condensed Water Test
Drying Cycle

Performance Parameters:

Humidity Range	95% RH (saturated) for salt spray & condensation tests
Fog Collection Rate	1 to 2 ml/hour (standard-compliant)
Spray Temperature	35°C ±2°C for NSS
Drying Cycle	Humidity >30%, via direct air heating
Condensation Cycle	40°C, humidity saturated (controlled )

Air Handling & Saturation System:

Preheater: For air preconditioning before saturation
Air Saturator Tower: With thermostatic control, auto-refill, bubble diffuser
Spray Nozzle: High-efficiency, corrosion-resistant acrylic nozzle
Air Filter Regulator: Micro + activated carbon filtration
