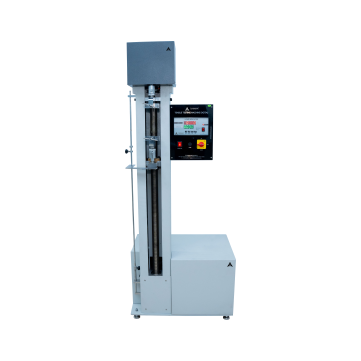

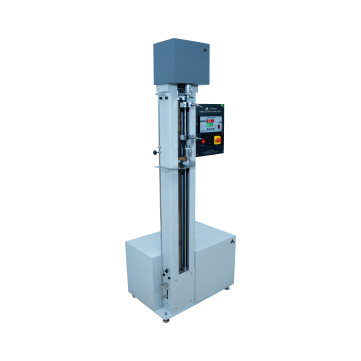

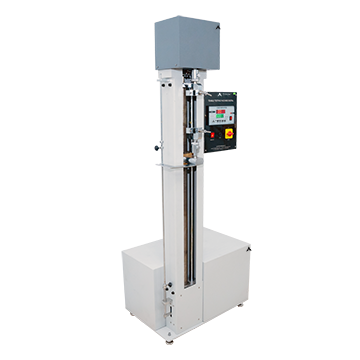

The Crimp Load Tester is designed to measure the mechanical strength and pull-out force of crimped wire terminations used in electrical and electronic assemblies. It ensures that crimped joints meet the required tensile strength, conductor retention, and reliability standards.
Testronix Instruments is a leading manufacturer and supplier of Crimp Load Tester in India. For the best price, contact us for a quote or call us now!
The system applies a controlled and gradually increasing load until the crimp fails, accurately capturing the maximum load capacity. With interchangeable fixtures, digital load indication, and precision load cells, the tester is ideal for quality control, R&D validation, and compliance with wiring safety standards.
|
Parameter |
Specification |
|
Load Cell Capacity |
50 Kgf |
|
Display |
LED (Digital) |
|
Travel Length |
400 mm (customizable on request) |
|
Accuracy |
± 0.5% within entire range |
|
Load Units |
Kgf |
|
Least Count/Resolution |
10gm |
|
Power |
220V, Single Phase, 50 Hz |
|
Speed |
30mm/min to 300 mm/min |
|
Dimensions |
600 x 500 x 1120 mm |
