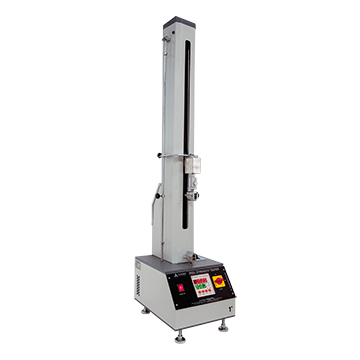

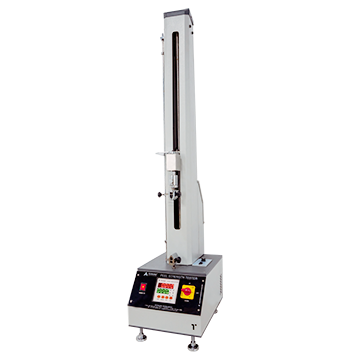

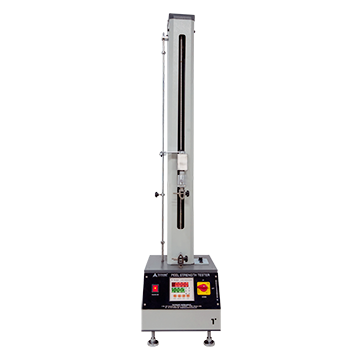

Tape Adhesion Tester is designed to evaluate adhesive strength and bonding performance of pressure-sensitive adhesive tapes. It helps in measuring the force required to peel adhesive tape from a specified surface that enables manufacturers to assess adhesion quality, consistency & performance.
Testronix Instruments is a leading Tape Adhesion Tester manufacturer and supplier in India. To get the best price, request a quote or call us now!
The instrument applies a controlled pulling force to the tape specimen using a motorized testing mechanism. A precision load cell measures the force generated during separation, providing quantitative results for quality control and product development.
Equipped with a microprocessor-based control system, digital display and peak hold facility, the tester supports reliable force measurement and convenient operation. The optional computerized model enables graphical analysis, test data acquisition and report generation for systematic quality evaluation.
|
Parameter |
Specification
|
|
Load Cell Capacity |
20 kgf (customisable on request) |
|
Display |
Digital LED with computer connectivity |
|
Travel Length |
400 mm (customisable on request) |
|
Accuracy |
±0.5% within the entire range |
|
Load Units |
kgf (convertible) |
|
Least Count / Resolution |
0.002 kgf |
|
Power Supply |
220 V, single-phase, 50 Hz |
|
Test Speed |
300 mm/min ±5% |
|
Dimensions |
600 × 500 × 1120 mm |
Specifications are based on the supplied Loop Tack Tester configuration and should be confirmed for the Tape Adhesion Tester model.
