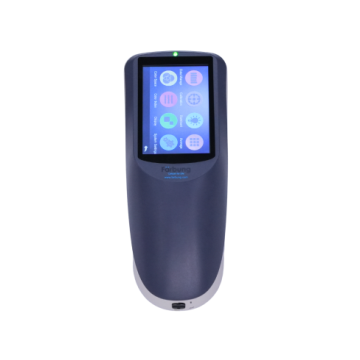

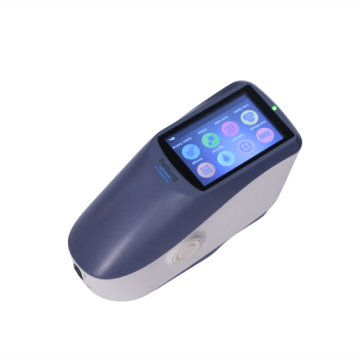

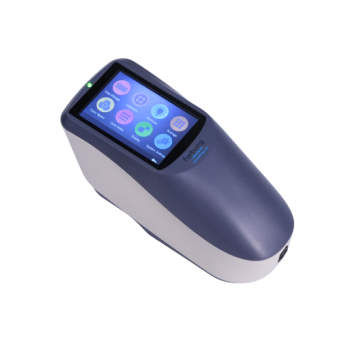

The Spectrophotometer TP900 is a precision tool for accurate color measurement, offering flexibility with multiple illuminant and observer settings. Using the D/8 optical geometry recommended by CIE, it captures both SCI and SCE reflectance data for thorough color analysis. The TP900 gives accurate values of colors in different color spaces and key color difference formulas and indexes.
Testronix Instruments is leading manufacturer and supplier of Spectrophotometer TP900 in India. To Get the best price, request a quote or call us now!
Our advanced Spectrophotometer TP900 is compliant with standards such as CIE No.15, ASTM E1164 and ISO 13655. This equipment is ideal for industries like textiles, coatings, automotive and plastics while ensuring reliable and consistent color control of coatings.
TP900 Spectrophotometer is an instrument designed for precise and consistent color measurement of plastic, coatings and textile products. It captures the complete spectral profile of a sample that enables the detection of subtle color variations that are not visible to the human eye. This makes it highly suitable for color matching, quality control, and routine inspection processes where accuracy is critical.
TP900 Spectrophotometer has an advanced optical system designed using a concentric-circular configuration of mirror/sensor elements that gives high repeatability and stability in measurements. Because of its 45/0 optical arrangement and the use of a 256-element CMOS sensor, this instrument provides for very accurate measurement of surface color. It means that this instrument can be used for applications requiring quantitative color matching and bulk color consistency.
The TP900 supports multiple color spaces, color difference formulas, and illuminants, making it versatile for industries such as plastics, textiles, paints, coatings, printing, packaging, and research laboratories. To simplify operation, TP900 model uses an intuitive 3.5-inch TFT touchscreen interface with large internal storage and USB connectivity that allows seamless data management.
With compliance and respect for International Standardization, such as CIE No 15, ASTM E1164 and DIN 5033, the instrument guarantees repeatable standard results regardless of the environmental condition. It is the ultimate solution for laboratory environments and production processes where accurate colour evaluation is required.
Advanced concave grating optical system ensures accurate spectral analysis
High-resolution 256-element CMOS sensor for precise and repeatable measurements
LED illumination system with long operational life and low power consumption
Supports multiple color spaces and color difference formulas for comprehensive analysis
3.5-inch TFT touchscreen for easy and intuitive operation
Fast measurement time of approximately 1.5 seconds
Dual observer angles (2° and 10°) for flexible evaluation
Wide range of illuminants to simulate different lighting conditions
Large internal memory for storing standards and sample data
USB interface for quick data transfer and integration with PC software
Durable and stable calibration system for long-term reliability
Suitable for diverse industries including plastics, textiles, paints, coatings, printing, and packaging
|
Optical Geometry |
45/0 (45 Ring -shaped illumination ,0 degree viewing angle) |
|
Integrating Sphere Size |
48mm |
|
Light Source |
Combined LED Light |
|
Spectrophotometric Mode |
Concave Grating |
|
Sensor |
Double Array CMOS Image Sensor, 256 Image Element |
|
Wavelength Range |
400-700nm |
|
Wavelength Interval |
10nm |
|
Measuring Aperture |
8mm |
|
Color Space |
XYZ, , CIE LUV, LCh , Hunter LAB, CIE Lab, RGb, Yxy |
|
Color Difference Formula |
ΔE*ab, M*uv, ΔE CMC (2:1), ΔE*94, ΔE*00, ΔE (Hunter) |
|
Other Colorimetric Index |
Wl(ASTM E313, CIE/ISO, AATCC, Hunter), Yl(ASTM D1925, ASTM 313), Color Strength, Staining Fastness, Metamerism Index Ml, Color Fastness, Opacity |
|
Observer Angle |
2°/10° |
|
Illuminant |
D65, A, C, D50, D55, D75, Fl, F2, F3, F4, F5, F6, F7, F8, F9, F10, Fl 1, Fl 2 |
|
Displayed Data |
Displayed Data
|
|
Measuring Time |
1.5 S |
|
Repeatability |
MAV/Standard Direction within 0.17(4w to 7nm: Within 0.27) |
|
Measurement Mode |
Single Measurement, Average Measurement (2-99) |
|
Battery |
Li-ion battery. 5000 measurements within 8 hours |
|
Dimension |
L*W*H = 184*77* 105mm |
|
Weight |
600g |
|
Illuminant Life Span |
Over 5 years, more than 3 million measurements performed |
|
Display |
3.5-inch TFT color LCD, Capacitive Touch Screen |
|
Standard Accessory |
Built-in Li-ion battery, dust cover, white and black calibration cavity, power adapter, user manual, and PC software |
|
Data Storage |
Standard 500 Pcs, Sample 20000 Pcs |
|
Language |
English, Chinese |
|
Storage Environment |
0- 50°C, 0-85%RH (no condensing) |
|
Operating Environment |
0-40°C, 0-85%RH (no condensing), Altitude< 2000m |
|
Data Port |
USB |
