Salt Spray Chamber FRP Digital

Salt Spray Chamber FRP Digital



Salt Spray Chamber FRP Digital

4.7 of 5

Model No: 0

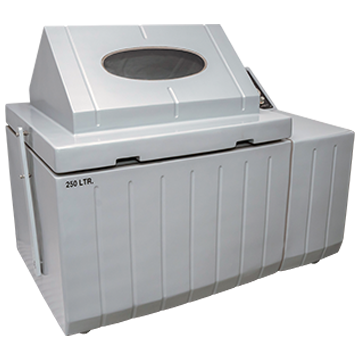

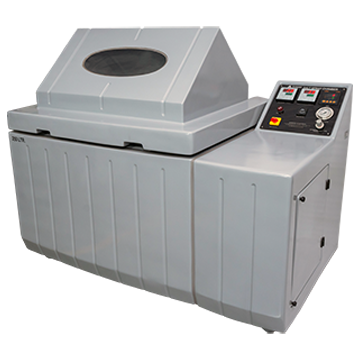

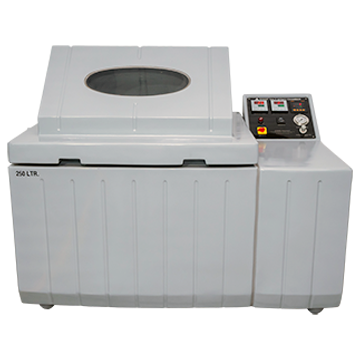

Salt spray chamber FRP (Fibre Reinforced Plastic) is the latest technology corrosion test chamber manufactured with a high-quality FRP (Fibre Reinforced Plastic) body. The instrument has a rugged body with compliance to ASTM B117 standards. The unique FRP body has resistance to high temperature and can withstand extreme corrosive environment. With the help of the latest technology FRP body the .. Read more


Need more information or have a question?

Contact Us
Product Description

Salt spray chamber FRP (Fibre Reinforced Plastic) is the latest technology corrosion test chamber manufactured with a high-quality FRP (Fibre Reinforced Plastic) body. The instrument has a rugged body with compliance to ASTM B117 standards. The unique FRP body has resistance to high temperature and can withstand extreme corrosive environment. With the help of the latest technology FRP body the instrument has long running life and is capable for conducting the salt spray test for days. The salt spray chamber consists of an in built special reservoir (with float valve) which helps the user in identifying the fluctuation in water level. Salt Spray Chamber is one the most accurate instruments for measuring the corrosion resistance of coating when exposed to highly corrosive environment. In industries, the material is exposed to various types of climatic conditions and chemical fumes which cause corrosion of components and parts. Hence a salt spray chamber plays a pivotal role to test the specimen and analyse the quality of material being used by manufacturers. Salt spray chamber consists of a triple wall which ensures 100% insulation.
It follows all industry standards i.e ASTM B117 and JIS Z 2371.

Product Features

    • Inbuilt temperature settings

    • Construction: FRP Material

    • Latest Technology Atomiser Timer

    • Chamber Canopy/ Hood Angle as per ASTM B117

    • Sample viewing window

    • Salt Spray Test feature to enable parameters according to test sample

    • Temperature and timer functions inbuilt to set all test parameters accurately

    • Robust Construction with FRP Body to withstand extreme temperatures and extreme corrosive environment

    • Less maintenance and easy to operate model

    • FRP Corrosion resistant body as per ASTM B117

    • Simple placement of samples

    • User can control PID settings through Advanced Hysteresis setting

    • Angle of Canopy maintained in order to restrict flow of droplets directly on the test sample as per ASTM B117 standards

    • Leak proof Hood and 100% insulation to provide accurate results

    • Pneumatic Hood (Optional accessory)

    • Inbuilt Air saturator and Fog Collection unit (Optional accessory)

Specification

  • Test Chamber Temperature Range

     35°C

    Chamber Temperature Least Count

     0.1°C

    Chamber Temperature Repeatability

     Uniformity ±2°C

    Air Saturator Temperature Range

     Upto 50°C

    Air Saturator Temperature Least Count

    0.1°C

    Air Saturator Temperature Repeatability

    ±1°C

    pH value of Salt Solution

    6.5 to 7.2 pH

    In built PID temperature controller

    Yes

    Timer

     Upto 99999 Hours

    Test Air Pressure

    0.7 Kg/ cm²&   1.2 Kg/ cm²

    Air Regulator

     0 To 7 Kg/ cm²

    Air Purging Facility

    Yes

    Fog Collector

    Yes

    Fog Collection

    1-2ml per 80 cm² per hour as per standards

    Measuring Cylinder (External)

    Available (Capacity:50ml)

    Power

    220V, Single phase, 50 Hz, 15 A

    Reservoir Tank for Solution

    Yes Included





    Optional accessories:

    1. Air saturator- to saturate the air inside the chamber for compliance of ASTM B117

    2. Fog collection unit

    3. pH meter- to check the pH of salt solution

    4. pneumatic opening of canopy for ease in operation



    Inside Dimensions:

    L    x  B    x    H

    250 LTR

    800 x 500 x 500 mm

    450 LTR

    1000 x 700 x 750 mm

Review

Have a Question?

Connect with our customer support manager to get the product details & Quote.

Please fill this form to request a call-back from our
customer support manager with pricing and details.

We will also send you our product PDF for your reference.

Word of Testimony

What our customer says about us is important to us.

Testronix offers very prompt after sales service and support. They have highly trained engineers at all their branch offices. They offer high quality testing instruments at affordable prices. We highly recommend Testronix

Arun Dubey

Testronix has set up our new lab in all our plants throughout india. They provide value for money and very affordable testing instruments. Their team is highly trained and has good technical knowledge about the products.

Karan Singh

Trusted by market leaders —

FAQ's

Q. What is the use of a salt spray test chamber?

The Salt spray chamber is also known as a Corrosion Test Chamber. the Salt Spray Chamber FRP Digital is a high-level lab testing instrument that helps to measure the corrosion resistance of coatings. Oftentimes, exposing a sample to a corrosive atmosphere makes it susceptible to rusting. Especially in certain industries that use power coated components and parts. So, with the help of a Salt Spray Salt Chamber, one can calculate the corrosive strength of the sample and the estimated life that a customer can receive.

Q. How does a salt spray chamber work?

This type of testing helps paint and plating & automotive component manufacturers to clarify and double-check the quality of the specimens developed by their manufacturers. The corrosion test cabinet or the salt spray test chamber is well insulated. Once the sample is placed inside, the insulated salt spray simulation chamber body ensures that the specimen is safe from air and dust particles which could interfere with the test results.

Q. What is the price of a salt spray chamber in India?

The price of a salt spray chamber can differ depending on the model and instrument. While the price range starts from as low as INR 150,000, it can go up to INR 800,000 for high-end instruments. You may find the same product in different price ranges in the market. Most of the cheap products come from unbranded manufacturers/traders with no guarantee while the branded products of reputed manufacturers maintain high quality.

Q. From where to buy a genuine salt spray chamber?

You need to find a renowned manufacturer to buy a genuine Salt Spray chamber. There are several traders in the market, but not everyone is a genuine manufacturer and can provide you with authentic and high-quality products. For that reason, you need to check if they have their own manufacturing unit and dedicated service set up. Customers must always check if the manufacturer has a dedicated and reliable in-house service set up.

Q. How to get a free quotation for a salt spray test chamber?

To get a free price quotation for salt spray chamber you can contact the company with your requirement, details from their mail id and phone number. To get a quotation from Testronix Instruments fill the form with requirements and you will get an instant call-back from the sales for the techno-commercial offer. You can connect with us anytime at +91 9313 140 140 or info@testronixinstruments.com
