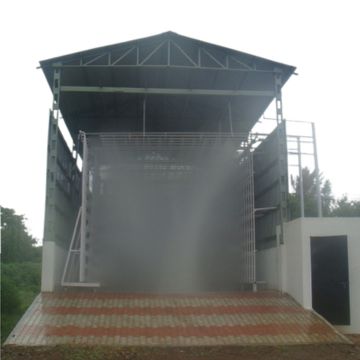

Rain Test Chamber

Description

Engineered with robust stainless-steel construction, precision water flow control, and programmable test parameters, the chamber ensures reliable, repeatable, and compliant testing for electrical, automotive, electronic, and consumer products.

Testronix Instruments is a leading manufacturer and supplier of rain test chamber in India. For the best price, contact us for a quote or call now!

Features

Precision Jet Nozzle – 12.5 mm stainless steel nozzle with calibrated flow and pressure control.
Programmable Control – PLC-HMI system for test sequencing, timing, and data logging.
Rotary Turntable – Variable-speed table ensures uniform exposure from all directions.
Closed-Loop Water System – Built-in sump tank with filtration reduces water consumption.
Robust Build – SS interior, leak-proof design, and corrosion-resistant structure.
User Safety – Door interlock, emergency stop, low-water protection.

Specifications

Parameter	Specification
IP Rating Supported	IPX6 (powerful water jet protection)
Test Method	12.5 mm diameter jet nozzle
Water Flow Rate	100 ± 5 L/min
Water Pressure	~100 kPa at nozzle (as per IEC standard)
Spray Distance	2.5 – 3.0 m from nozzle to sample
Test Duration	1 min/m² (minimum 3 min total)
Turntable Diameter	400–800 mm (model dependent)
Turntable Speed	1–5 rpm, programmable
Chamber Material	Inner & Outer chamber SS
Water System	Closed-loop recirculation with filtration; inline flow meter and pressure gauge
Control System	PLC + 7” HMI touch display
Safety Features	Door interlock, pump overload, low water cutoff, emergency stop
Power Supply	230 V AC, 50 Hz (single-phase)
Water Requirement	Filtered/softened water; inlet pressure 2–3 bar
