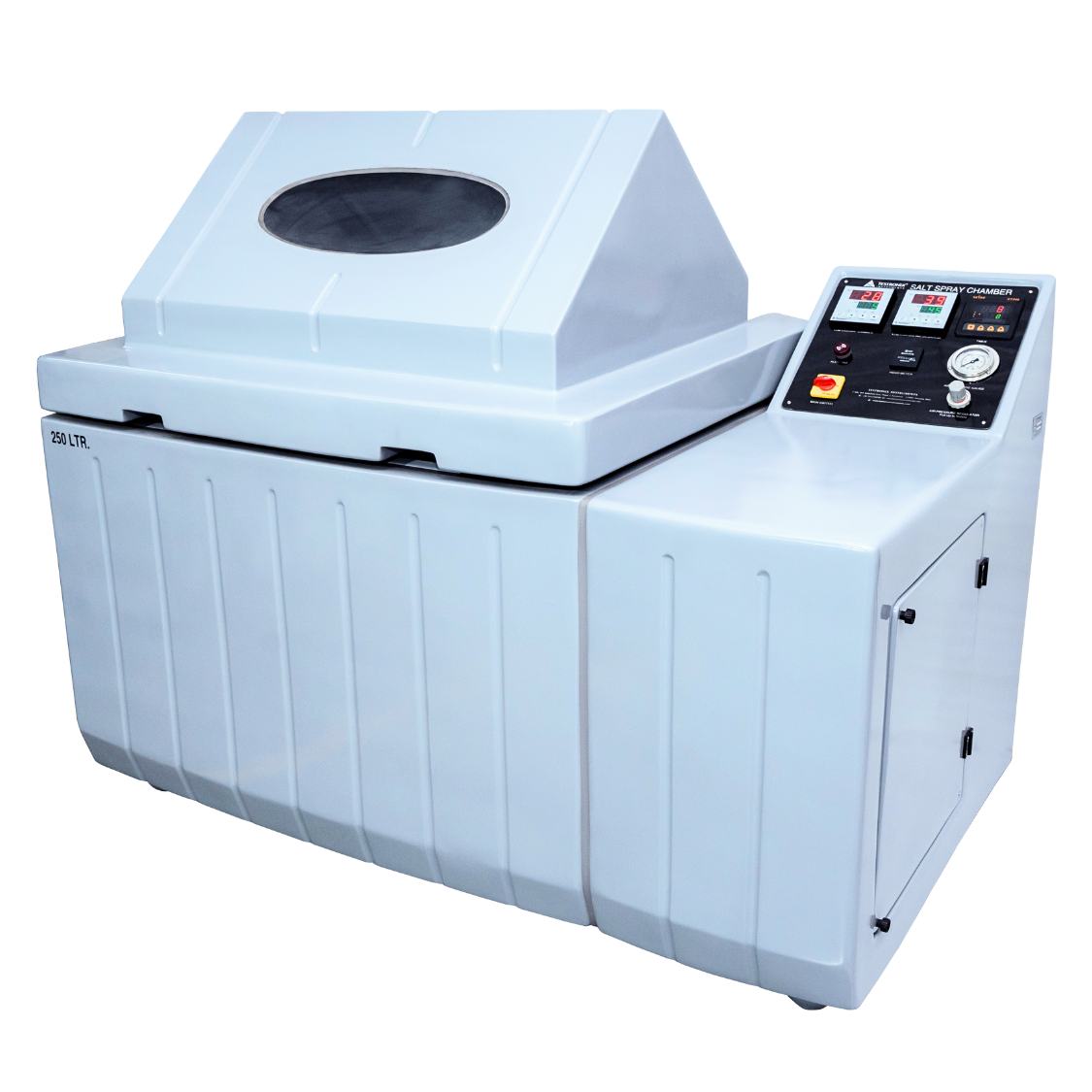

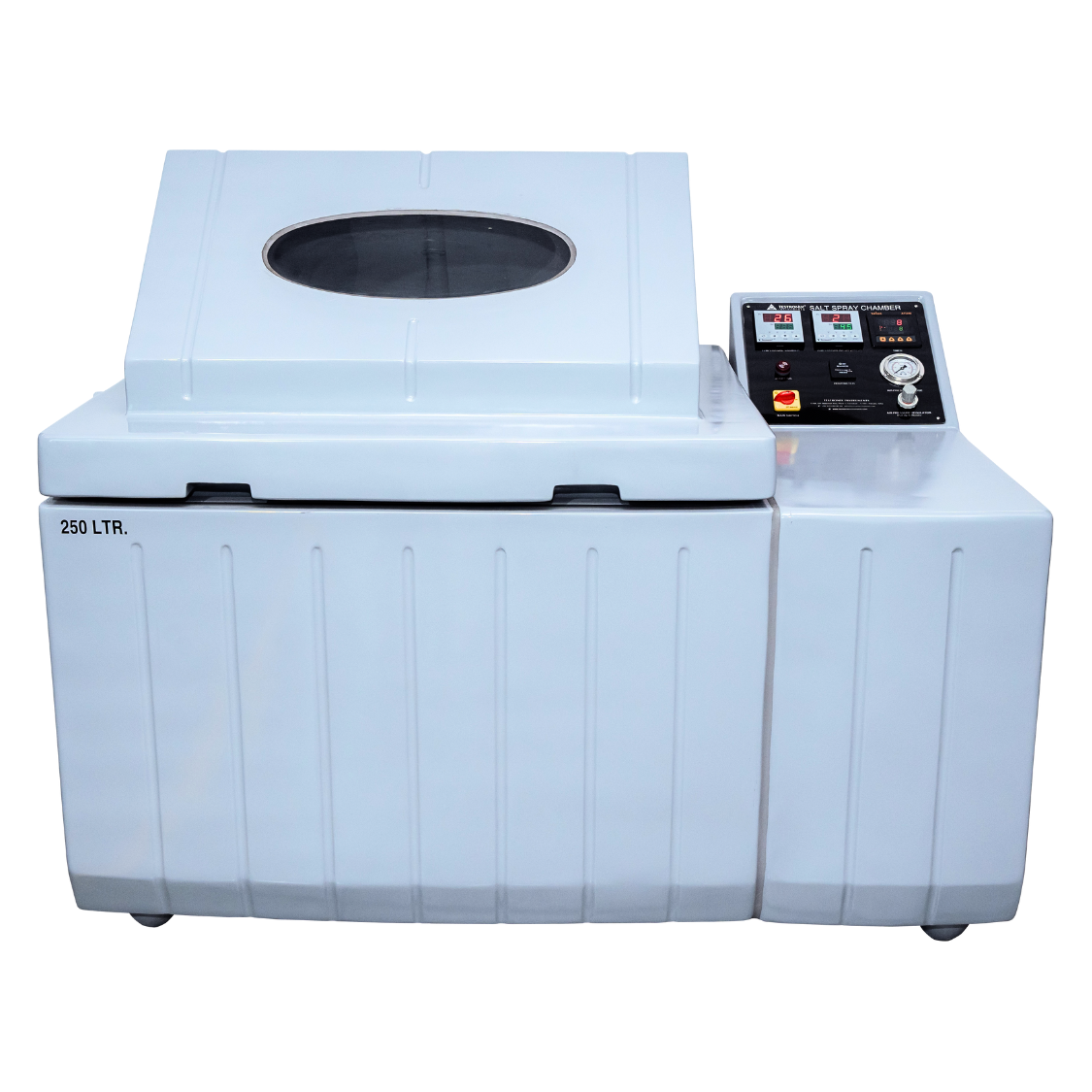

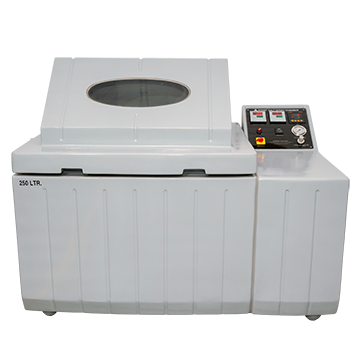

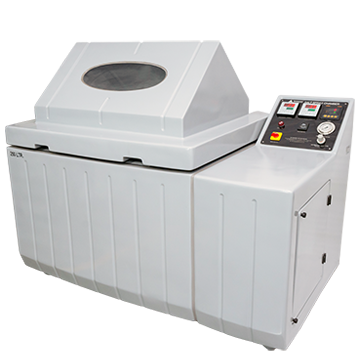

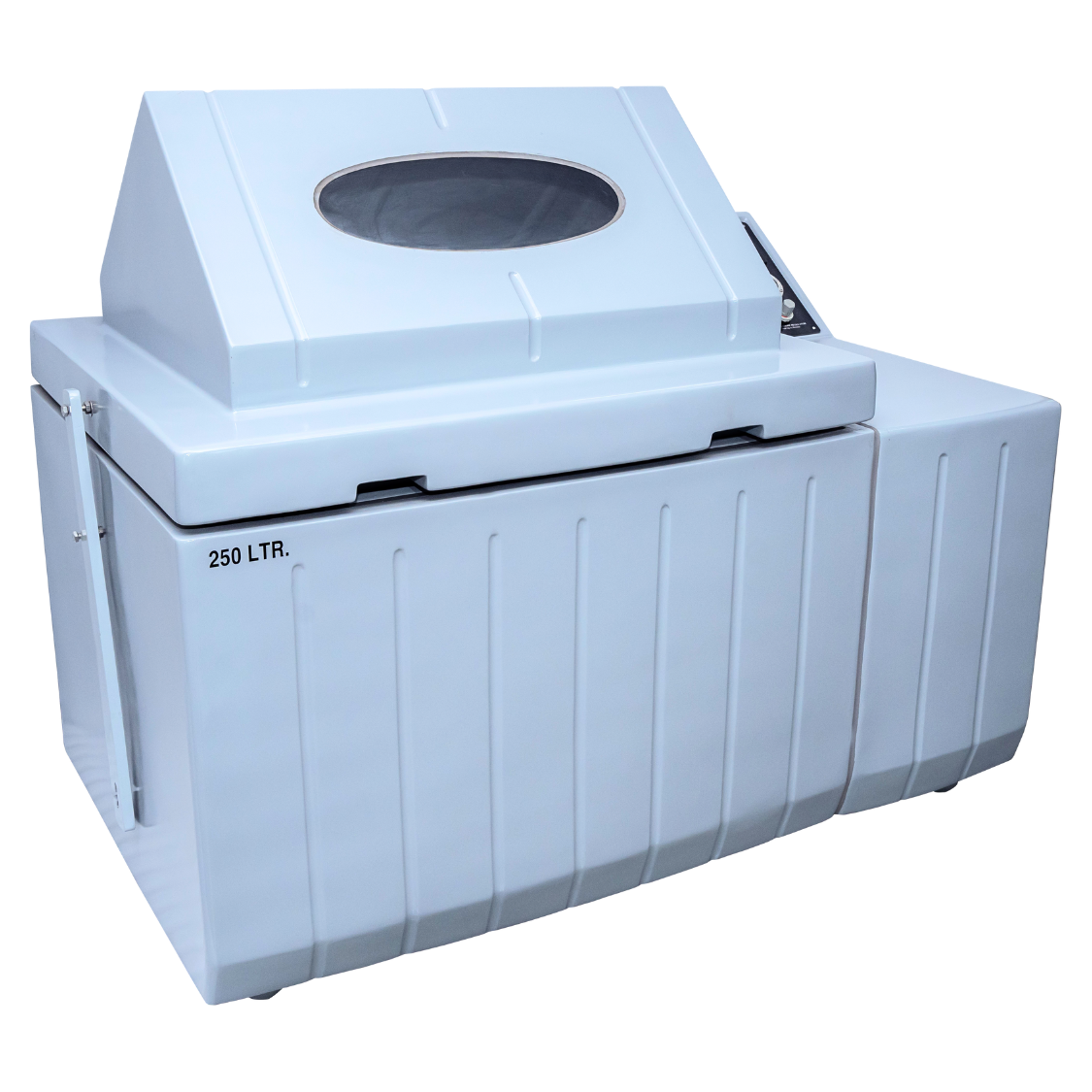

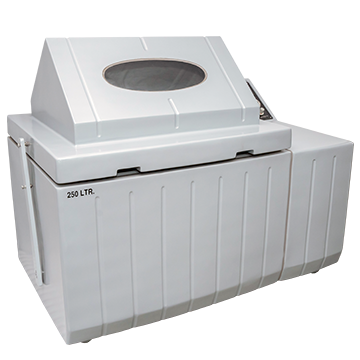

CASS Cum Salt Spray Chamber

CASS Cum Salt Spray Chamber



CASS Cum Salt Spray Chamber

4.7 of 5

Model No: TX - CASS

Corrosion is the deterioration of a material, usually a metal, due to a chemical reaction to its environment. When corrosion occurs, the material loses its integrity and strength and can become brittle, flaky, and perforated. If left unchecked, corrosion can eventually cause complete failure of the material. Given the importance of maintaining the quality of materials, it is essential to perfor.. Read more


Need more information or have a question?

Contact Us

Corrosion is the deterioration of a material, usually a metal, due to a chemical reaction to its environment. When corrosion occurs, the material loses its integrity and strength and can become brittle, flaky, and perforated. If left unchecked, corrosion can eventually cause complete failure of the material. Given the importance of maintaining the quality of materials, it is essential to perform regular transparency testing on surface coatings to identify any areas of corrosion.



Thus, we at Testronix will provide you with a high-quality testing instrument that will help you to assess the resistance of surface coatings against corrosion. Cass cum salt spray chamber is an instrument that has been designed as per industrial standards and will provide you with an accurate analysis of corrosion resistance properties of materials with ease. It has triple glass wool insulation and inbuilt PID temperature settings that will help you to create an accurate analysis of the test.

Working Principle of CASS Cum Salt Spray Chamber

The working principle of the CASS Cum Salt Spray Chamber is based on to combine a solution of demineralised water and sodium chloride (NaCl) into a closed chamber where the specimen is placed forming a corrosive environment around the chamber to measure the corrosion resistance of the sample. The machine carries 4 major parts 1) inner chamber, 2) reservoir tank, 3) air saturator 4) electrical panel chamber.

All these parts are extremely crucial for the functioning of the machinery properly as the inside chamber is important for positioning the sample, the reservoir tank carries the water and the air saturator supplies the humified air into the chamber resulting in fog concentration within the inner chamber and the electrical chamber covers overall functioning.

    • Inbuilt temperature settings
    • Construction: FRP Material
      Latest Technology Atomiser Timer
    • Chamber Canopy/ Hood Angle as per ASTM B117
    • Sample viewing window
    • Salt Spray Test feature to enable parameters according to test sample
    • Temperature and timer functions inbuilt to set all
    • test parameters accurately
    • Less maintenance and easy to operate model

  • Test Chamber Temperature Range 35°C
    Chamber Temperature Least Count 0.1°C
    Chamber Temperature Repeatability Uniformity ±2°C
    Air Saturator Temperature Range  Upto 50°C
    Air Saturator Temperature Least Count 0.1°C
    Air Saturator Temperature Repeatability ±1°C
    pH value of Salt Solution 6.5 to 7.2 pH
    Timer 6.5 to 7.2 pH
    Test Air Pressure 0.7 Kg/ cm²& 1.2 Kg/ cm²
    Air Regulator 0 To 7 Kg/ cm²
    Air Regulator 0 To 7 Kg/ cm²
    Air Purging Facility Yes
    Fog Collector Yes
    Fog Collection 1-2ml per 80 cm² per hour as per standards
    Power 220V, Single phase, 50 Hz, 15 A

How CASS Cum Salt Spray Chamber Works?

View this video to learn how this product works

Have a Question?

Connect with our customer support manager to get the product details & Quote.

Please fill this form to request a call-back from our
customer support manager with pricing and details.

We will also send you our product PDF for your reference.

Call our Experts for the Best Offer
+91 9313140140

Word of Testimony

What our customer says about us is important to us.

We want to thank your team for such prompt support. Your instruments are very durable. We are impressed with the design engineering. All the products are very easy to operate. The guidance provided by your team is highly appreciated. We look forward to working with an organisation like yours

Manish Aggarwal

We are highly impressed with the Quality and support Testronix has provided. Testronix has set up our entire quality testing laboratory and we are fully satisfied with all their instruments. We highly recommend this brand

Vikas Singh

Trusted by market leaders —

FAQ's

Q. What is the purpose of performing the Cass Cum Salt Spray Test?

The Testronix Cass Cum Salt Spray Chamber is designed to assess the resistance of surface coatings against corrosion, particularly aluminium alloys. It helps in identifying the effect of corrosion and ensures the quality and durability of materials under harsh environmental conditions.

Q. What are the key features of the Testronix Cass Cum Salt Spray Chamber?

The Testronix Cass Cum Salt Spray Chamber comes with triple glass wool insulation, providing efficient thermal isolation. It also has inbuilt PID temperature settings that ensure precise and stable test conditions, leading to accurate test results. This testing chamber is designed according to industrial standards, guaranteeing reliable and consistent performance.

Q. Can Cass Cum Salt Spray Chamber accommodate multiple samples for testing?

Yes, the chamber's design allows for testing multiple samples simultaneously. Its spacious interior enables efficient testing and comparison of various materials or coatings under the same corrosive conditions, saving time and resources.

Q. What is the temperature range of this quality testing equipment?

The Cass Cum Salt Spray Chamber is designed to test quality and ensure the reliable performance of metal products. This advanced testing chamber is capable of reaching temperatures from 35°C with a least count of 0.1°C and repeatability of ±2°C. This allows manufacturers to trust that the equipment can accurately test their product in a safe environment.

Q. What industrial standards does the Testronix Cass Cum Salt Spray Chamber comply with?

The Testronix Cass Cum Salt Spray Chamber is designed and built in compliance with relevant industrial standards for corrosion testing. It meets international standards like ASTM B117, JIS Z 2371, and ISO 9227, ensuring that the tests performed with this chamber adhere to established guidelines and regulations.
