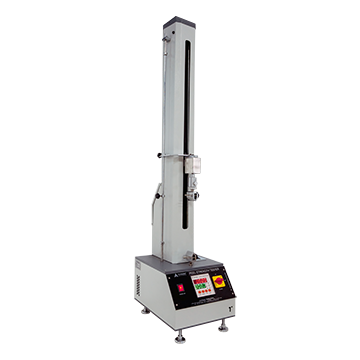

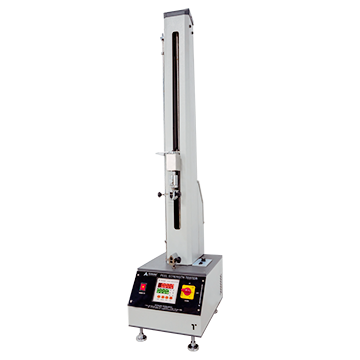

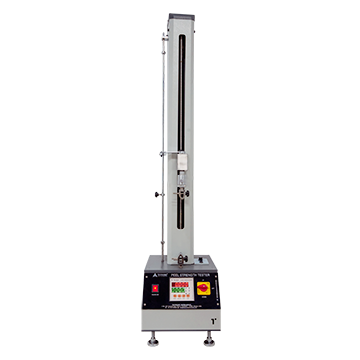

The Testronix Perforation Tester is designed to determine the force required to perforate or puncture flexible materials, films, sheets & packaging substrates. It helps evaluate the material's resistance to penetration and provides valuable information about its strength, durability and suitability for specific packaging applications.
Testronix Instruments is a leading Perforation Tester manufacturer and supplier in India. To get the best price, request a quote or call us now!
During testing, a specified probe or puncture element applies force to the test specimen until perforation occurs. The force required to penetrate the material is measured using a precision load cell and displayed digitally, enabling objective evaluation of material performance.
The instrument is suitable for quality control laboratories, packaging manufacturers and R&D departments seeking consistent assessment of material resistance to puncture and penetration.
The following specifications should be finalised according to the selected Testronix model.
| Parameter
|
Specification
|
|
Load Cell Capacity |
20 kgf (customizable on request) |
|
Display |
Digital LED with computer connectivity |
|
Travel Length |
400 mm (customizable on request) |
|
Accuracy |
±0.5% within the entire range |
|
Load Units |
kgf (convertible) |
|
Least Count / Resolution |
0.002 kgf |
|
Power Supply |
220 V, single-phase, 50 Hz |
|
Test Speed |
300 mm/min ±5% |
|
Dimensions |
600 × 500 × 1120 mm |
