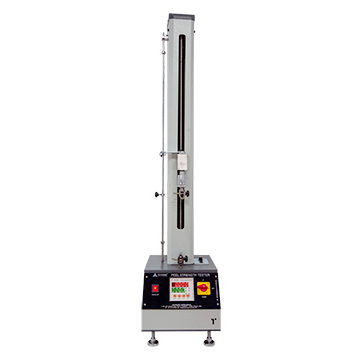

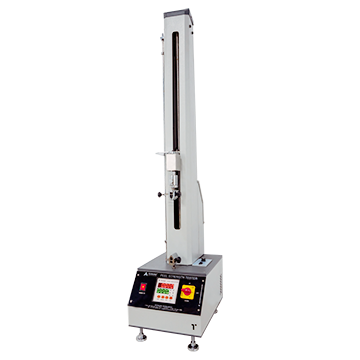

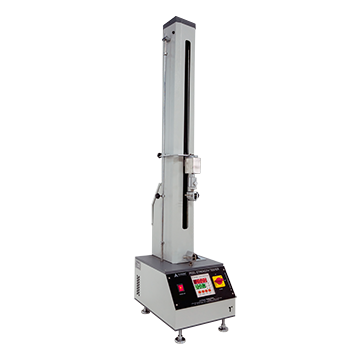

The Testronix Loop Tack Tester is designed to evaluate the initial tack and bonding performance of pressure-sensitive adhesives used in labels, tapes, films and other adhesive-coated materials. The instrument measures the force required to separate an adhesive loop from a specified contact surface, providing an indication of its immediate adhesion characteristics.
Testronix Instruments is a leading Loop Tack Tester manufacturer and supplier in India. To get the best price, request a quote or call us now!
The specimen is formed into a loop and brought into controlled contact with the test surface. The instrument records the force generated during separation through a precision load cell & enables objective assessment of adhesive performance.
With a microprocessor-based control system, digital force indication and motor-driven movement, the tester supports consistent testing and repeatable measurements. The computerized model enables graphical analysis, data acquisition and report generation for quality assurance and product development.
|
Parameter |
Specification |
|
Load Cell Capacity |
20 kgf (customizable on request) |
|
Display |
Digital LED with computer connectivity |
|
Travel Length |
400 mm (customizable on request) |
|
Accuracy |
±0.5% within the entire range |
|
Load Units |
kgf (convertible) |
|
Least Count / Resolution |
0.002 kgf |
|
Power Supply |
220 V, single-phase, 50 Hz |
|
Test Speed |
300 mm/min ±5% |
|
Dimensions |
600 × 500 × 1120 mm |
