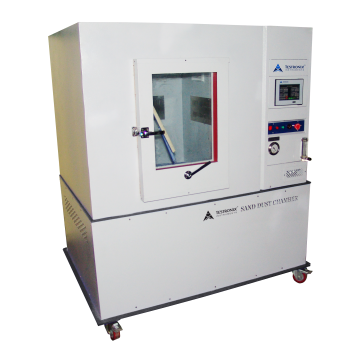

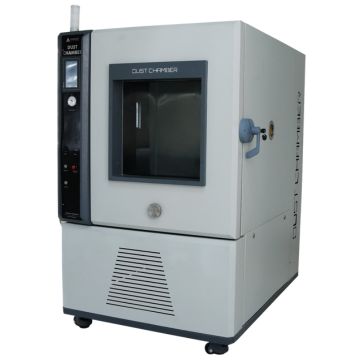

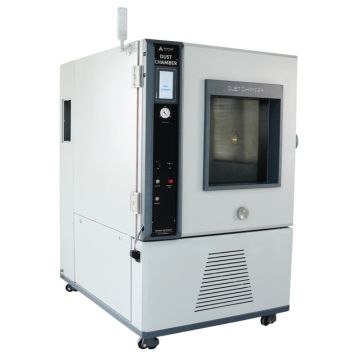

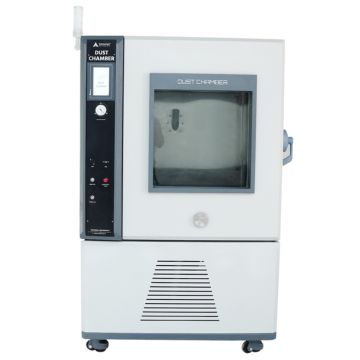

The Testronix Dust Chamber is reliable and efficient testing equipment specifically designed for assessing the dust resistance of various components. Its interior is lined with glass reinforced Fiber Sheet to ensure durability and longevity.
Equipped with high-capacity blowers, the chamber facilitates uniform agitation of dust particles, ensuring accurate and consistent testing results. The airtight construction of the chamber guarantees that no external contaminants interfere with the testing process.
The outer body is constructed using Mild Steel duly Powder coated, providing strength and resistance to wear and tear. With a size of 1200 × 800 × 800 mm (modifiable upon request) and a power consumption of 2 KW, this chamber offers versatility and energy efficiency.
It complies with industry standards. Additionally, the chamber is equipped with castor wheels for easy mobility and features a separate control panel that includes a digital preset timer (with a memory backup of up to 999 hours) and an hour meter for user-friendly controls. The Testronix Dust Chamber is a reliable choice for conducting dust resistance tests accurately and efficiently.
Chamber Size: 1200 × 800 × 800 mm (customizable on request)
· Reinforced inner lining with GRP (Glass-Reinforced Plastic) sheet for abrasion and chemical resistance
· HMI with PLC control for intuitive user interaction and process automation
· Separate control panel featuring:
· Airtight construction to eliminate external contamination
· Movable design with industrial-grade castor wheels
· Standard-compliant testing for dust ingress per IP standards
|
Parameter |
Specification |
|
Line Voltage |
220V ±10%, 50 Hz |
|
Temperature Range |
15°C to 45°C |
|
Humidity Range |
45% to 75% RH |
|
Chamber Dimensions |
1200 × 800 × 800 mm (modifiable on request) |
|
Power Consumption |
Max. 3000 VA |
|
Heater Capacity |
150 W |
|
Depression Turbine Power |
1100 VA |
|
Dust Circulation Turbine |
1100 VA |
|
Air Flow Totalizer 1 |
0.06 – 10 m³/h ±3% (0.06–0.12), ±2% (>0.12) |
|
Air Flow Totalizer 2 |
0.016 – 6 m³/h ±3% |
|
Depression Sensor |
Control 694.917015010 (0–50 mbar = 4–20 mA) |
|
Max. Permissible Pressure |
200 mbar |
|
Timer |
range: 0–9999 hours |
