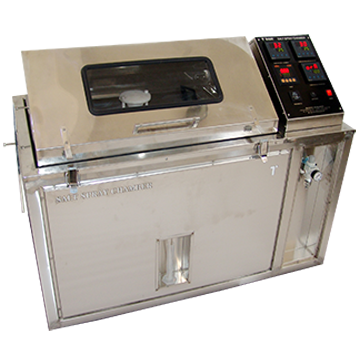

Corrosion Test Chamber




Corrosion Test Chamber

4.7 of 5      In Stock

Model No: TX- SST D

  • Brand:

  • Testronix Instruments

Corrosion test chamber is one of the widely used lab testing equipment that has been made to test the corrosion resistance properties of surface coatings. The salt spray test conducted with the help of this lab testing equipment will help the manufacturers to make sure that quality products will be delivered to the customers with ease. This testing instrument has been made in accordance with industry standards that include ASTM B117 and JIS Z 2371. This makes it easy for the product manufacturers to accurately determine the corrosion-resistance properties of the surface coatings and make sure that the right products will be delivered to the customers.


Need more information or have a question?

Contact Us

This test chamber will produce the salt mist, where the product manufacturers can place the materials, which needed to be tested. When these materials will be exposed to a salt-laden environment, generated in this corrosion test chamber, then users can easily test their product's corrosion resistance properties.



This high-quality lab testing instrument has been made with a high-quality stainless steel chamber with inbuilt temperature settings.

    • Inbuilt temperature settings
    • Salt Spray Test feature to enable parameters according to test sample
    • Temperature and timer functions inbuilt to set all test parameters accurately
    • Robust Construction with stainless steel body
    • Less maintenance and easy to operate model
    • Stainless steel Corrosion resistant body as per ASTM B117
    • Simple placement of samples with extra hooks
    • User can control PID settings through Advanced Hysteresis setting
    • Angle of Canopy maintained in order to restrict flow of droplets directly on the test sample as per ASTM B117 standards
    • Leak proof Hood and 100% insulation to provide accurate results

    • Construction: Inside Tank & Canopy Heavy Grade Laser Cut 316 Grade Stainless Steel (certified)
    • Latest Technology Atomiser Timer
    • Chamber Temperature : Ambient to 35 +/- 2 °C
    • Test air pressure 0.7Kg/cm² - 1.2Kg/cm²
    • Power 220V, Single phase, 50 Hz, 15 A
    • Ph Value of salt solution 6.5 to 7.2 pH
    • 107 ± 10° angle canopy
    • Sample viewing window

    Optional accessories:
    1.    Air saturator- to saturate the air inside the chamber for compliance of ASTM B117
    2.    Fog collection unit
    3.    pH meter- to check the pH of salt solution
    4.    pneumatic opening of canopy for ease in operation

    Inside Dimensions:

    L    x  B    x    H

    260 LTR

    800 x 520 x 580 mm

    475 LTR

    950 x 750 x 750 mm

Working Principle of the Corrosion Test Chamber

The working principle of the corrosion test chamber is to release salt spray through fog concentration, creating an environment around the specimen that attracts rusting henceforth, measuring the resistance of the specimen to withstand corrosion or rustproof abilities. The instrument carries a 7-alarm feature tagged along safeguarding the machinery from severe hazards and ensuring accurate test outputs.

Have a Question?

Connect with our customer support manager to get the product details & Quote.

Please fill this form to request a call-back from our
customer support manager with pricing and details.

We will also send you our product PDF for your reference.

Call our Experts for the Best Offer
+91 9313140140

Word of Testimony

What our customer says about us is important to us.

Testronix team has been very helpful in selecting the right equipment and giving timely delivery .Wish them all the success.

Amit Tyagi

Emami

The entire team at Testronix is highly professional. They provide timely delivery with world class features in all their instruments. They also provide customised instruments as per the needs of the user which no other dealer/trader can provide. We are very much satisfied with their products

Maneesh Bhatnagar

Trusted by market leaders —

FAQ's

Q. What is the use of a corrosion test chamber?

It's a corrosion test simulating corrosive conditions to determine for how much more time products will be present against rust, salt spray or moistened moisture.

Q. How does a corrosion test chamber work?

This chamber simulates controlled environmental conditions, such as those of salt mist or humidity, to speed up the corrosion process. This is done in order to know how resistant the material is.

Q. What is the price of a corrosion chamber in India?

Cost is usually between INR 1,00,000 and INR 5,00,000 depending on size, spec, and manufacturer.

Q. How does the corrosion tester help in improving product quality?

It allows manufacturers to ensure that the materials and coatings used will stand even in quite adverse environments, therefore enhancing durability and lifespan.

Q. Where can I purchase a corrosion test chamber or get technical support?

You may buy from Testronix. All these sellers offer technical support for the products.
