Box Compression Tester 450mm

Box Compression Tester 450mm



Box Compression Tester 450mm

4.7 of 5

Model No: TX-BCT 450

Box Compression Tester Mini is a unique model in box compression tester series. It is the smallest model of compression strength testers. The instrument has a small platform size which helps in testing the compression strength of smaller boxes and corrugated cartons. This instrument provides the user with compressive strength values on its unique digital display. Box Compression Tester helps th.. Read more


Need more information or have a question?

Contact Us
Product Description

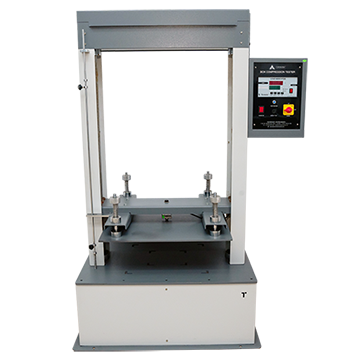

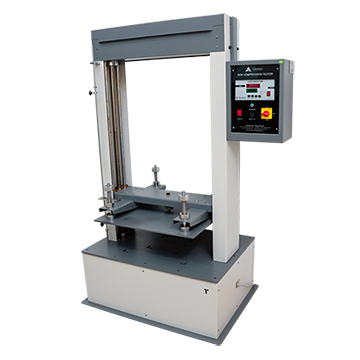

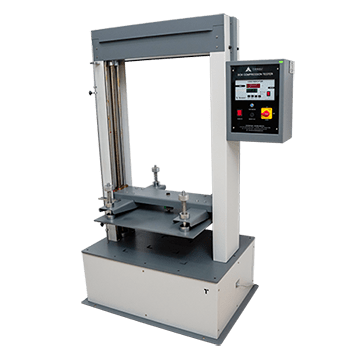

Box Compression Tester Mini is a unique model in box compression tester series. It is the smallest model of compression strength testers. The instrument has a small platform size which helps in testing the compression strength of smaller boxes and corrugated cartons. This instrument provides the user with compressive strength values on its unique digital display. Box Compression Tester helps the user in calculation of compression strength or stack load test of smaller carton upto a size of 400mm.

The box compression tester mini comprises of a smaller platform however the robust body and top in class features help corrugated box manufacturers. The box compression tester mini manufactured by Testronix is a value for money and affordable model which has a wide application in the paper and packaging industry

Test Standards ASTM D642, ASTM D4169, TAPPI T804, ISO 12048, and JIS Z0212.

Product Features

  • Features:

    • Peak hold facility
    • Motorized model with automatic platform adjustability
    • Safety switch with downward and upward limit
    • Mild steel power coated material
    • Lead screw mechanism for extended load bearing capacity
    • Twin column structure for dynamic testing
    • Computerized model optional feature available



Specification

  • Specifications

    • Microprocessor based display for accurate test results
    • Highly accurate test results under uniform compression Force
    • TARE and Peak Hold Facility Available
    • Strong base plate with rugged structure
    • POWER-220V, Single / Three phase, 50 Hz
    • LED digital display



    Technical specifications

    TX - BCT 450

    Compression plate size

    450mm x 450mm

    Capacity

    500 Kgf
    1000 Lbf
    5KN

    Least count

    0.05kg

    Computerised Port

    Yes (Optional)

    Maximum Box size which must be placed as per standard

    400mm x400mm

    Accuracy

    ± 0.5% full scale (with master load)
