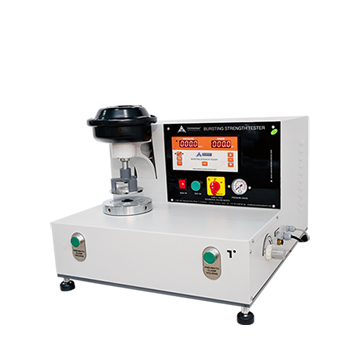

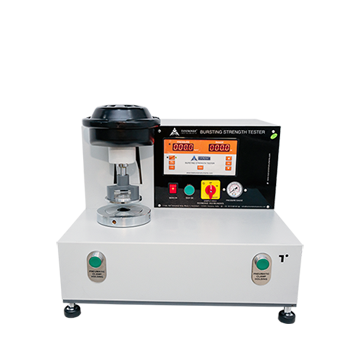

Bursting Strength Tester Pneumatic Computerised

Bursting Strength Tester Pneumatic Computerised



Bursting Strength Tester Pneumatic Computerised

4.7 of 5

Model No: TX-BST 500

The bursting strength tester computer is manufactured by Testronix is one of the most popular instruments in the paper and packaging industry. Corrugated box manufacturers can use busting strength tester to calculate the busting factor. The computerised model of the bursting strength tester helps in providing the user with computerised test reports. There is an option to calculate the g.. Read more


Need more information or have a question?

Contact Us
Product Description

The bursting strength tester computer is manufactured by Testronix is one of the most popular instruments in the paper and packaging industry. Corrugated box manufacturers can use busting strength tester to calculate the busting factor. The computerised model of the bursting strength tester helps in providing the user with computerised test reports.

There is an option to calculate the graphical test reports. The bursting strength tester computerised has an inbuilt software facility. The instrument consists of a dual synchronisation feature wherein bursting strength of both paper and corrugated box can be calculated on one head. The bursting strength tester instrument has a digital display and helps in calculation of accurate busting strength/ bursting factor. The bursting strength tester computerised manufactured by Testronix is a highly accurate, precise and robust instrument.

The bursting factor can be calculated by the following formula

Bursting factor = bursting strength / Grammage

Applications:

  • Paper boards
  • Corrugated boards and boxes
  • Industrial fabric and solid fibre boards
  • Filter cloth plastic films
  • Foils
  • Sheets

Test Standards: ASTM D 3786-01, ASTM D 3786 – 80A, ISO 1060 PART-1 1987.

Available models: Bursting strength tester Analogue Bursting strength tester Pneumatic model, Bursting strength tester computerized model with thermal printer connectivity

Product Features

    • Push Button Operation
    • Microprocessor based display for accurate test results
    • Peak Hold facility for keeping maximum value of test result in memory
    • Memory to hold up to 9 test reading
    • Highly accurate test results under multidirectional Force
    • Digital screen for accurate results
    • Strong Gripping clamps
    • Grooved structure of Test Specimen Holder to provide firm grip
    •  Firm grip of specimen if the operating wheel is tightened uniformly
    • Available in 0 – 60 kg/cm² on request
    • Available in computerized model with thermal print facility
    • Pressure transducer model for accurate results
    • Computerised test reports
    • Graphical report of Pressure Vs Time
    • Pass/ Fail report for ease in data interpretation

Specification

  • Key Specifications:

    Capacity

    0 – 40 kg/cm²

    Display

    Digital LED display

    Accuracy

    ± 1% within 10% to 90% of entire range as per IS:1828 with master gauge.

    Least Count/Resolution

    0.1 kg/cm2

    Power

    220V, Single phase, 50 Hz

    Test fluid

    Glycerin about 98% purified

    Rate of fluid displacement

    95 cc/minute

    Motor

    1/4 HP Single Phase , 1440 rpm

    Material

    Mild steel, powder coated

    Dimensions

    540x 600x 450 mm
