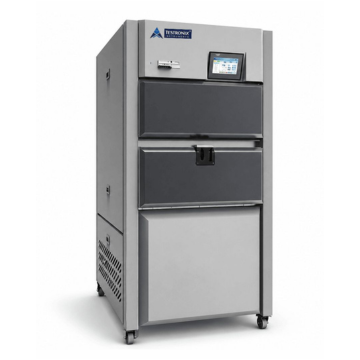

Xenon Weathering Chamber – Ultra Series is a next-generation accelerated weathering system developed to evaluate the resistance of materials against sunlight, temperature fluctuations, humidity, and moisture exposure under controlled laboratory conditions. The system reproduces natural environmental aging effects using a precision xenon arc illumination source combined with advanced climatic control technology.
Testronix Instruments is a leading Xenon Weathering Chamber manufacturer and supplier in India. To get the best price, request a quote or call us now!
Designed for precise evaluation of durability, this chamber provides the manufacturers with correct assessments of color fading, gloss retention, cracking, brittleness, tensile degradation and general performance of materials after their sustainable environmental exploitation. The device is widely applied for tests of plastics, coatings, vehicle parts, fabrics, dyes, packing materials, rubber goods and industrial mechanisms.
The Ultra Series incorporates a rotating specimen rack, which ensures homogeneous exposure of all test samples to light & environmental conditions. With intelligent microprocessor-based control, it can accurately control irradiance of the tests, humidity, chamber temperature, black panel temperature, and spray functions for highly repeatable and standards-compliant testing.
|
Parameter |
Specification |
|
Product Name |
Testronix Xenon Weathering Chamber – Ultra Series |
|
Illumination Source |
1.8 kW Air-Cooled Xenon Arc Lamp |
|
Lamp Type |
Imported Precision Xenon Lamp |
|
Expected Lamp Life |
Approx. 1500 Operating Hours |
|
Effective Exposure Area |
2200 cm² |
|
Sample Holding Capacity |
Up to 22 Specimens |
|
Supported Specimen Size |
150 × 70 mm |
|
Irradiance Monitoring Modes |
340 nm / 420 nm / 300–400 nm / 300–800 nm |
|
Irradiance Range @340 nm |
0.3 – 0.75 W/m² |
|
Irradiance Range @420 nm |
0.5 – 1.35 W/m² |
|
UV Spectrum Range (300–400 nm) |
30 – 90 W/m² |
|
Full Spectrum Range (300–800 nm) |
310 – 780 W/m² |
|
Black Panel / Black Standard Temperature |
Ambient to 100°C |
|
Chamber Air Temperature Range |
Ambient to 65°C |
|
Relative Humidity Range |
10%–75% RH during light cycle / 10%–95% RH during dark cycle |
|
Temperature Sensing Element |
Pt100 RTD Sensor |
|
Control Method |
Microprocessor-Based Closed Loop PID Control |
|
Spray System |
Programmable Spray Time & Interval |
|
Program Storage |
10 Test Programs with Multi-Step Configuration |
|
Data Export Facility |
USB Port with Excel-Compatible Output |
|
Overall Dimensions |
860 × 800 × 1770 mm |
|
Net Weight |
Approx. 200 kg |
|
Electrical Supply |
380V AC, 3 Phase, 50 Hz |
|
Installed Power Load |
5.5 kW |
|
Compressed Air Requirement |
0.5 MPa Clean Dry Air |
The Testronix Xenon Weathering Chamber – Ultra Series is designed to comply with internationally recognized accelerated weathering and light fastness testing standards, including:
The chamber is suitable for accelerated aging and weather resistance testing of:
