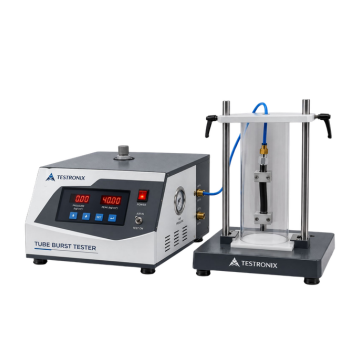

Tube Burst Tester is designed to determine the maximum internal pressure a tube can withstand before rupture. The equipment employs controlled air pressure through an air pipe. The pressure increases gradually until either the test sample ruptures or the necessary test endpoint is reached. The maximum pressure achieved in the test represents the burst strength of the sample, allowing manufacturers to determine pressure strength, product reliability and consistency of quality.
Testronix Instruments is a leading tube burst tester manufacturer and supplier in India. To get the best price, request a quote or call us now!
The tube burst testing machine is fitted with a control system based on microprocessor technology, an LED digital display and a peak hold feature which makes it possible to get accurate and convenient pressure results. The tester has adjustable air flow, a pressure regulator and secure gripping clamps that ensure safe testing.
A tube burst tester is suitable for quality control laboratories, manufacturing facilities and R&D departments requiring reliable pressure resistance evaluation of tubing products.
Test range: 1–38 kg/cm²
Microprocessor-based control system
Dual digital LED display
Peak pressure hold facility
Memory for 9 test readings
Fine resolution of 0.01 kg/cm²
Adjustable airflow and pressure regulator
Secure specimen gripping with safety enclosure
Feather-touch control panel
Robust grey-and-white industrial design
Corrosion-resistant surface finish
220 V AC, single-phase power supply
|
Parameter |
Technical Specification |
|
Model |
Testronix Tube Burst Tester |
|
Test Principle |
Pneumatic pressure testing |
|
Test Range |
1 to 38 kg/cm² |
|
Maximum Capacity |
40 kg/cm² |
|
Display |
Digital LED display |
|
Resolution |
0.01 kg/cm² |
|
Accuracy |
±1% within 10%–90% of the full range, as per IS 1828, using a master gauge |
|
Pressure Regulator |
Provided |
|
Airflow |
Adjustable |
|
Peak Hold Facility |
Yes |
|
Memory Capacity |
Up to 9 test readings |
|
Specimen Holding |
Secure gripping clamps |
|
Safety Arrangement |
Protective safety shield |
|
Operating Controls |
Feather-touch buttons |
|
Material of Construction |
Mild steel |
|
Corrosion-Resistant Components |
Bright chrome / zinc-plated finish |
|
Power Supply |
220 V AC, single-phase, 50 Hz |
