Torque Tester Motorised




Torque Tester Motorised

4.7 of 5

Model No: TX-TT 200

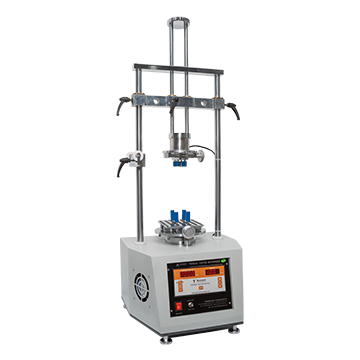

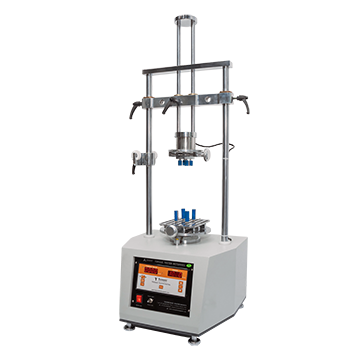

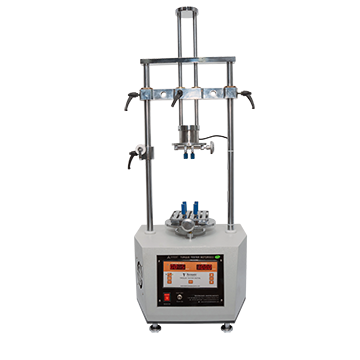

The Torque tester motorised is a precision instrument that accurately measures the opening and closing torque of bottle caps with closures. This device is designed to provide highly accurate test results and features a digital LED display that shows the torque value required to open the bottle cap.
This testing instrument is user-friendly and compliant with industry standards making


Need more information or have a question?

Contact Us

The Torque tester motorised is a precision instrument that accurately measures the opening and closing torque of bottle caps with closures. This device is designed to provide highly accurate test results and features a digital LED display that shows the torque value required to open the bottle cap.


This testing instrument is user-friendly and compliant with industry standards making it an ideal instrument for quality control and testing in various industries, including pharmaceuticals, food and beverage, and cosmetics.


With its automatic rotating mechanism, this motorized torque tester simplifies the testing process and provides reliable results for your quality control needs. This high-quality laboratory testing equipment will accurately test the torque value of caps and closures.

Torque tester motorized working principle

The Torque tester motorized designed by the experts at Testronix operates on the principle of torque measurement, and motorized rotation. This testing instrument has been equipped with motorized rotation mechanism that provides controlled rotation of sample when clamped on it. To ensure the accuracy and reliability of the samples being tested, the torque tester will undergo regular calibration procedures.



Different types of samples will be tested with the help of this quality testing equipment. This testing instrument will offer the ability to assess the performance and quality of bottle closures and caps when torque will be applied on it.

Applications of Motorized Torque tester:

  • Bottle caps
  • Packaging bottles
  • Bottle closures

Advantages of Torque tester motorized:

Torque tester motorized offers a series of advantages and ensures that bottle closures such as caps or lids, when tightened to appropriate torque. By testing the torque, manufacturers can easily get ensured that these materials will seal the products accurately. Torque testers allow manufacturers to implement consistent quality control measures by ensuring that every bottle closure is tightened to the same torque level. This helps maintain product quality and reduces the risk of defects or inconsistencies in the sealing process.



Torque testing will also provide the benefit by allowing manufacturers to take corrective action to prevent the issues before the product reaches to the customers. Torque testing helps manufacturers ensure compliance with industry regulations, reducing the risk of non-compliance and potential penalties.

    • Strong clamping pegs/holders for zero slip gripping support

    • Height adjustable clamping mechanism to hold the different sizes of bottles

    • Automatic restoration to initial position after test completion

    • In-house calibration facility

    • Precise measurement of torque

    • Digital Display for accuracy and repeatability

    • Max. Torque Range 80 lb-inch

    • Accuracy ± 0.5 lb-Inch (with master weight)

    • Least Count/Resolution 0.1 lb-inch

    • Power 220V, Single phase, 50 Hz

    • Display Digital

    • Torque Monitoring Peak Load indicator with Digital readout and peak hold feature

    • Minimum Diameter for specimen holding 20 mm

    • Maximum Diameter for specimen holding 130 mm

    • Max. size of test bottles to be tested 2.5 litres

    • Sample Size Min. height 25 mm & Max. height 400 mm

    • Auto stop at an angle of 90º Automatic restoration to initial position

    • Dimensions: 432x400x1265 mm

    • Auto Stop Function enabled

    • Motorized feature for high repeatability

    • Data output in digital display form

    • Machine to stop at an angle of 90º to avoid load on torque sensor

    • Adjustable fixture to test different size test bottles

Have a Question?

Connect with our customer support manager to get the product details & Quote.

Please fill this form to request a call-back from our
customer support manager with pricing and details.

We will also send you our product PDF for your reference.

Call our Experts for the Best Offer
+91 9313140140

Word of Testimony

What our customer says about us is important to us.

I am very happy with the Quality of Testronix Instruments . I would recommend them to all companies needing Quality Testing Instruments.

Bhanu joshi

Colgate Palmolive

Testronix team has been very helpful in selecting the right equipment and giving timely delivery .Wish them all the success.

Amit Tyagi

Emami
Trusted by market leaders —

FAQ's

Q. In which industries is this torque tester commonly used?

This torque tester is commonly used in various industries, including pharmaceuticals, food and beverage, and cosmetics, where accurate torque measurements of bottle caps and closures are essential for quality control.

Q. How does the automatic rotating mechanism in Torque tester motorized simplify the testing process?

The automatic rotating mechanism eliminates the need for manual rotation, streamlining the testing process and providing consistent and reliable results.

Q. Are there any maintenance requirements for the Testronix Torque Tester Motorized?

Regular calibration and maintenance are recommended to ensure that the instrument continues to provide accurate results. It's essential to follow the manufacturer's guidelines for maintenance.

Q. Can this instrument be customized for specific testing needs?

Depending on your specific requirements, Testronix may offer customization options to tailor the torque tester to your testing needs.

Q. Is technical support available for this instrument?

Yes, we at Testronix provide technical support and assistance to users. You can reach out for any technical queries or issues you may encounter at +91 9313140140 or email us at info@testronixinstruments.com. We will assist you regarding all your needs and queries.
