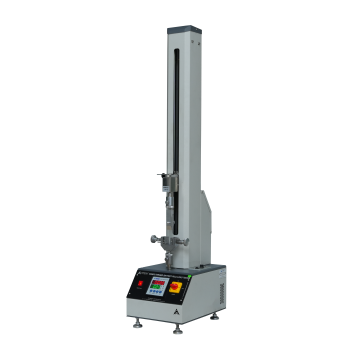

Battery Pull Strength Tester, also known as Battery Pull Load Tester, measures the force, strength or pull ability of batteries and other pressure sensitive materials.
Testronix Instruments is a leading Battery Pull Strength Tester manufacturer and supplier in India. To get the best price, request a quote or call us now!

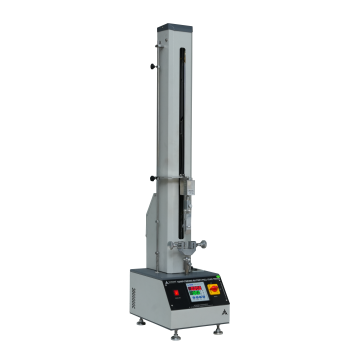

Battery pull load tester consists of two jaws that are used for holding the sample. The specimen is placed between two movable clamps. This applies a force on the sample and pulls it off from the surface. The force that is required to pull off the sample from the surface is recorded by the highly accurate load cell given with the equipment. The force applied is displayed on the digital display provided in the machine. This instrument hence, can provide the most accurate data analysis so that the manufacturers can provide the best quality to their customers
Testronix Battery Pull Strength Tester is one of the most popular testing instruments that is used in the Battery and EV industries to test the strength of the samples. The following tests can be conducted on a single instrument:
The Battery Pull Load Tester complies with various tester standards such as ASTM D429 – 14, ASTM D903, and others.
Additional accessories:
|
Parameter |
Specification |
|
Load Cell Capacity |
20 Kgf (customizable on request) |
|
Display |
LED (Digital) |
|
Travel Length |
400 mm (customizable on request) |
|
Accuracy |
± 0.5% within entire range |
|
Load Units |
Kgf (convertible) |
|
Least Count/Resolution |
0.002 Kgf |
|
Power |
220V, Single Phase, 50 Hz |
|
Speed |
300 mm/min ± 5% |
|
Dimensions |
600 x 500 x 1120 mm |
