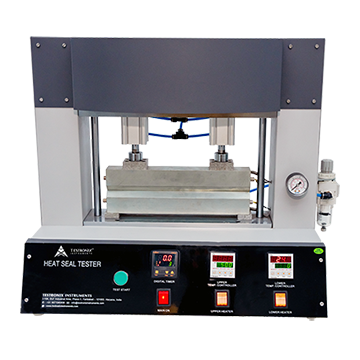

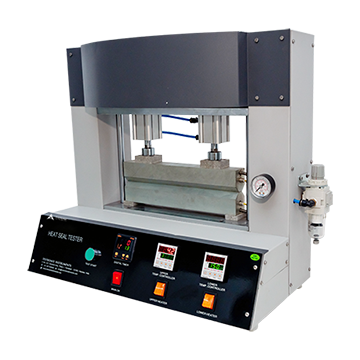

Heat Seal Tester 150mm

Heat Seal Tester 150mm



Heat Seal Tester 150mm

4.7 of 5

Model No: TX-HS 150

Laboratory heat sealer is a very important and widely used instrument for the paper and packaging & flexible films manufacturers. This instrument ensures proper sealing strength of labels. It also has an adjustable feature of setting the value of pressure. It has temperature controllers for both the jaws of the machine making the machine even more precise. The instrument al.. Read more


Need more information or have a question?

Contact Us
Product Description

Laboratory heat sealer is a very important and widely used instrument for the paper and packaging & flexible films manufacturers. This instrument ensures proper sealing strength of labels. It also has an adjustable feature of setting the value of pressure. It has temperature controllers for both the jaws of the machine making the machine even more precise. The instrument also comes with a built in timer controller. We also provides an option a 3 different jaws as per the need and requirement of the customer.
Our laboratory heat sealer ensures quality accuracy and precision this makes it user friendly.
The specimen is exposed to consistent pressure and heat in a fixed period of time. This procedure helps in measuring the heat seal performance of films, plastic films which are used in packaging different food products.
This high quality laboratory heat sealer also adheres to international test standard like Standards: ASTM F 2029.

Product Features

    • Seal Pattern : Straight line/Plain/Diamond Knurling
    • Microprocessor based display
    • Single Pushbutton operation after setting PID temperature and time
    • PID temperature controller for highest level of controls and repeatability
    • Dimensions: 400 x 367 x 483 mm
    • Mild steel powder coated body


Specification

    • Equipment Range: Ambient to 350ºC
    • Sealing Temperature Working range: Ambient to 230ºC
    • Accuracy: ± 1ºC
    • Dual Temperature controllers
    • Least Count/Resolution: 0.1ºC
    • Power: 220V, Single phase, 50 Hz
    • Sealing size:
    1. 150x 15 mm
    2. 300 x 15 mm
    • Temperature Controller: 4 digit PID
    • Dwell Heat Seal time: 0.1 – 99.9 sec
    • Heat Sensor with  Platinum Resistance Temperature Detector (RTD)
    • Sealing Pressure:2- 6 Bar

Review

I purchased this product from Testronix for my plastic factory. This instrument is easy to use and also consist of a digital display.

Akhilendra Kumar
