Circuit Breaker Test Apparatus Price and Manufacturer in India

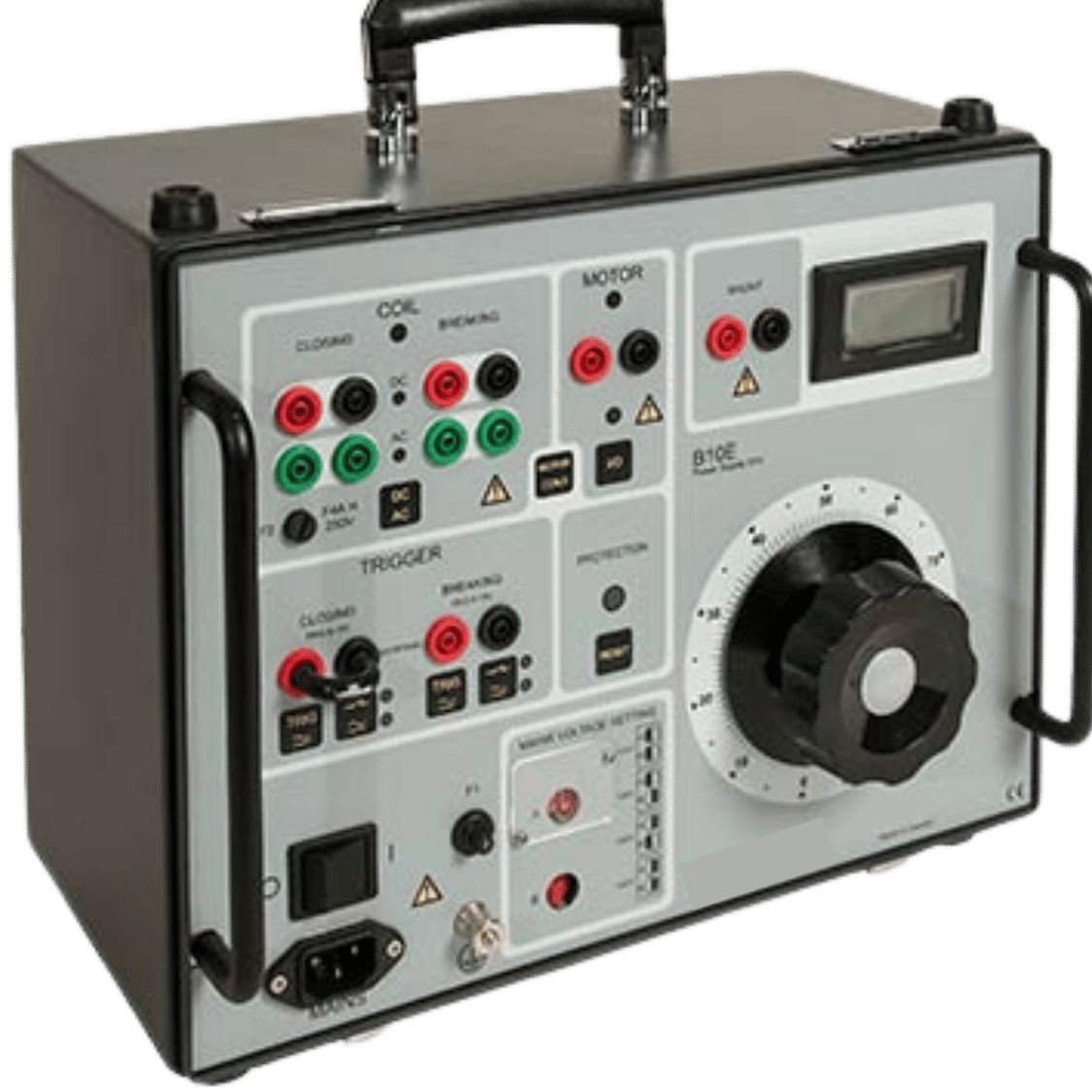

Circuit Breaker Test Apparatus

4.7 of 5 In Stock

Model No: HAP22

Brand:

Testronix Instruments

The Circuit Breaker Test Apparatus is used to evaluate the electrical and mechanical performance of miniature and molded-case circuit breakers. It simulates fault conditions an..

4500+ Happy Customers

Description

The Circuit Breaker Test Apparatus is used to evaluate the electrical and mechanical performance of miniature and molded-case circuit breakers. It simulates fault conditions and verifies tripping behavior, operating time, endurance, and contact integrity.

Features

Enables testing of thermal, magnetic, and instantaneous tripping
Validates IS/IEC-defined performance criteria for circuit breakers
Supports overload and short-circuit simulation
Records multiple parameters in a single test cycle
Optional PC interface for data logging and report generation

Specifications

Parameter	Specification
Voltage Range	0–300 V AC / DC
Current Injection Range	0.5 A to 100 A (customizable models)
Tripping Time Resolution	1 ms
Display	Digital – Voltage, Current, Time
Operating Cycles	Programmable count (0–999999)
Control System	Manual/PLC based (optional HMI)
