How to Perform Routine Maintenance of Gloss Meter?

Reviewed by Anurag Mishra (Sr. Technical Consultant)

Responsive image

The gloss reflection of the surface plays a vital role in determining the quality of materials. From automobiles to the paint industry, the glossiness of the surface matters the most. Therefore, it is very important for you to measure the glossiness of the surface to test the reliability and stability of the products. Thus, Testronix gloss meter, is a highly advanced piece of technology that is designed for providing accurate measuremnt of gloss value of the surface.

This is a very portable and handy testing device that is operated by a handy battery. This lab testing equipment will be measured from different angles i.e. 20 degrees, 60 degrees, and 85 degrees. This highly sensitive and compact device is available in various models to fulfill different testing purposes.

Here in this blog, we are going to provide you with detailed information about how you can perform the routine maintenance of the gloss meter. But before that, let’s focus on the brief information about the gloss meter.

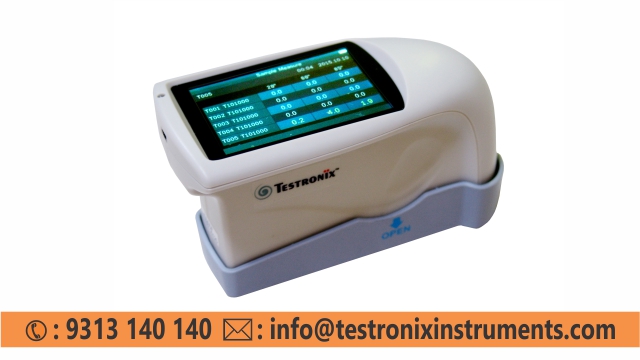

What is the Testronix gloss meter and how it is beneficial for the paint & coating industry?

Gloss meter triangle is one of the widely used and best-selling testing equipment that will help you to perform precise measurements of gloss levels. This amazing lab testing equipment comes with a large screen display and high resolution of (480X320) to get a full-view display. It has been compiled with industrial standards like ASTM D2457, ASTM D523, ISO2813, and GB/T 9754. You can easily measure the gloss levels of paints, opaque glasses, plastics, ceramics, pigments, etc.

There are many benefits you will get with the use of this lab testing equipment. We have created a list of its benefits below.

  • It is the fact the glossiness of the surface will add to the perceived value of the product. Thus, it is very important for you to test the gloss surface of the product. For this, our gloss meter plays a vital role in determining the glossiness of the surface.
  • The Testronix gloss meter provides a fast and effective evaluation of products.
  • By using a gloss meter or a gloss tester, manufacturers and quality control professionals can easily produce effective products and evaluate their surface characteristics.
  • The gloss meter is completely handy for manufacturers who produce products with a large lot size. By testing the glossiness of the surface the consistency of products will be maintained.

These are different advantages you will get with the use of this testing equipment. You can read more on the advantages of using a gloss meter here. Now, let us focus on its features and technical specifications.

Features of gloss meter

This lab testing equipment has a different set of features embedded in it. This testing instrument is very portable and handy that can easily measure the brightness and whiteness of different products. Here we have created a list of features you will get with the use of this lab testing instrument.

  • Measurements of the device are done on the basis of the standards JJG696.
  • Large Screen (3.5 inch), high resolution (480X320), Full-view display.
  • Display of multiple sets of data to make an easy and quick comparison
  • Auto power-off function
  • Protective cover to protect the measuring aperture
  • Statistical modes to display deviation, conclusion, diagram area of test records

Technical specifications of gloss meter

  • It measures a 5x36mm area of the sample from an 85-degree angle, 9x15mm area at a 60-degree angle, and 10x10mm area from a 20-degree angle.
  • The instrument offers a division value of 0.1 GU.
  • It provides a measuring range of 0~1000GU from 20 degrees, 0~1000GU from 60 degrees, 0~160GU from 85 degrees.
  • The instrument offers different measurement units i.e.
  • Range: – 100-1000GU, 10-100GU, 0-10GU.
  • Reproducibility : – ± 0.5%GU, ± 0.5GU, ± 0.2GU
  • Repeatability : – ± 0.2%GU, ± 0.2GU, ± 0.1GU

Tips to perform routine maintenance of gloss meter

Maintaining the gloss meter provides you with the utmost benefit. From long-term use of gloss meter to get accurate testing results, maintaining it is a necessity for every user. Thus, we have come up with easy-to-follow tips that will help you to maintain the gloss meter efficiently.

  • The gloss meter is a precise instrument. Please operate and store it in a standard laboratory environment (Temperature: 20?C, Standard atmospheric pressure, Humidity: 50-70% RH).
  • Standard Plate is a precise optical component. Avoid being damaged by a sharp object, avoid dirtying the board and avoid exposing it to the sun. You can regularly clean the standard plate by using a soft cloth.
  • In order to ensure the accuracy of the instrument, it is better to send it back to the factory or qualified Local national Institute of Metrology for calibration. You can do this at least once a year.
  • The gloss meter is powered by a built-in battery. If long time not using this instrument, please charge it biweekly in order to protect the battery and extend the battery life.

In this way, you can easily maintain the gloss meter and make it useful for a longer time. If you need any help regarding its working or want to know about gloss meter price, then give us a call at +91-9313140140 or send us an email at info@testronixinstruments.com. We will surely assist you well, regarding your needs and queries.
