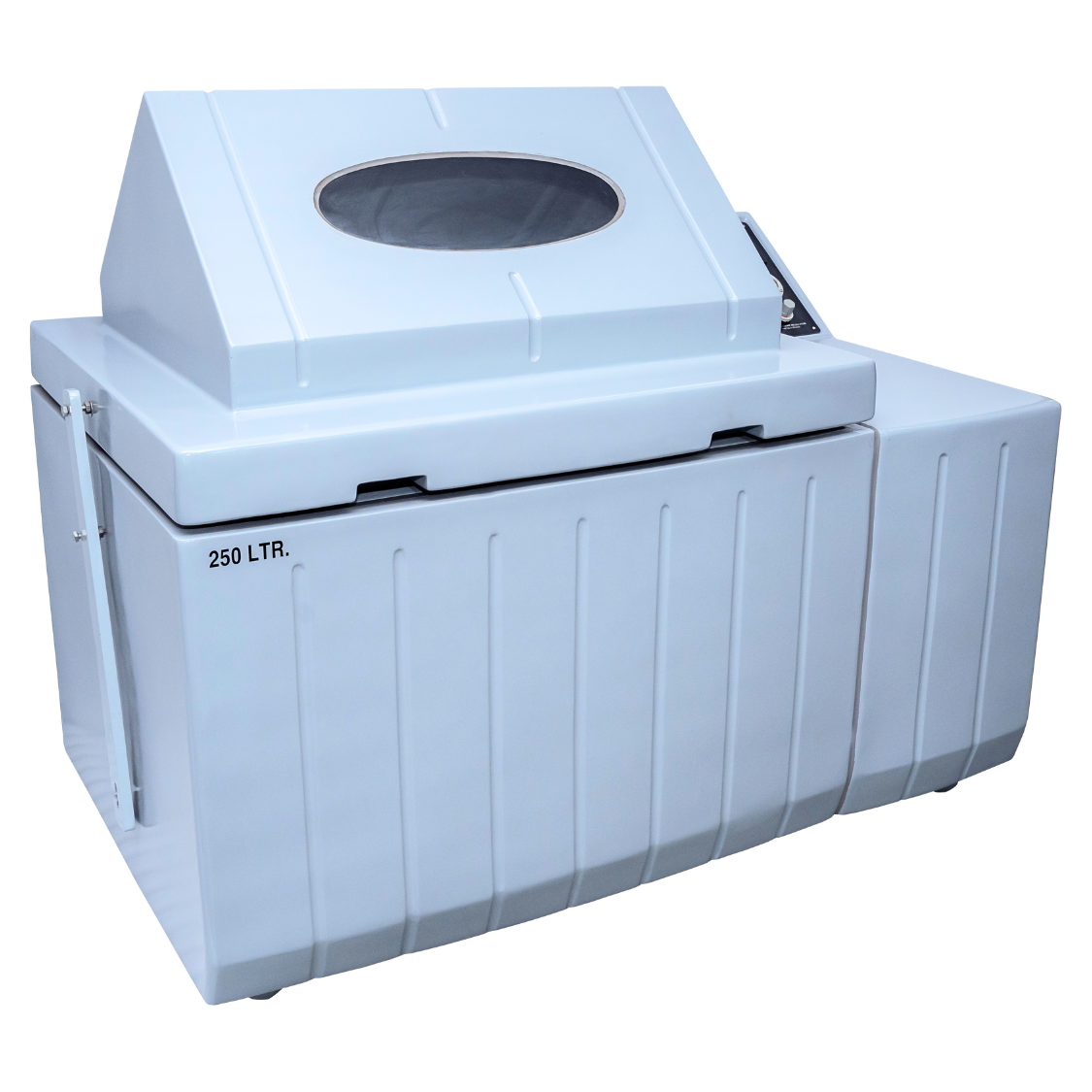

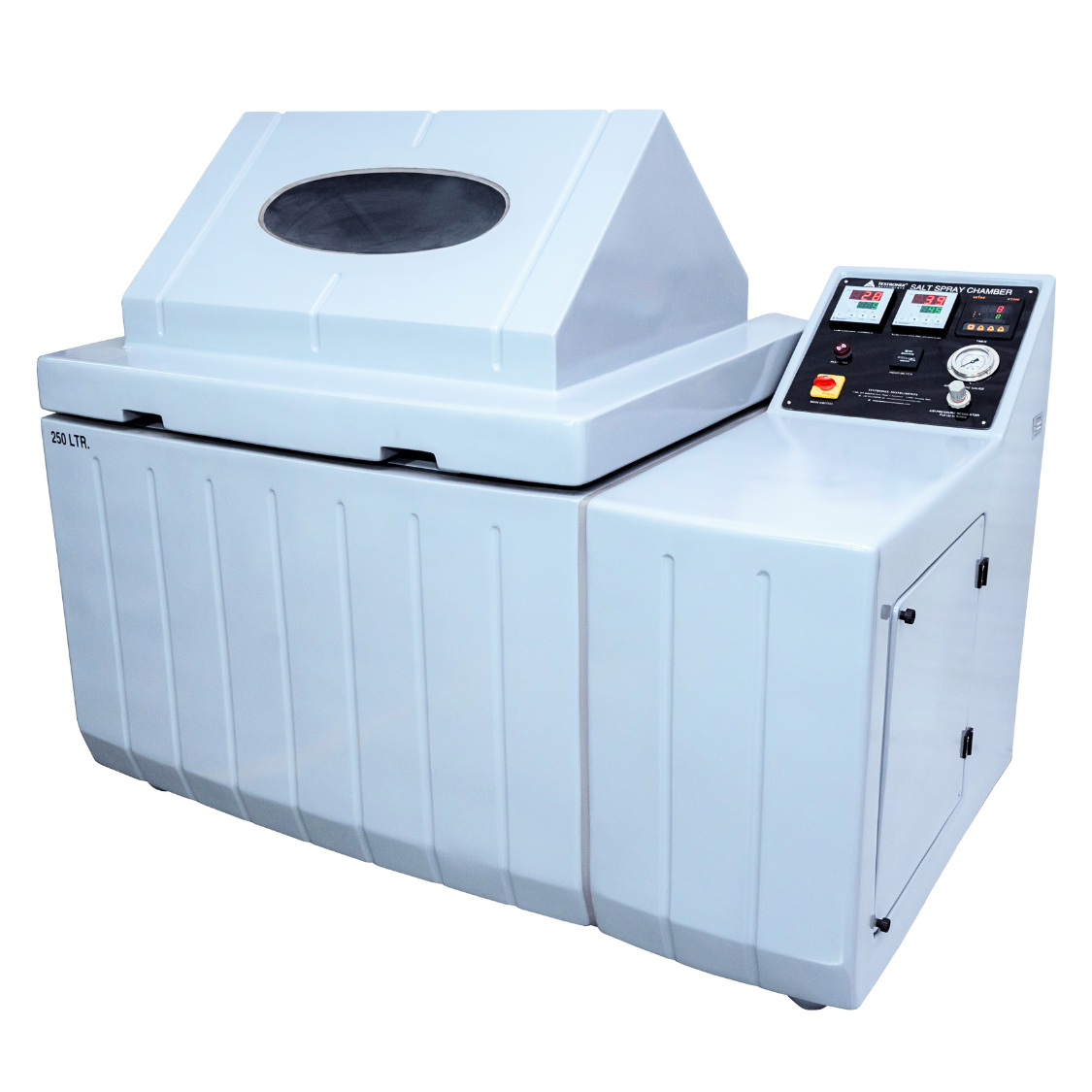

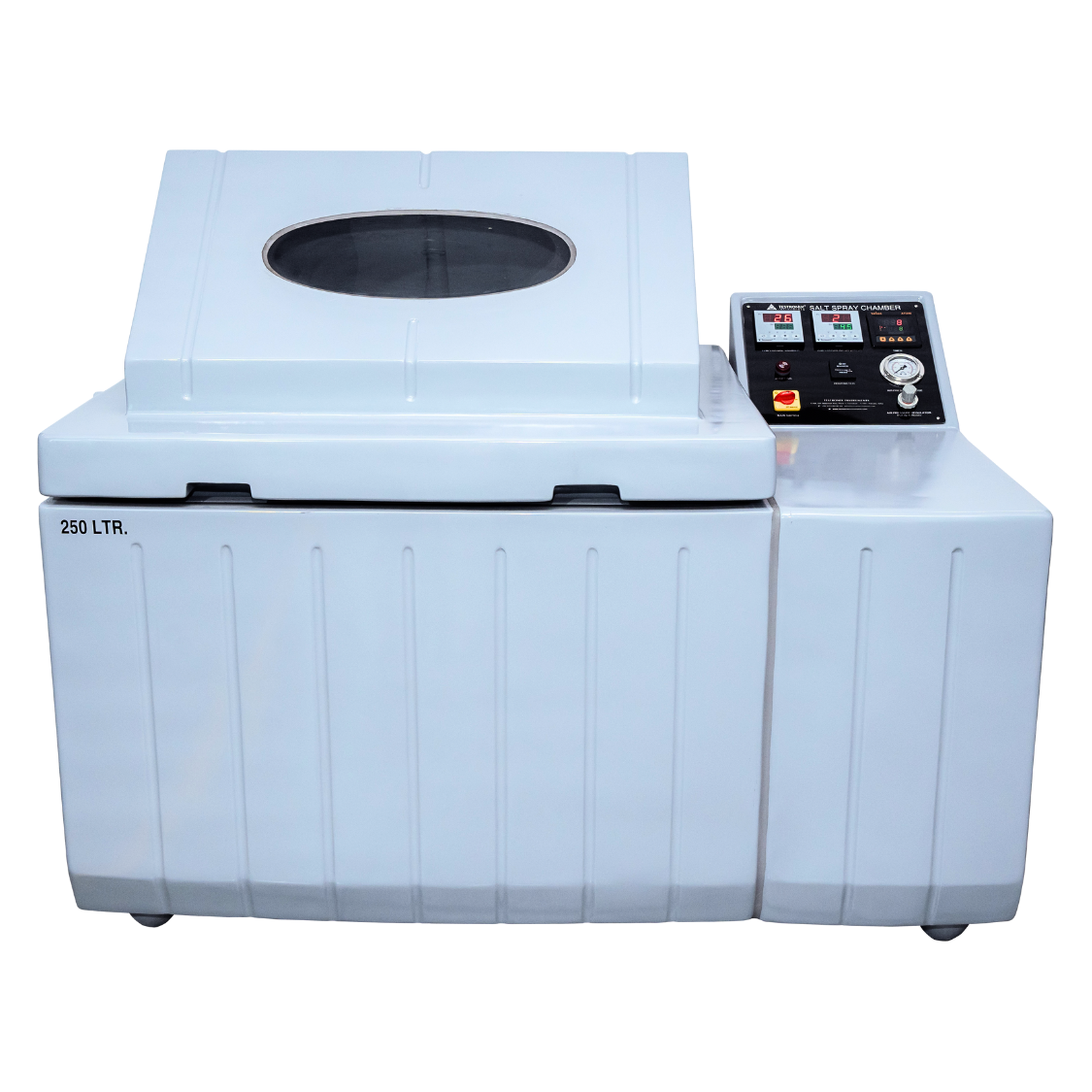

Salt Spray Chamber/Tester FRP

Salt Spray Chamber/Tester FRP

Salt Spray Chamber/Tester FRP

5.0 out of 5

Model No: TX-SST D

The salt spray chamber FRP (Fibre Reinforced Plastic) is one of the latest technology lab testing equipment that will easily test the corrosion-resistant properties of the materials. Its high-temperature-resistant body provides a long running life and is capable of conducting salt spray tests on the materials. This high-quality lab testing instrument has been designed as per in.. Read more


Need more information or have a question?

Product Description

The salt spray chamber FRP (Fibre Reinforced Plastic) is one of the latest technology lab testing equipment that will easily test the corrosion-resistant properties of the materials. Its high-temperature-resistant body provides a long running life and is capable of conducting salt spray tests on the materials. This high-quality lab testing instrument has been designed as per industry standards including ASTM B117 and JIS Z 2371. This will ensure accuracy in lab testing results. This corrosion resistance testing equipment can easily be used in various industries including automotive, aerospace, metals and other related industries. Thus, by testing your products accurately with the help of this testing equipment, manufacturers can easily get ensured about the durability of products. Besides this, the Testronix salt spray chamber consists of a triple wall which will ensure 100% product insulation. If you want to buy a salt spray tester, you can easily contact us. We will guide you well regarding your needs and queries

Working principle salt spray tester

The FRP digital salt spray testing chamber will be operating on the principle of accelerated corrosion testing. This will simulate harsh environmental conditions to evaluate corrosion resistance of materials as well as coatings.



This testing equipment will create a corrosive atmosphere within its chamber by spraying a salt solution onto test specimens, subjecting them to accelerated corrosion over a specified period. The working principle involves maintaining precise temperature and humidity conditions within the chamber to simulate real-world corrosion scenarios accurately.



When the specimen will be mounted and placed inside the chamber then testing configurations will be configured and create a corrosive atmosphere. Throughout the test, the user will set temperature and humidity inside the chamber and assess the performance of the material under stimulated environmental conditions. By following the operating procedure, manufacturers can easily assess the durability and reliability of the materials and coatings in different applications.

Applications of salt spray chamber:

  • Testing corrosion resistance for metals, alloys
  • Testing corrosion resistance for painted surfaces
  • Automotive components testing
  • Marine equipment testing
  • Electrical components testing

Advantages of salt spray tester:

The FRP digital salt spray tester offers numerous advantages for assessing the corrosion resistance of materials and coatings in various industries. With its precise temperature control capabilities, the tester ensures accurate and repeatable testing conditions, with a chamber temperature range of 35°C and a least count of 0.1°C, along with uniformity within ±2°C. The air saturator temperature range of up to 50°C, with a least count of 0.1°C and repeatability within ±1°C, facilitates thorough saturation of the testing environment.



The tester's versatility is further enhanced by its adjustable test air pressure, ranging from 0.7 to 1.2 kg/cm², and air regulator with a range of 0 to 7 kg/cm², accommodating a wide range of testing requirements. Additionally, features such as the in-built timer with a capacity of up to 99999 hours, air purging facility, fog collector, and measuring cylinder for external solution monitoring enhance the efficiency and reliability of corrosion testing.

Product Features

    • Inbuilt temperature settings

    • Construction: FRP Material

    • Latest Technology Atomiser Timer

    • Chamber Canopy/ Hood Angle as per ASTM B117

    • Sample viewing window

    • Salt Spray Test feature to enable parameters according to test sample

    • Temperature and timer functions inbuilt to set all test parameters accurately

    • Robust Construction with FRP Body to withstand extreme temperatures and extreme corrosive environment

    • Less maintenance and easy to operate model

    • FRP Corrosion resistant body as per ASTM B117

    • Simple placement of samples

    • User can control PID settings through Advanced Hysteresis setting

    • Angle of Canopy maintained in order to restrict flow of droplets directly on the test sample as per ASTM B117 standards

    • Leak proof Hood and 100% insulation to provide accurate results

    • Pneumatic Hood (Optional accessory)

    • Inbuilt Air saturator and Fog Collection unit (Optional accessory)

Specification

  • Test Chamber Temperature Range

     35°C

    Chamber Temperature Least Count

     0.1°C

    Chamber Temperature Repeatability

     Uniformity ±2°C

    Air Saturator Temperature Range

     Upto 50°C

    Air Saturator Temperature Least Count

    0.1°C

    Air Saturator Temperature Repeatability

    ±1°C

    pH value of Salt Solution

    6.5 to 7.2 pH

    In built PID temperature controller

    Yes

    Timer

     Upto 99999 Hours

    Test Air Pressure

    0.7 Kg/ cm²&   1.2 Kg/ cm²

    Air Regulator

     0 To 7 Kg/ cm²

    Air Purging Facility

    Yes

    Fog Collector

    Yes

    Fog Collection

    1-2ml per 80 cm² per hour as per standards

    Measuring Cylinder (External)

    Available (Capacity:50ml)

    Power

    220V, Single phase, 50 Hz, 15 A

    Reservoir Tank for Solution

    Yes Included



    Optional accessories:

    1. Air saturator- to saturate the air inside the chamber for compliance of ASTM B117

    2. Fog collection unit

    3. pH meter- to check the pH of salt solution

    4. pneumatic opening of canopy for ease in operation



    Inside Dimensions:

    L    x  B    x    H

    250 LTR

    800 x 500 x 500 mm

    450 LTR

    1000 x 700 x 750 mm

Review

How It Works?

View this video to learn how this product works?

Have a Question?

Connect with our customer support manager to get the product details & Quote.

Please fill this form to request a call-back from our
customer support manager with pricing and details.

We will also send you our product PDF for your reference.

Word of Testimony

What our customer says about us is important to us.

I have purchased all packaging testing instruments from testronix for our lab. Testronix has supported us throughout. They have trained and very supportive staff. Testronix is highly reliable and is a highly recommended brand for lab testing machines

Vikram Singh

The entire team at Testronix is highly professional. They provide timely delivery with world class features in all their instruments. They also provide customised instruments as per the needs of the user which no other dealer/trader can provide. We are very much satisfied with their products

Maneesh Bhatnagar

Trusted by market leaders —

FAQ's

dot-line

Q. What is the use of a salt spray test chamber?

The Salt spray chamber is also known as a Corrosion Test Chamber. the Salt Spray Chamber FRP Digital is a high-level lab testing instrument that helps to measure the corrosion resistance of coatings. Oftentimes, exposing a sample to a corrosive atmosphere makes it susceptible to rusting. Especially in certain industries that use power coated components and parts. So, with the help of a Salt Spray Salt Chamber, one can calculate the corrosive strength of the sample and the estimated life that a customer can receive.

Q. How does a salt spray chamber work?

This type of testing helps paint and plating & automotive component manufacturers to clarify and double-check the quality of the specimens developed by their manufacturers. The corrosion test cabinet or the salt spray test chamber is well insulated. Once the sample is placed inside, the insulated salt spray simulation chamber body ensures that the specimen is safe from air and dust particles which could interfere with the test results.

Q. What is the price of a salt spray chamber?

The price of a salt spray chamber can differ depending on the model and instrument. While the price range starts from as low as AED 6,597, it can go up to AED 35,186 for high-end instruments. You may find the same product in different price ranges in the market. Most of the cheap products come from unbranded manufacturers/traders with no guarantee while the branded products of reputed manufacturers maintain high quality.

Q. From where to buy a genuine salt spray chamber?

You need to find a renowned manufacturer to buy a genuine Salt Spray chamber. There are several traders in the market, but not everyone is a genuine manufacturer and can provide you with authentic and high-quality products. For that reason, you need to check if they have their own manufacturing unit and dedicated service set up. Customers must always check if the manufacturer has a dedicated and reliable in-house service set up.

Q. How to get a free quotation for a salt spray test chamber?

To get a free price quotation for salt spray chamber you can contact the company with your requirement, details from their mail id and phone number. To get a quotation from Testronix Instruments fill the form with requirements and you will get an instant call-back from the sales for the techno-commercial offer. You can connect with us anytime at +91 9313 140 140 or info@testronixinstruments.com
