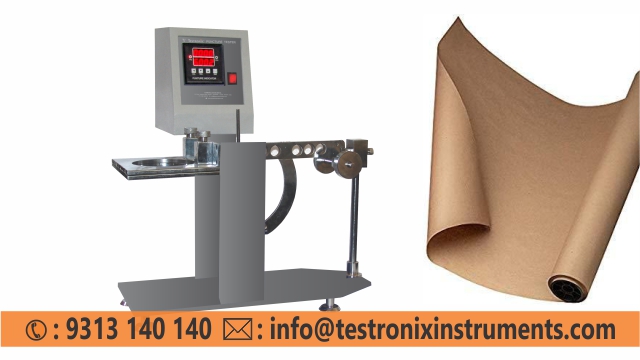

    Puncture Resistance Tester – Highly Service Quality Product

    22 Feb 2021
    Posted by Admin

    Puncture Resistance Tester is used to measure the resistance of paper, paperboard and other similar materials when subjected to puncture and determination of absorbed energy.
    Resistance to puncture is an important parameter that determines quality of a wide range of materials - from thin papers to thick boards and similar materials.
    The specimen is clamped on a fixture and is pierced with the help of a pendulum released from 90 Degree position.

    The pendulum head is made pointed in a pyramid shape.
    A pointer is fitted in the pendulum which gives the reading in a calibrated scale.
    The corrugated box may get an impact from the sharp corner of any article during handling and transportation.
    Resistance to puncture is an important parameter that determines quality of a higher range of materials - from thin papers to thick boards & similar materials puncture resistance value of Paper & Packaging materials with high quality service available.

    The higher the corrugated box quality the better its puncture resistance value.
    Puncture resistance tester is a special packaging detection instrument for the determination of anti-puncture performance (namely puncture resistance) of Paper & Packaging materials.

    Different weights are provided in the pendulum for different scales.
    The same effect is simulated by the puncture resistance testing machine.
    Puncture Resistance Tester is a consistent tool useful to determine the resistance to puncture of paper and paperboard.


    This type of tester is unique, more powerful simulated resistance testing instruments with best quality service & effective performance machine.

    SPECIFICATION:

    • Energy Range of Weights: 6, 12, 24, 48 J
    • Accuracy: ± 2% within entire range.
    • Release angle of Pendulum: 90º
    • Display: LED (Digital)
    • Power: 220V, 50Hz, Single Phase
    • Standards: IS 4006 1987 (Part-II), TAPPI –T803, ISO 3036 and ASTM D781.


    Applications:
    Puncture Resistance Testing is used for all kinds of paper, paperboard, solid fiber boards & corrugated boards/ boxes.

    FEATURES :

    • Display for impact/absorbed energy and angle of test specimen
    • Single handed hassle free operation
    • Strong gripping fixtures for holding test samples.
    • Oscillatory Pendulum release mechanism
    • Bright LED display
    • Puncture Head collar with soft adjustment to puncture head base
    • Inbuilt calibration facility
    • Feather touch controls
    • Microprocessor based display for accurate test results
    • Highly accurate test results under impact forces
    • High-Quality rugged structure with corrosion resistant main body


    HIGHLIGHTS – PRODUCT


    • Sample Holder: 1
    • Pendulum: Release Mechanism: Manual
    • Material: Mild Steel
    • Finish: Powder coated Havel Gray & Blue combination finish and bright chrome / zinc plating for corrosion resistant finish.



    MODEL

    PPRT-0164PRODUC



    Puncture Resistance Tester is a consistent tool useful to determine the resistance to puncture of paper and paperboard. Puncture Resistance Tester is used to measure the resistance of paper, paperboard and other similar materials
