Dust and sand are some of the most prevalent environmental factors that may impact the performance and lifespan of electrical, electronic, automotive, and military equipment. To assess the degree to which products can endure these conditions, there needs to be a controlled testing environment.

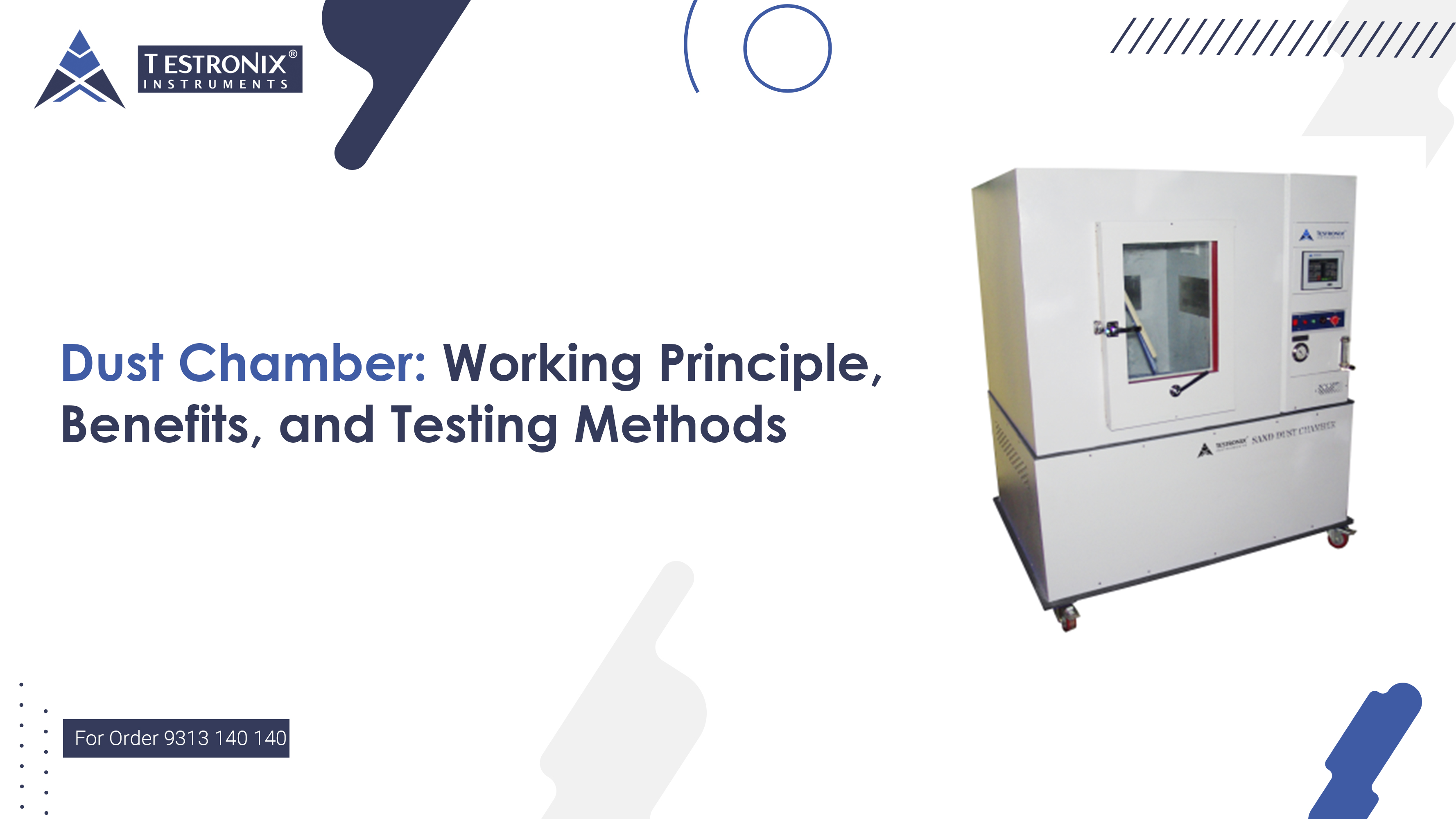

A dust chamber, or more accurately, a dust test chamber or sand and dust chamber, is used to offer such a controlled environment, which imitates the influence of sand and sandstorms on products. This guarantees that the items tested comply with performance and durability standards.
A dust and sand chamber is a specialized piece of environmental test equipment to test the resistance of products to penetration by dust and fine particles. It mimics harsh, dusty environments encountered in everyday environments like deserts, construction sites, or industrial areas.
By spreading standardized dust (such as Arizona dust or talcum powder) inside a controlled chamber, manufacturers can test enclosures, connectors, and components' durability and sealing performance. Widely utilized in the automotive, electronics, and defense sectors, dust chambers ensure that products achieve international protection ratings such as IP5X and IP6X before market launch.
A dust chamber works by creating a controlled environment where dust particles are circulated using blowers or fans to test the resistance of products against dust penetration. The test specimen is placed inside the sealed chamber, and a specific type and concentration of dust is introduced for a set duration.
In other words, it functions through a process where a controlled amount of dust is introduced into a chamber. The dust chamber then measured how the test specimen performs in that dusty environment.
Air Circulation: Compressed air nozzles or high-speed fans blow the dust particles, keeping them suspended in the air.
Vacuum System: In some tests, a vacuum is introduced inside the device under test (DUT) to mimic pressure differentials and measure dust entry through seals and joints.
Test Duration: Specimen is kept under dust for a predetermined duration, usually hours, as required by the applicable standard.
Monitoring and Control: Air velocity, dust concentration, temperature, and humidity are maintained and monitored for uniformity.
A dust chamber works on the principle of controlled dust circulation and pressurization to replicate real-world dusty conditions. The chamber establishes a closed space in which fine dust particles are agitated and suspended in the air using blowers, fans, or compressed air jets.
In certain applications, a vacuum is used with the test specimen to simulate pressure differences, which can lead to dust entry. The interaction of dust particles and air movement checks how effectively the product's seal or enclosure protects against contamination. The principle is used to check the Ingress Protection (IP) rating of the device, particularly for IP5X and IP6X.
Dust chamber testing is performed to evaluate a product's dust penetration resistance under controlled environments. The test determines whether a product can function and hold structural integrity in dusty conditions. It is particularly important for products intended for use in harsh outdoor, industrial, or desert environments.
Pre-calibration and cleaning of the dust chamber are required before the initiation of testing. The appropriate kind of dust, like Arizona dust, talcum powder, or Portland cement, is used under the test standard. The specimen is cleaned and checked to ensure it is free from any initial dust or damage.
The test article (referred to as the Device Under Test - DUT) is safely placed within the chamber. It ought to be put in a manner that enables exposure to dust in all directions. If the test standard demands it, some of the ports or openings can be sealed or remain open to enable exposure to realistic usage conditions.
The test duration, type of dust, airflow rate, and vacuum pressure (if necessary) are controlled by the operator through the control system. The temperature and humidity can also be controlled as per the specific requirements of the test.
After all the prerequisites are met, the dust circulation system is triggered. Fans, blowers, or air nozzles agitate the dust into suspension to mimic a dust storm or dirty environment.
During the test, dust concentration and environmental conditions are monitored constantly. Some sophisticated chambers provide real-time data logging and visual inspection through internal cameras. Malfunctions or deviations must be rectified immediately to preserve test integrity.
Once the specified time, the system is turned off, and the chamber sits idle for a couple of minutes to settle the dust. This is to ensure that dust in the air does not escape when opening the chamber, contaminating the test and being harmful to one's health.
After being safe to open, the test specimen is removed and examined carefully. Engineers and technicians examine for apparent dust ingress, faulty parts, or contamination of sensitive areas. Depending on the purpose of testing, further functional tests may be performed to confirm that the product still functions as expected.
Dust chambers provide a variety of advantages that are essential to product development, quality testing, and compliance testing in various sectors. Dust chambers simulate extreme, dusty conditions in a controlled environment to test how durable and reliable a product is under such conditions. The following are the advantages discussed in detail:
Dust chambers assist manufacturers in ensuring that their products are capable of withstanding harsh environmental conditions. Fine dust particles can influence moving parts, electrical contacts, seals, and sensitive components. Dust testing confirms that enclosures, gaskets, and seals have been designed effectively to ensure particle entry is prevented, thus enhancing the overall durability and reliability of the product during the entire life cycle.
Most industries mandate products to pass certain Ingress Protection (IP) ratings, e.g., IP5X (dust protected) or IP6X (dust tight) according to IEC 60529. Dust chambers are the critical tools to attain these certifications. Meeting these standards is not only a technical requirement, it's usually a regulatory and market-access requirement, particularly in countries with rigorous quality norms.
Dust ingress-caused field failures can result in malfunction, safety hazards, and expensive recalls. Dust testing serves to detect design defects prior to product release to the market. This forward-thinking quality control step assists companies in minimizing warranty claims, customer complaints, and brand reputation damage caused by equipment failures in actual usage conditions.
By incorporating a dust chamber during the research and development (R&D) process, manufacturers can test several prototypes and refine designs. For instance, material selection, seal thickness, or enclosure design may be optimized to withstand dust better. This results in innovative, durable, and superior-performing products adapted to customer requirements in hostile environments.
Early dust chamber testing prevents the costly post-market changes or redesigns. Weaknesses discovered before mass production are much cheaper than dealing with failures once the product is launched. It also minimizes unnecessary field testing, conserving time and resources.
Dust chambers play an important role in assessing how different products fare when subjected to dusty environments, which makes them a vital part of environmental testing. Their capacity to replicate actual environments with fine particles enables producers to guarantee product integrity, safety, and conformity to global standards. Below is an elaborate examination of the major industries and sectors where dust chambers are commonly used:
Dust chambers are widely employed in the automotive industry to validate the dust tolerance of parts that are commonly faced with harsh surroundings. These include:
Headlights and taillamps
ECUs (Electronic Control Units)
Dashboard gauges
Air sensors and filters
Electrical connectors and harnesses
Automotive parts need to be reliable in dusty roads, deserts, or off-road use. Dust chamber testing allows the identification of sealing defects and enhances enclosure design before the vehicle's release into the market.
New electronic devices like smartphones, tablets, cameras, and wearables are designed to operate in any environment. Dust invasion can degrade displays, obstruct sensors, and damage internal circuits.
Dust chamber tests guarantee devices achieve IP5X/IP6X ratings, qualifying them as "dust-resistant" or "dust-tight." It not only ensures durability but also enhances marketability for rugged or outdoor-use electronics.
Defense-grade devices tend to function in harsh environments, such as deserts, combat areas, and desert areas. Exposure to dust and sand can impact delicate military equipment like:
Communication equipment
Navigation equipment
Portable computers and sensors
Weapon sighting equipment
Implementation of dust chambers at the design and testing stage ensures these devices remain functional even under long-term exposure to dirty, hostile environments.
In aerospace, parts such as avionics systems, exterior sensors, and landing gear control need to be reliable even under exposure to airborne particles. Dust chamber testing is useful to evaluate:
Seal the integrity of electronic enclosures.
Sensor functionality in low-visibility or dust environments
Material tolerance over long flight cycles
It is particularly significant for aircraft that fly in areas with a history of dust storms or volcanic ash.
Construction, mining, farming, and heavy industry equipment are exposed to airborne dust at all times. Dust chamber testing is applied for:
Control panels
Switches and joysticks
Cabling and connector seals
Motor enclosures
Simulating the operating conditions in a dust chamber allows manufacturers to guarantee operational reliability, minimize downtime, and prolong the operating life of such machines.
Outdoor telecommunication equipment, including signal boosters, routers, antenna enclosures, and base station equipment, is subject to natural conditions, including dust. Dust chamber testing verifies:
Deterioration of signals by dust-covered ports or lenses
Seal failure is causing internal damage
Malfunction of circuits caused by particulate buildup
All these tests guarantee continuous communication and data transmission.
Accuracy devices employed in laboratory or field outdoor testing must be extremely accurate, even in dusty conditions. Dust chambers are employed to evaluate:
Protection of display and control panels
Long-term exposure hazards to sensors
Consistent operation under environmental stress increases faith in data accuracy.
Dust chambers are an important tool in environmental testing, allowing manufacturers to test their products for durability against dusty and sandy environments. Through their capacity to mimic an actual harsh environment, dust chambers enable quality assurance, enhance product performance, and guarantee adherence to International Standards. For electronics, automobiles, or defense systems, dust testing is crucial for developing reliable, rugged, and customer-faithful products.
