Bursting Strength Analogue

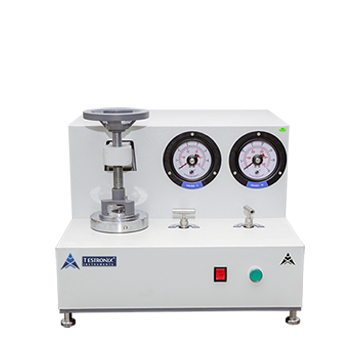

Bursting Strength Analogue1

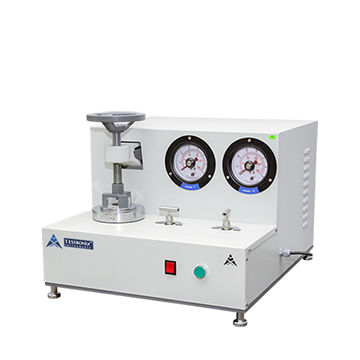

Bursting Strength Analogue2

Bursting Strength Analogue

Model No: TX-BST 100
Brand: Testronix Instruments

Description

Bursting Strength Tester analogue model is a dial type model. It is a very accurate instrument for the measurement of Strength and performance of materials. It helps the user in calculating the bursting factor of corrugated boxes
Bursting Strength calculates the force required to rupture the material under testing. Bursting strength of test specimen is expressed in terms of Kg/cm². It is measured by giving hydraulic pressure through a rubber diaphragm on the test specimen.

Applications:
•    Paper boards
•    Corrugated boards and boxes
•    Industrial fabric and solid fiber boards
•    Filter cloth plastic films
•    Foils
•    Sheets

Test Standards: ASTM D 3786-01, ASTM D 3786 – 80A, ISO 1060 PART-1 1987.

Available models: Bursting strength tester digital, Bursting strength tester Digital Pneumatic


Features

  • Push Button Operation
  • Highly accurate test results
  • Strong Gripping clamps
  • Firm grip of specimen of the operating wheel


Specification

Capacity

0 – 7 kg/cm² and 0 – 35 kg/cm²

display

analogue

accuracy

± 1% within 10% to 90% of entire range as per IS: 1828 with master gauge.

Least Count/Resolution

0.2 Kg/cm2 for Gauge I 1.0 kg/cm2 for Gauge II

Power

220V, Single phase, 50 Hz

Test fluid

Glycerin about 98% purified

Rate of fluid displacement

95 cc/minute

Motor

1/4 HP Single Phase , 1440 rpm

Material

Mild steel, powder coated

Dimensions

540x 600x 450 mm

How Bursting Strength Analogue Works?

View this video to learn how this product works

Our USP’s

Professional service and support
icon
Free
Online Demo
icon2
Shipping
Globally
icon3
Global
on Site Support
icon
Trained
Technical Team
icon6
Automated
Manufacturing Units
icon5
German
Inspired Tech
Get Best Price For Bursting Strength Analogue

Customer Reviews

What our customer says about us is important to us.

Hardik Sah

I happened to use the bursting strength tester analogue model. It is accurate instrument, performance-wise and tests well the many types of materials including paper, corrugated boards and boxes. In fact, I used it to test industrial fabric and leather and got quality results. I applied an increasing rate through a rubber diaphragm that ruptured the fabric and calculated the value of bursting strength easily. No issues in operations at all!
