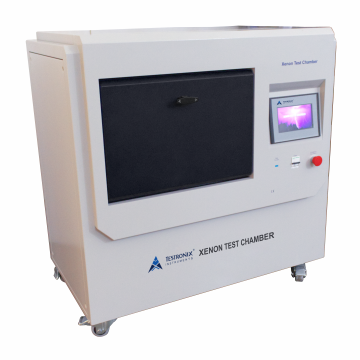

Xenon Test Chamber- XTC 100

Programmable Test Profiles

Store up to 16 custom test procedures; each procedure allows 10 segmented conditions.

Irradiance Energy Control

"Closed-loop" feedback system automatically compensates for lamp aging, ensuring consistent light output.

Cumulative Energy Mode

Allows tests to terminate automatically after the set total energy exposure is achieved.

Spray Function

Programmable spray duration and interval to simulate dew and rain effects.

Temperature Control

High-precision Pt100 sensor controls black panel temperature (BPT) automatically; adjustable from RT+20°C to 90°C.

Humidity Monitoring

Displays real-time relative humidity within the test chamber.

Calibration-Friendly

Manual calibration of irradiance and BPT is quick and user-accessible.

Alarm & Safety Functions

Over-temp (BPT), irradiance error, door-open shutdown, and low air pressure protections included.

Touchscreen Interface

Intuitive touch panel allows easy operation, real-time monitoring, and test setup.

Data Export

USB port for exporting logged data directly; supports long-duration unattended testing.

Specimen Handling

Unique slide-out specimen tray makes loading/unloading fast and safe.

Xenon Lamp

1.8 kW (Air-cooled, imported from USA)

Filter Options

Daylight filter (Optional: Extended UV or Window Glass filter)

Lamp Life

Approx. 1,500 hours

Exposure Area

1,000 cm² (Fits 9 samples of 150 mm × 70 mm)

Irradiance Range

- 30–100 W/m² (300–400 nm)
- 0.3–0.8 W/m² (@340 nm)
- 0.5–1.5 W/m² (@420 nm)

Irradiance Control Points

340 nm, 420 nm, 300–400 nm (simultaneous display)

Black Panel Temp. Range

RT + 20°C to 90°C (depending on ambient and irradiance)

Interior Chamber Material

SUS 304 Stainless Steel

Exterior Material

Powder-coated body

Chamber Size (L×W×H)

1000 mm × 650 mm × 1020 mm

Net Weight

135 kg (Gross: 176 kg)

Power Supply

220V, 50/60 Hz (Single phase)

Max. Current / Power

12 A / 2.5 kW
