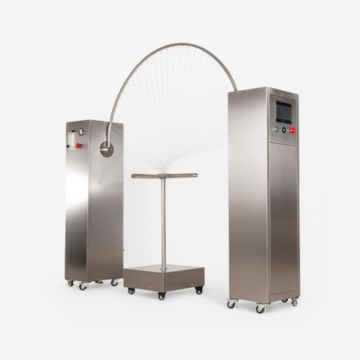

The Testronix IPX6 Rain Test Chamber is designed to evaluate the water ingress protection of enclosures, components, and finished products against powerful water jets. The chamber reproduces the IEC IPX6 test conditions, where test specimens are exposed to a 12.5 mm jet nozzle delivering 100 L/min of water at a controlled pressure, simulating harsh outdoor environments such as heavy rainfall an...
Engineered with robust stainless-steel construction, precision water flow control, and programmable test parameters, the chamber ensures reliable, repeatable, and compliant testing for electrical, automotive, electronic, and consumer products.
Testronix Instruments is a leading manufacturer and supplier of rain test chamber in India. For the best price, contact us for a quote or call now!
|
Parameter |
Specification |
|
IP Rating Supported |
IPX6 (powerful water jet protection) |
|
Test Method |
12.5 mm diameter jet nozzle |
|
Water Flow Rate |
100 ± 5 L/min |
|
Water Pressure |
~100 kPa at nozzle (as per IEC standard) |
|
Spray Distance |
2.5 – 3.0 m from nozzle to sample |
|
Test Duration |
1 min/m² (minimum 3 min total) |
|
Turntable Diameter |
400–800 mm (model dependent) |
|
Turntable Speed |
1–5 rpm, programmable |
|
Chamber Material |
Inner & Outer chamber SS |
|
Water System |
Closed-loop recirculation with filtration; inline flow meter and pressure gauge |
|
Control System |
PLC + 7” HMI touch display |
|
Safety Features |
Door interlock, pump overload, low water cutoff, emergency stop |
|
Power Supply |
230 V AC, 50 Hz (single-phase) |
|
Water Requirement |
Filtered/softened water; inlet pressure 2–3 bar |
