Penetrability Tester

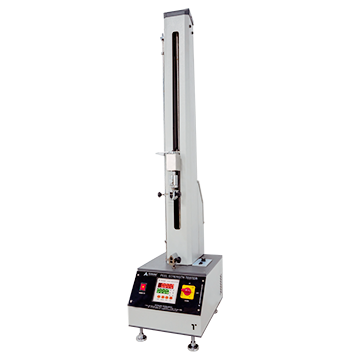

Penetrability Tester1

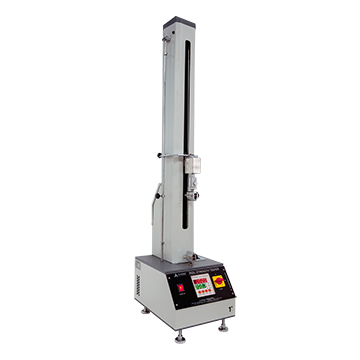

Penetrability Tester2

Penetrability Tester

Model No: Tx - PT100
Brand: Testronix Instruments

Penetrability Tester measures the force required for a hypodermic needle to penetrate pharmaceutical rubber stoppers, vial closures, and ampoule septa. This test is important for smooth needle entry during drug withdrawal or injection. It helps prevent coring, leakage, and excessive puncture force.

Testronix Instruments is a leading manufacturer and supplier of penetrability t...

Description

Built with a high-accuracy load cell and microprocessor-controlled drive mechanism, the penetrability tester applies a uniform force while pushing a standard needle into the closure. The required penetration force is captured with extreme precision and displayed digitally.

Penetrability tester helps pharmaceutical manufacturers check closure quality, guarantee machine performance on filling lines and meet pharmacopoeia requirements.

The computerized version enhances testing efficiency through real-time graphing, force–time plots, and automated reporting, making it ideal for quality control labs, R&D centers, and regulatory compliance testing.

Applications

  • Penetrability testing of rubber stoppers and vial closures

  • Testing of ampoule septa / breakable tips

  • Validation for pre-filled syringe rubber components

  • QC for needle–closure compatibility

  • R&D evaluation for closure material behaviour

Standards Compliance

  • ISO 8871-5

  • ISO 8536

  • Pharmacopoeial Requirements (IP/BP/USP) for penetrability testing

Features

  • Microprocessor-based control system for highly stable and accurate test results

  • High-precision load cell to detect minor force variations during needle entry

  • Smooth motorized drive for uniform penetration test conditions

  • Digital display showing real-time penetration force

  • Peak Hold, Tare, and Auto Zero functions

  • Strong, adjustable fixture suitable for different stopper sizes and designs

  • Overload and over-travel safety protection

  • Rugged, powder-coated MS body suitable for long-term laboratory use

  • Low-noise gear motor and screw-driven mechanism

  • Maintenance-friendly design

Optional Accessories

  • Computerized version with software

  • Variable Speed Drive (10–300 mm/min)

  • Customized fixtures for special vial/stopper designs

  • ISO-traceable calibration kit

  • Needle adapter kit for multiple gauge sizes

Computerized Model Software (Optional)

  • Real-time force vs time or force vs displacement graph

  • Auto detection of initial penetration point

  • Pass/Fail criteria based on set limits

  • Batch testing and trend analysis

  • Automatic report generation in PDF/Excel

  • Secure data storage and export

  • Email report facility through PC

  • RS-232 communication compatibility

Specification

Parameter

Specification

Load Cell Capacity

20 Kgf (customizable up to 50 Kgf)

Accuracy

±0.5% of full scale

Display

Digital LED Display with Computer Connectivity

Test Speed

10–300 mm/min variable speed

Travel Length

300 mm

Least Count / Resolution

0.001 Kgf

Test Fixture

Universal needle penetration fixture

Load Units

Kgf

Power Supply

220V AC, Single Phase, 50 Hz

Dimensions

550 × 450 × 1100 mm

Data Output

RS-232 / USB (PC compatible)
