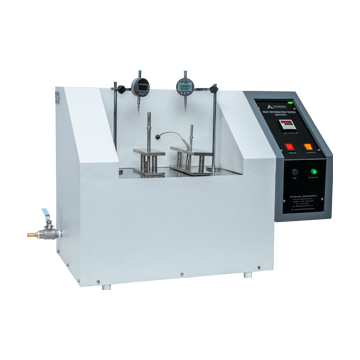

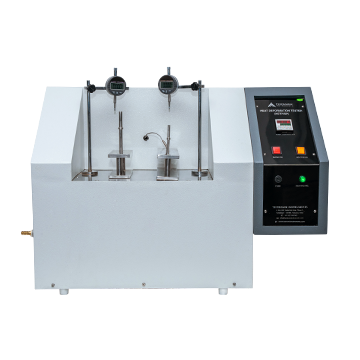

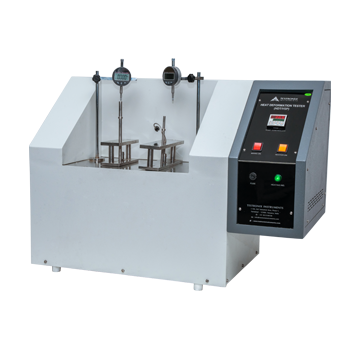

Heat Deformation - HDT/VSP Tester
Heat Deformation - HDT/VSP Tester1
Heat Deformation - HDT/VSP Tester2
Heat Deformation - HDT/VSP Tester3

Heat Deformation - HDT/VSP Tester

Model No: TX-HDT 120
Brand: Testronix Instruments

Description

Heat Deformation – HDT/VSP Tester is a consistent tool useful for determining the ability of a given polymer to bear load at elevated temperatures. Accurate and reliable deflection or deformation is important component in plastics industry. Heat Deformation
HDT/VSP Tester is designed as per standards IS 2530-1963,
ISO 75-1(2004)-E, ASTM D648-01, ASTM D1525-00.
• Equipped with 2 stations to measure Deflection temperature and
Vicat Softening temperature
• Precise measurement through Digital Dial Gauge
• Used for testing with both water and silicone oil
• Advanced Digital Microprocessor PID based temperature
controller
• Inbuilt Auto tuning function
• Highly accurate test results under uniform temperatures in the
chamber
• Setting to RTD PT-100 sensor through advanced PID controller
• High Quality rugged structure with corrosion resistant main body
• Digital Dial gauge to measure the deflection in test samples
• Fast Guiding Mechanism with plunger rod
• Single handed hassle free operation with test start operation
• Stirrer Motor for Precise stirring of sample inside the tank &
for Uniformity of Temperature

Features

Specification

  • Diameter of Indenter t ip (VSP) --1mm circ ular (Flat ended needle)
  • Temperature Controller range-- Upto 250ºC
  • Rate of Heating --120±10ºC/hr .
  • 50±5ºC/hr.
  • Weights-- 5 Kg (2 nos)
  • Dial Gauge Range-- upto 10 mm
  • Resolution/Least Count-- 0.001 mm
  • Wet Heater --1 Kw X 2
  • Power -- 220V, 50Hz, Single Phase
  • Diameter of indenter tip (
    HDT)  --13 MM (
    Approx)
  • Temp. Range with Silicon Oil -- Ambient to 250 C
  • Temp. Range with water --Ambient to 90 C
  • Motor Capacity --1/70HP 1350rpm
  • Motor Type -- Stirrer Motor

Highlights :
Digital Dia l Gauge -- 2
No. of test stations -- 2 (HDT/USP)
T esting Medium -- Water or Silicone O il
Material --Mild Steel(Outer Body)
Stainless Steel(Inner Body)
Dial gauge stand  --2 - Inbuilt

How Heat Deformation - HDT/VSP Tester Works?

View this video to learn how this product works
