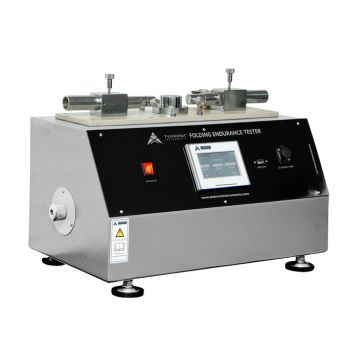

Folding Endurance Tester
Folding Endurance Tester1

Folding Endurance Tester

Model No: TX FET 100
Brand: Testronix Instruments

The Testronix Folding Endurance Tester (Schopper Type) is an advanced instrument designed to evaluate the folding endurance of paper, foil, and film materials up to 0.25 mm thickness. By subjecting a specimen to repeated double folds under controlled tension until rupture, it provides highly accurate results on the durability and mechanical strength of materials.

Description

This equipment is widely used in industries where material reliability is crucial, such as paper manufacturing, flexible packaging, foil conversion, and security paper production. Its robust construction and intelligent control interface ensure consistent and repeatable results that comply with international testing standards.

IS 1060 (Part 1) - 1966 : Methods of Sampling and Test for Paper and Allied Products

Applications

  • Paper Industry: For testing the strength and durability of different grades of paper.
  • Foil & Film Manufacturers: Essential for evaluating flexible laminates and thin plastic films.
  • Security Papers: Widely used in testing banknotes, passports, stamps, and other documents requiring high folding endurance.

Research & Development: Valuable tool for material R&D labs to assess durability and performance.

Features

  • Consistent Test Conditions – Uniform load application & controlled fold speed ensure repeatability.
  • Durable Construction – Built with powder-coated mild steel for long service life.
  • Precision Counter – Five-digit digital counter with auto-stop on specimen failure.
  • Easy Sample Preparation – Integrated cutter for accurate strip sizing.
  • Wide Industry Use – Suitable for paper, films, foils, and security documents.
  • Accurate Quality Assessment: Ensures precise folding endurance evaluation for durability assurance.
  • User-Friendly Operation: Touch screen interface with intuitive controls.
  • Reliable & Repeatable Results: Consistency in folding speed and load distribution.
  • Versatility: Supports multiple materials including paper, foil, and flexible films.

Specification

  • Standard Compliance: IS 1060; Part 6: Sec 3
  • Material Thickness: Up to 0.25 mm
  • Stroke Length: 20 mm
  • Counter: Five-digit digital counter (0–99,999 folds) with hold & zero reset
  • Sample Cutter: Integrated cutter for precise preparation of test strips
  • Construction: Heavy-duty mild steel, powder-coated body
  • Load Application: Uniformly distributed load across the specimen
  • Power Supply: 220 V AC, 50 Hz, single phase
Frequency of double folds :90 to 120 per minute
Length of movement of blade: 20 mm
Thickness of slotted blade: 0.5 mm
Width of slot: 0.5 mm
Diameter of creasing rollers:  6.0 mm
Motor: ¼ HP single-phase 230 volts AC
Tension on test specimen: Not less than 770 g when the clamps are 90 mm
