Environmental Test chamber/ Thermal Shock Chamber

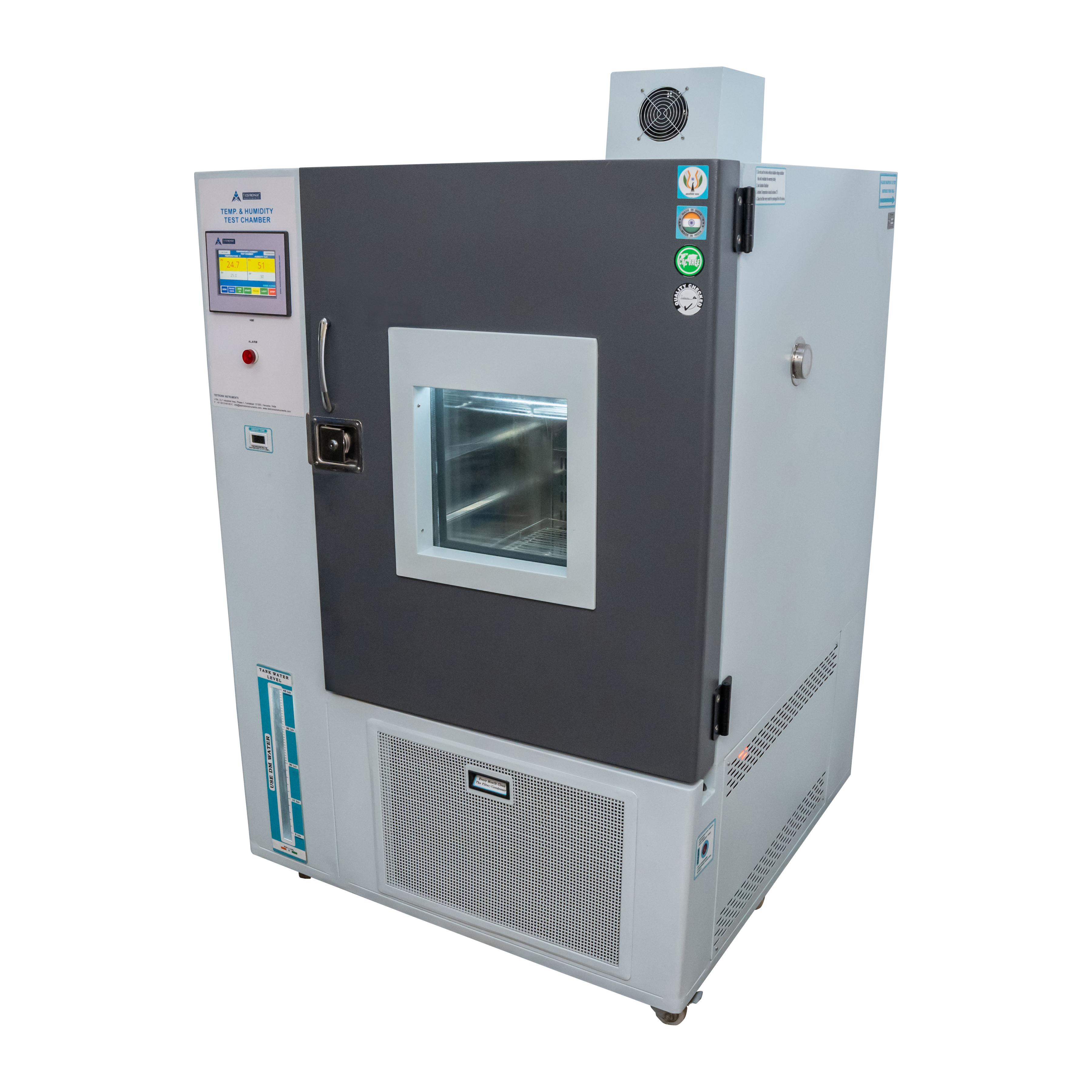

Environmental Test chamber/ Thermal Shock Chamber1

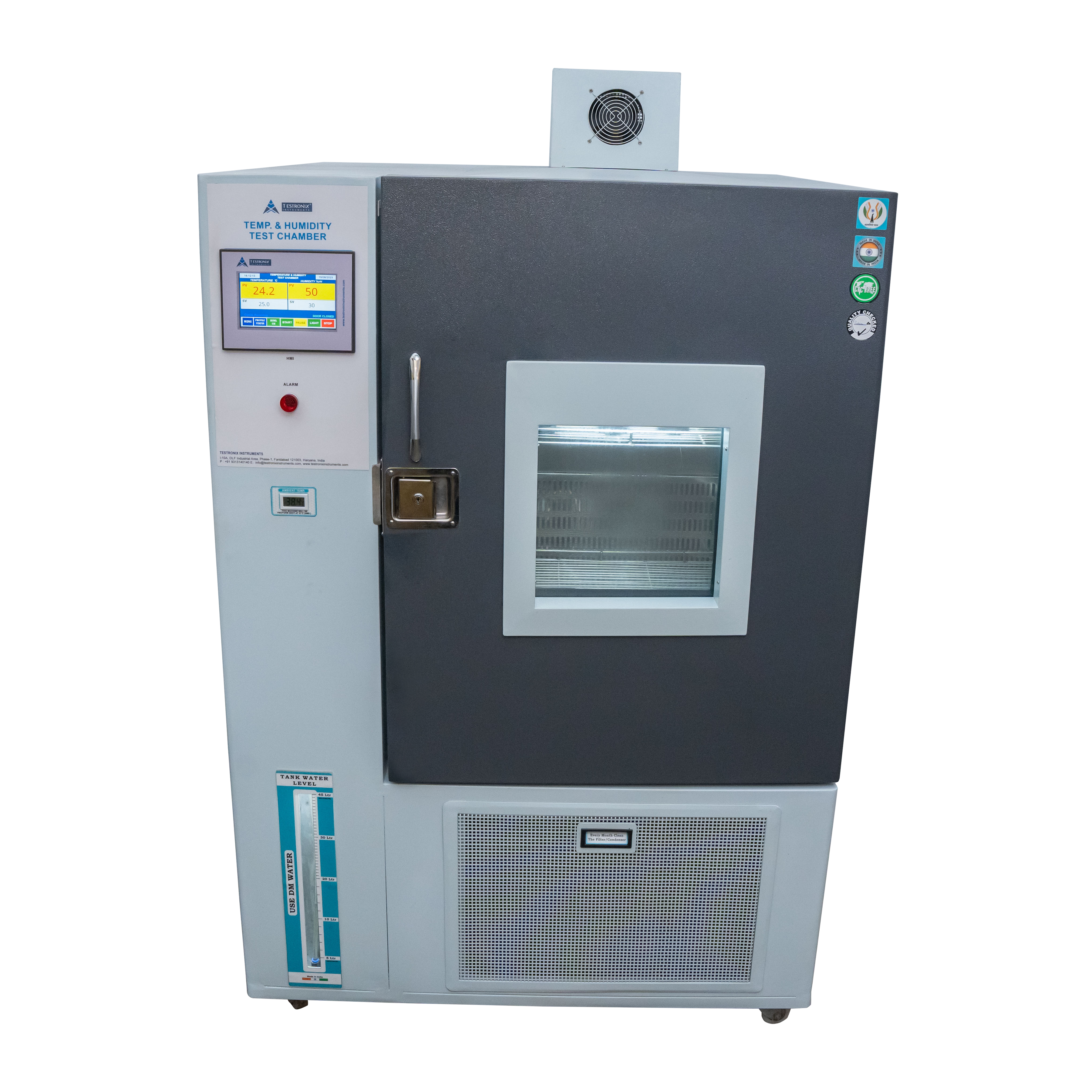

Environmental Test chamber/ Thermal Shock Chamber2

Environmental Test chamber/ Thermal Shock Chamber

Model No: TX - EC 100
Brand: Testronix Instruments

Description

Environmental Test chamber/ Thermal Shock Chamber is a unique instrument & most frequently used testing machines. It has applications in various segments and usage varies from material to material.



Once a sample is placed inside the chamber the reaction and changes in the sample properties are observed before and after the test. Accordingly the manufactures improve the quality of the sample depending upon the test results
The Environmental Test chamber/ Thermal Shock Chamber provides an extreme temprature to which the materials might be exposed to in industrial environment



To ensure durability of the products developed by the manufacturers, Environmental Test chamber/ Thermal Shock Chamber is a must. This instrument is easy to use and can be customized as per the requirement of the user. The instrument has a Touch screen display which helps the user in setting the test parameters easily.
The chamber would be constructed in Stainless Steel inside & powder coated Mild Steel outside.

Features

  • Temperature required : -10 to 180 C (-20,-40,-60 & -80 also available on Request)
  • Size : 200 Litres
  • Timer : A timer would be provided upto 999 hours for auto cut off
  • Safety features would be incorporated to ensure that the temperature does not rise beyond 180 Deg C.
  • Touch screen HMI Based Display of parameters with data logging available.
  • Compact size with castor wheels to move the chamber in the laboratory.



Features of Touch screen controller:

  • Microprocessor based model with auto tuning feature
  • Run time vs temperature graph on screen
  • Data recording with temperature data reading
  • USB and pen drive option available to extra data easily
  • Option available to set PV and SV value
  • Knox system integrated for data security
  • User settings can be locked by admin panel protected by password
  • User can control PID settings through Advanced setting In built Alarm system

Specification

Capacity 200 litres
Display Touch Screen HMI based
Accuracy Temp. ± 3ºC / Humidity ± 5%
Least Count/Resolution Temp 0.1ºC / 1%
Temperature Range -10ºC to 180ºC
Humidity Range upto to 95%RH
Timer 999Hr



Additional Specifications:

No. of Sample racks

 2
Handle Yes

Wet Heater

 1 Kw, 1 no.
Temperature Sensor 1 (PT-100)
Movement Castor Wheels
Material Mild Steel (Outer Body) Stainless Steel(Inner Body
Finish Powder coated Havel Gray & white combination finish and bright chrome / zinc plating for corrosion resistant finish



How Environmental Test chamber/ Thermal Shock Chamber Works?

View this video to learn how this product works
