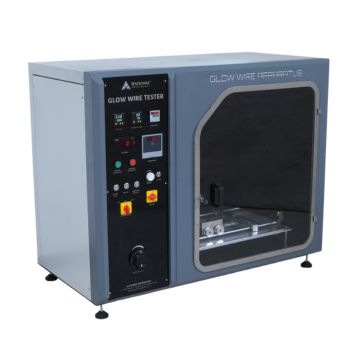

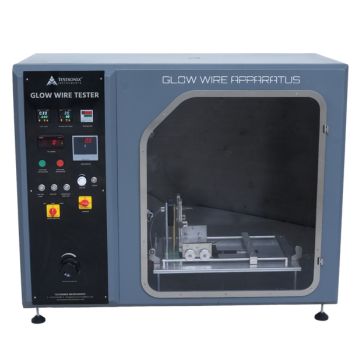

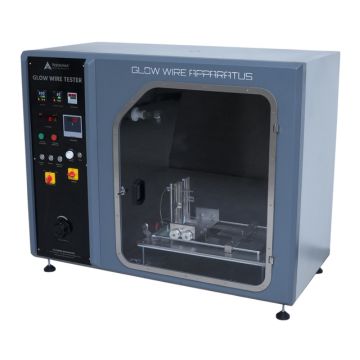

The Glow Wire Test Apparatus simulates thermal stress on materials due to glowing elements (like heating filaments or short circuits). It measures ignition resistance by applying a heated wire at 960°C to the test sample. This version includes full automation with speed-controlled trolley, force loading, and programmable time display.
|
Parameter |
Specification |
|
Enclosure Size |
870 mm × 870 mm × 950 mm |
|
Diameter |
4.0mm (Tolerance 0.04mm) |
|
Temperature Range |
Ambient to 960°C |
|
Thermocouple Type |
NiCrNi Type K, Ø1.0 mm |
|
Temperature feedback |
Embedded Thermocouple (0.5mm,type K) |
|
Sensor |
0.5 mm high-sensitivity |
|
Testing Setup |
Sample Pressed against the wire; tissue paper underneath to detect drips/ignition |
|
Applied Force |
1.0N (Tolerance 0.2N) |
|
Trolley Speed |
25 mm/sec (programmable) |
|
Tissue Paper Tray |
Positioned 200mm below sample to detect flaming droplets (as per IEC Standards) |
|
Holding Duration |
30seconds |
|
Display Time |
Digital (0–99.9 seconds) |
|
Current Source |
Up to 230 V AC, 50 Hz |
|
Load Weight |
1 Newton (maintaining contact pressure) |
|
Cabinet Finish |
Mild Steel Powder Coated |
