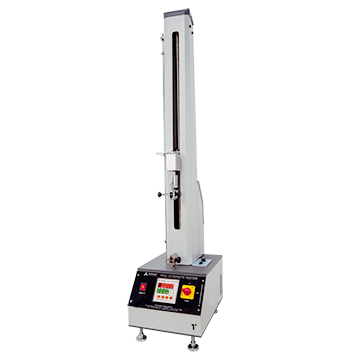

Ampoule Break Force & Penetrability Tester

This high-accuracy tester ensures compliance with stringent pharmaceutical packing standards by delivering repeatable, traceable, and objective test results for quality control laboratories.

The instrument operates through a high-precision load cell coupled with a controlled-speed drive mechanism. The ampoule is held in a rugged, adjustable fixture, while a steadily increasing force is applied until the ampoule neck breaks. During penetrability testing, the needle is driven into the ampoule closure at a defined speed, and the instrument records the force required for smooth penetration.

The computerized model offers advanced graphical reporting, real-time data acquisition, and exportable testing records. It seamlessly connects with a PC, enabling trend analysis, batch-wise reporting, and integration with LIMS systems.

This machine is ideal for pharmaceutical manufacturers, QC labs, packaging development teams, and regulatory compliance testing.

Applications:

Tests Performed on One Instrument

•    Ampoule Break Force Test
•    Needle Penetrability Test
•    Mechanical strength analysis of small glass containers
•    Material validation for ampoule forming machines

Standards Compliance

•    ISO 9187
•    ISO 13926
•    Pharmacopoeia Requirements (IP/BP/USP for break force & penetrability)
